BLL Wood Chip Moisture Meter with Insertion Probe

BLL Wood Chip Moisture Meter
Click images to enlarge.
Measuring Range: 10 - 50% MC

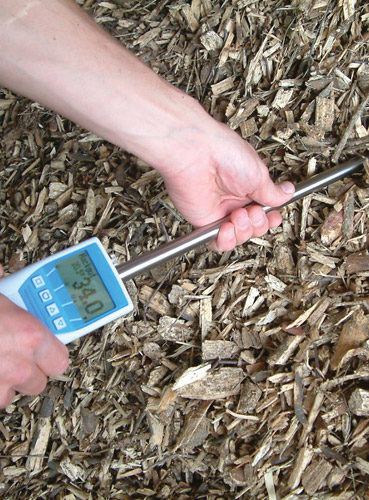

Accurately measure the moisture content in Wood Chips with our BLL meter. One meter long insertion probe for easy measurement in deep piles of chips. The BLL is supplied with three (3) separate calibration curves, depending upon the physical makeup of the wood chips to measured. There are defined into the following classes as described in the European Standards as; Wood Chips, Coarse WC and Industry WC.

Wood Chips
A mix of different-sized wood chips
all LESS THAN 70 mm (2-3/4")

Coarse WC
Equal-sized wood chips approx. 70 mm (2-3/4")

Industry WC
A mix of different-sized wood chips
all LARGER THAN 70 mm (2-3/4")

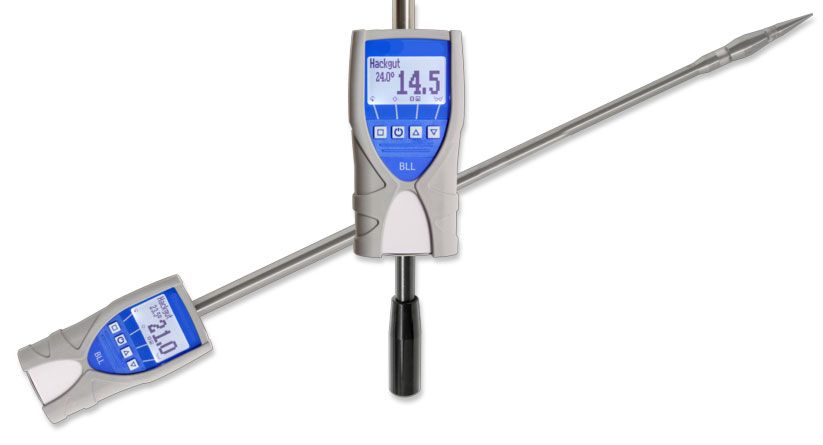

BLL Wood Chip Moisture Meter

Features

  • Directly mounted 1 meter long insertion probe
  • Conversion of wood moisture into water content
  • Automatic averaging
  • Sample temperature measurement
  • Automatic temperature compensation
  • Temperature can be set to °C or °F as required
  • Measurement within seconds without prior treatment of samples
  • Hold function, manual saving of results, data log for 10,000 logs within measuring point report
  • Supplier's data can be recorded
  • Large, well-lit LC display
  • BLL-USB is supplied with USB output including software and data transfer cable
  • 2 Year Warranty
  • Gauge menus in English, German, French, Italian, Spanish and Russian
  • Supplied in custom fitted wood carrying case

Related Products

Click image for more info
Wireless Data Transmission Kit for Moisture Meters
Click image for more info
- Take measurement in seconds without prior treatment of samples
BP1 Wood Pellet Moisture Meter
Click image for more info
BP1
Pellet Moisture Meter
- Automatic temperature compensation

Specifications

Measuring range up to 50% water content depending on material
Resolution0.5% water content (0.5 °C or °F)
Accuracy ± 3%
Measurement TechniqueResistance, Click for more info
Temperature Range for determination water content0° - 40° C
Temperature Measurement Range-10°C to + 80°C
Length of insertion probe1 meter
Menu languagesEnglish, German, French, Italian, Spanish and Russian
HousingPlastic with IP40 rating
Data logger10,000 moisture measurements plus date, batch & temperature
Data Interface
(BLL-232 only)
RS-232, 9600/8/N/1
(supplied with transfer cable & USB converter)
DisplayGraphic LCD display with backlight (128 x 64 pixel)
Temp CompensationAutomatic in °C or °F using built-in temperature probe
Power4 x 1.5 Volt AA Alkaline batteries
Battery Life900 measurements
(with auto-off after 6 minutes of non-use)
Shipping Dimensions6" x 6" x 48"
MC% MethodWet Basis (http://tinyurl.com/qayqvqe)

Complete Kit

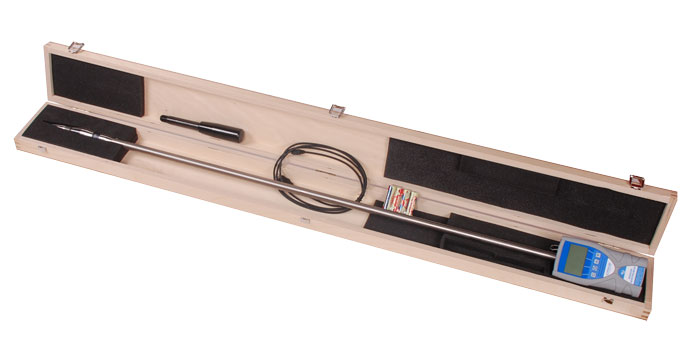

The BLL is supplied as a complete kit including the meter with rubber protective shell and integrated insertion probe, handle extension, AA batteries and instruction manual in a fitted wood carrying case. BLL-USB also includes data transfer software and USB cable.

BLL Wood Chip Moisture Meter is supplied in wooden case

Downloads

Buy Now

Item Description Price
BLL Moisture Meter for Wood Chips supplied in Wooden Carrying Case with Handle
$1,195.00
BLL Moisture Meter for Peat/Turf supplied in Wooden Carrying Case with Handle
$1,395.00
BLL Moisture Meter with Insertion Probe in Carrying Case with memory and USB output. Includes software.
$1,695.00
BLL Moisture Meter for Peat/Turf supplied in Wooden Carrying Case with Handle, with USB output, includes free software.
$1,895.00
Accessories
Bluetooth Transmitter & USB Receiver
$299.00
HM-11733
Battery Powered Thermal Printer
$495.00
Test block for BLL, FL1, FL2, BLW, SLW and BLO Moisture Meters
$149.00
BLL-EXT-1M
1 Meter in-line extension for BLL Insertion Probe
$595.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
