BL2 Universal Biomass Moisture Meter

Click images to enlarge.
The BL2 Universal Biomass Moisture Meter is specifically-designed for users who require a portable moisture meter to cover a wide range of biomass applications. It is supplied with both the insertion probe for wood chips, wood pellets and sawdust as well as the hammer Probe with short and long pins for measurement on round timber, split logs and hay and straw bales.

The BL2 is supplied with several calibration curves that are automatically activated when a specific probe is connected. If more than one calibration is offered for the connected probe, it can be user-selected using the menu system. Measuring results are displayed instantly and are temperature compensated.

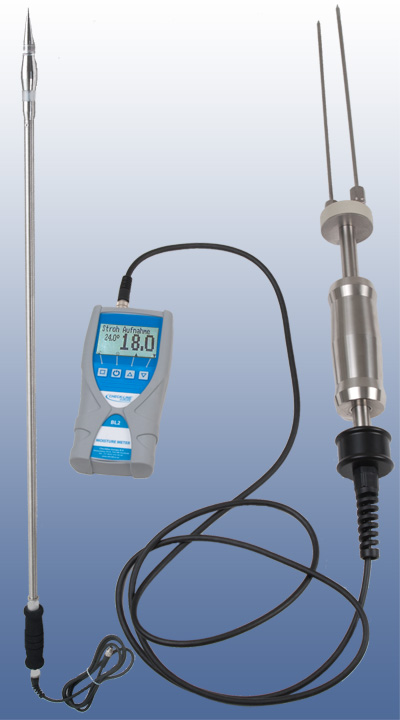

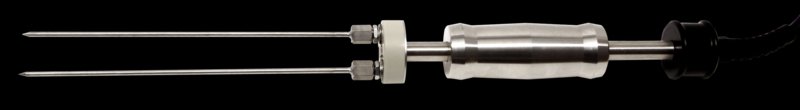

The image on the left shows the gauge with the hammer probe with the 255mm Hay & Straw Pins attached. When this probe fitted with the nails it can be used for round wood and split logs.

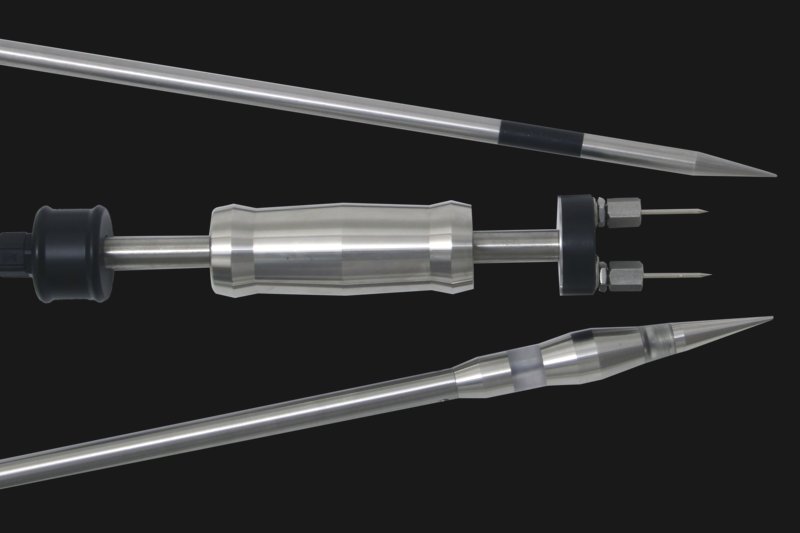

The picture below details the Insertion Probe for measurement of Wood Chips, Wood Pellets and Saw Dust.

The BL2 can also be supplied with an USB interface (BL2-USB-KIT) and is supplied with USB cable and Software.

Features

  • Automatic temperature compensation (set to °C or °F as required)
  • Measurement within seconds without prior treatment of samples
  • Hold function, manual storage of data values with capacity of 10,000 values
  • Large, back-lit LCD display with Automatic averaging
  • BL2-KIT-USB is supplied with USB output including PC software and data transfer cable
  • 2 Year Warranty
  • Gauge menus in English, German, French, Italian, Spanish and Russian
  • Supplied in custom fitted wood carrying case

Related Products

Wood Chip Moisture Meter
Click image for more info
BLL
Wood Chip Moisture Meter with Insertion Probe
- Directly mounted 1 meter long insertion probe
BLW Log and Timber Moisture Meter
Click image for more info
BLW
Timber Moisture Meter
- High measuring range to 60% water content represents 150% wood moisture
Click image for more info
Hay and Straw (and Miscantus) Moisture Meter
- Directly mounted insertion probe

Complete Kit

- BL2 or BL2-USB Gauge
- Wood chip Insertion Probe
- Hammer Probe
- Spare 40mm & 60mm nails (10 pcs each)
- 255mm Hay and Straw Pins (2 pcs)
- 4 AA Batteries
- Wooden foam fitted case
- USB Cable and Software (BL2-USB Kit Only!)

Specifications

Resolution0.1% water content
Measuring rangeup to 60% water content depending on material and probe type
Calibration Accuracy±2.5 %
Material Temperature Range0° - 40° C (104°F)
Temperature Limits-10°C to 80°C (14°F to 176°F)
Menu languagesEnglish, German, French, Italian, Spanish and Russian
Housing MaterialPlastic with rubber protection cover, IP40 rating
Data logger10,000 moisture measurements plus date, batch & temperature
Data Interface (BL2-USB only)USB (supplied with data transfer cable & software)
Displaybacklight Graphic LCD (128 x 64 pixel)
Battery Type4 x 1.5 Volt AA Alkaline batteries
Battery Life900 measurements (with auto-off after 6 minutes of non-use)
Weight6.4 Kg (Kit in Wooden case)
Dimensions121 x 17.5 x 8cm (LxWxH)
47.6" x 6.9" x 3.1" (LxWxH)
Warranty2 Years
MC% MethodWet Basis (http://tinyurl.com/qayqvqe)

Downloads

Buy Now

Item Description Price
BL2 Universal Biomass Moisture Meter Kit (in wood box) with Hammer Probe & Insertion Probe
$1,995.00
BL2-USB Universal Biomass Moisture Meter Kit (in wood box) with Hammer Probe & Insertion Probe, supplied with software and data transfer cable
$2,595.00
Accessories
BL2-IP
BL2 insertion probe for wood chips, 1 meter length
$450.00
BM-PRINTER
Portable Battery-Powered Thermal Printer
$495.00
HM-BTM
Plug-In Bluetooth Module for models with USB Output
$495.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
