BTM-TTC Belt Tension Meter

Made in Germany
Click images to enlarge.

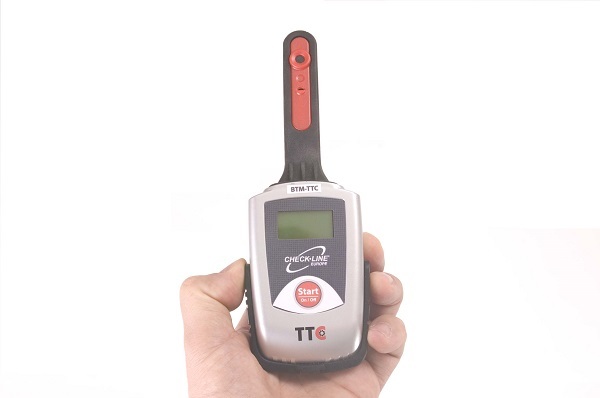

The CHECK-LINE® BTM-TTC accurately measures the oscillation frequency of flat, V and ribbed belts of rubber, leather, fabric and composite materials by measuring the natural frequency (Hz). The tool operates by using a very sensitive microphone that analyses the resonance frequency. The small dimensions and the ease in use make BTM-TTC a practical and reliable tool.

Features

  • Belt Tension Is measured in Hz units (frequency)
  • If tension measurement in Newtons or Lbs units is required, refer to BTM-400PLUS webpage
  • It is entirely wireless and self-powered by rechargeable batteries
  • It requires no additional tools as it displays the test results directly on its graphic display
  • Battery charger supplied as standard
  • It emits a beep once the measurement is complete

Related Products

Click image for more info
Belt Tension Meter (Trummeter)
- Readings unaffected by nearby magnetic fields or noise
- Displays tension in newtons (N) or pounds force (lbf) or natural frequency in Hertz (Hz) - selectable

Complete Kit

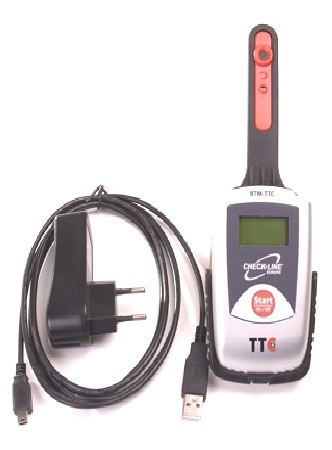

The BTM-TTC is supplied as a complete kit, including:
- BTM-TTC belt tension meter
- USB charging cable
- Battery charger
- Instruction manual

Downloads

Specifications

Measuring Range50-250 Hz
DisplayBacklit LCD
Internal battery3.7 V 1000 ma/h li-io
Rechargefrom USB port, max consumption 470 mA
Range6 hours of continuous operation
Resolution3 Hz
Accuracy± 1.5 Hz
Operating temperature-10 °C to +40 °C
Stocking temperature-20 °C to +60 °C
Temperature with battery under charge0 °C to +45 °C
Storage and operation moisture10% to 80% without condensation
Dimensions202.7 x 70.6 x 31.3 mm
Weight0.3 kg
Warranty1 year

Buy Now

Item Description Price
Belt Tension Meter, 50-250 Hz, RECOMMENDED REPLACEMENT BTM-400PLUS
$
Accessories
BTMCAL
Traceable Calibration Certificate with data
$100.00
BTM-TFS
Reference Tuning Fork set, 128 and 256hz, without certification
$75.00
