30 - 12,500 RPM/FPM

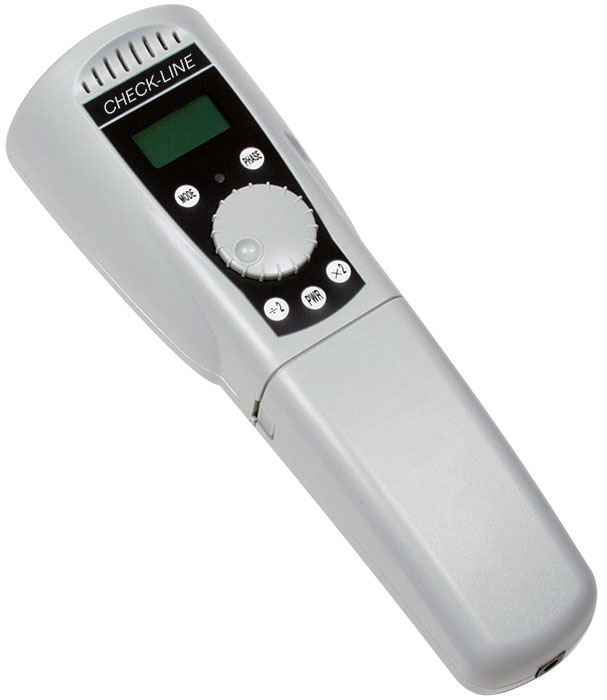

The DT-900 Portable Strobe is designed for non-contact RPM measurements and inspecting moving parts by "freezing" or "slowing down" the action. Requiring only one hand to operate, yet delivers performance comparable to much larger and heavier "pistol-grip" type models.
The DT-900 is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value - at a reasonable price.
The DT-900 Techstrobe series is offered in various configurations to fit the exact needs of the user. Models include DT-900-U, DT-900-TR , DT-900-UT, DT-900-PR and DT-900-UP. Refer to the BUY NOW section below for complete details and prices.
Also known as SKF TMRS and SMS-400B
NSN 6220-01-572-0758 (DT-900)
- Easy to use with just one hand.
- The changeable NiMH battery powers the stroboscope 1-2,5 hours.
- "LOW BAT"appears in the display if the energy becomes less.
- NIST-Traceable calibration certificate & test report optionally available
- Resolution of 0.1 Flashes per minute.
- Universal Battery Charger is supplied on "-U", "-UT" and "-UP" versions for use anywhere Worldwide on 100-265 VAC
|Flash Range||30 - 12,500 fpm|
|Operation modes||Flashes with internal trigger|
Flashes with external trigger Tachometer
|Display||8 digits, 15 mm high|
|Flashtube||Xenon 10 W / white 6500 K|
|Flash Duration||10 - 15 µs / approx. 400 lux|
|Flash life||100 mill. flashes|
|Phase Adjustment||5° per increment|
|Input signal||0.25 - 983.3 Hz|
|Output signal||0.667 - 108.333 Hz|
|External trigger||5 V TTL Signal|
|Power||100-240 V DC quick-change battery|
|Tripod mounting||1/4 - 20unc, length 8 mm|
|Weight||1.4lb (620 g)|
|Temperature range||50 - 95 °F (10 - 35 °C)|
|Dimensions||9.6" x 2.6" x 3.1" (24.5 cm x 6.5 cm x 8 cm)|
|Country of Origin||Canada|
Strobe with (1) battery and Universal battery charger. WITHOUT carrying case
Strobe with (1) battery and Universal battery charger. WITH carrying case
Strobe Kit with (1) battery, (1) spare flash tube, holster & Universal battery charger in carrying case
Strobe kit with (2) batteries, (1) spare flashtube, holster & Universal battery charger in carrying case
DT-900-TR is no longer available, Purchase DT-900-UT
DT-900-PR is no longer available, Purchase DT-900-UP
Spare battery for DT-900
Spare battery for DT-900 (New with slight cosmetic blemishes)
Spare Flash Tube for DT-900 - FLASHTUBE900, FT-900, SMS-908, SMS-400B
Universal Battery Charger for DT-900 100-240V - CH-900 - Please contact us for pricing and availability.
Spare Carrying Case for DT-900
