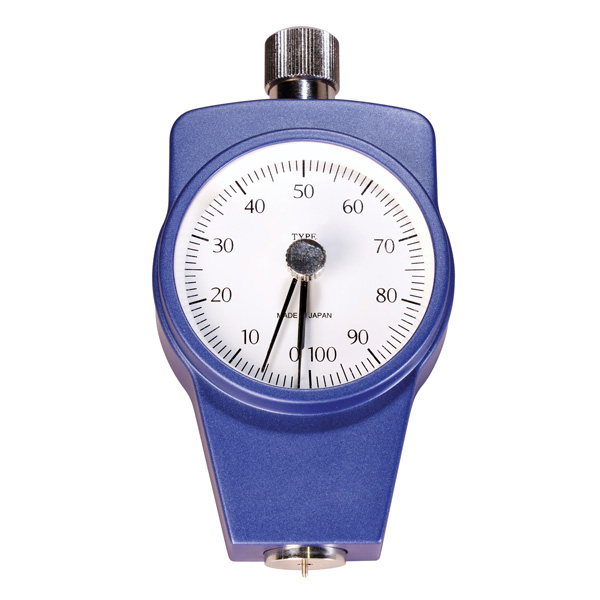

E2 Durometer / Hardness Tester

E2 Druometer
Click images to enlarge.
E2 durometers now feature an environmentally friendly magnesium alloy housing. E2 durometers are quick and easy to operate with a high degree of repeatability. Optional peak indicators are available on each model.

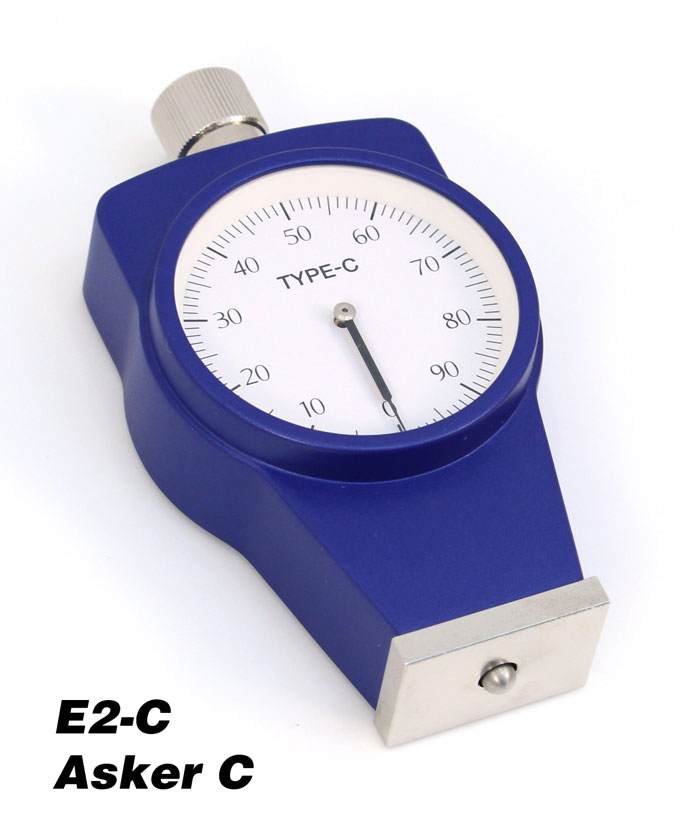

Hardness is an essential characteristic of rubber, elastomers and plastic products. Select the optimum durometer type based upon material hardness. E2 models are available in Durometer Types: Shore A, D, E and Asker C Hardness.

Features

  • Lightweight, durable, recyclable, magnesium-alloy case
  • Includes 3-Point Calibration certificate traceable to NIST
  • Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales

Durometer Selection

ModelScaleIndentorMaterialStandardMeasuring Force
E2-AShore AFlat pointNormal rubberASTM D-22401 kgf
E2-DShore DCone pointHard rubber & plasticASTM D-22405 kgf
E2-EShore EHemisphericalSoft rubberASTM D-22405 kgf
E2-CAsker CHemisphericalSoft rubberJIS K-73121 kgf

Operation

As the durometer is pressed against the sample, the material resistance force and indentor spring load balance. The depth of the indentor is measured, which provides a measure of the material’s hardness. Values are based upon a 100 point scale (accuracy ±1 point). However, as time elapses the indicator will "creep" back so that a reading taken a few seconds after the indentor makes contact with the sample will be less than the peak reading. Asker durometers offer a peak indicator as an option to more closely monitor the difference between peak and "creep".

E2 Druometer Operation

Specifications

Accuracy± 1 point

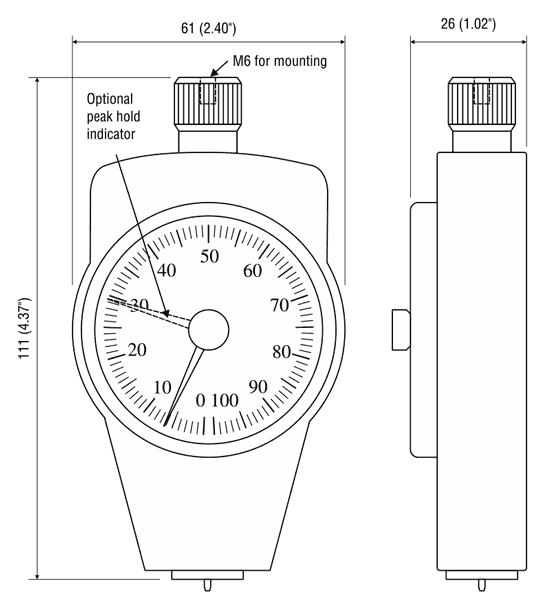

Dimensions

Complete Kit

All new durometer purchases include: durometer, hard plastic carrying case and 3-Point Calibration certificate traceable to NIST.

Related Products

e-1000 Durometer Constant Load Stand
Click image for more info
Durometer Constant Load Stand
- Provides accurate and repeatable measurements
- Eliminates operator error

Buy Now

Item Description Price
E2 Durometer Type Shore A, for normal rubber
$379.50
E2 Durometer Type Asker C, for soft rubber & sponge
$379.50
E2 Durometer Type Shore D, for hard rubber & plastics
$379.50
E2 Durometer Type Shore E, for soft rubber & sponge
$379.50
E2 Durometer Type Shore A with Peak Indicator, for normal rubber
$418.00
E2 Durometer Type Asker C with Peak Indicator, for soft rubber & sponge
$418.00
E2 Durometer Type Shore D with Peak Indicator, for hard rubber & plastics
$418.00
E2 Durometer Type Shore E with Peak Indicator, for soft rubber & sponge
$418.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
