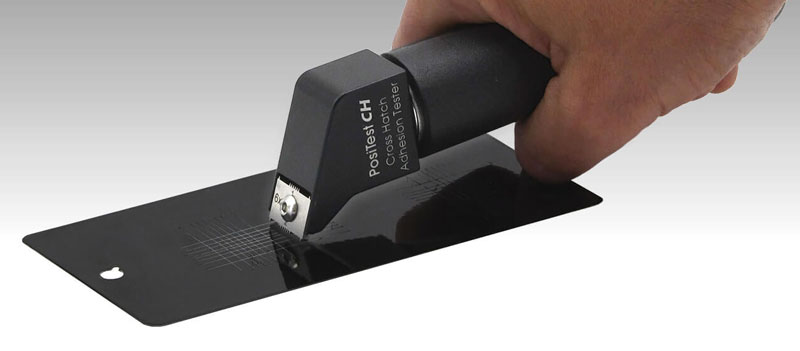

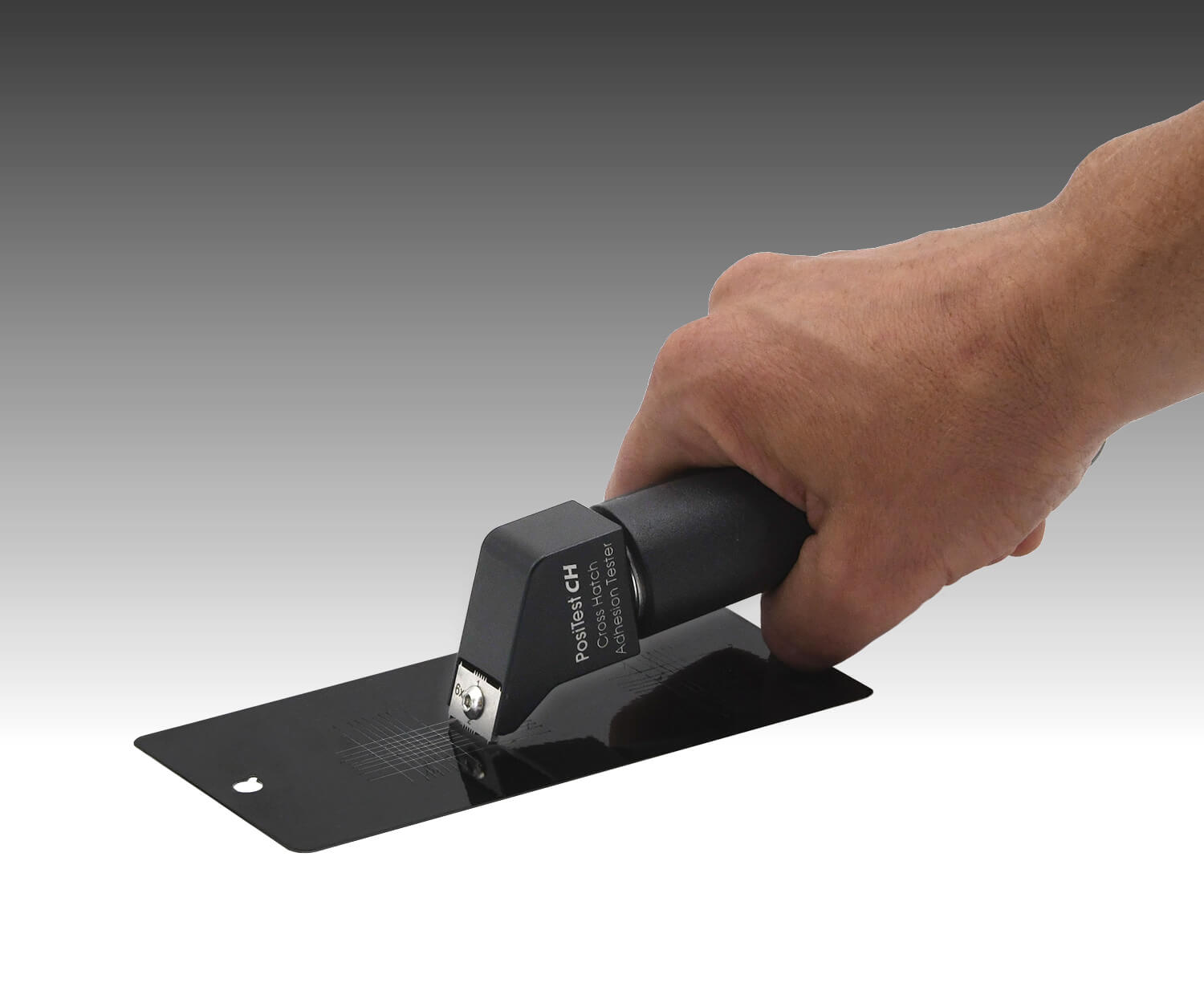

Determines a coating's ability to resist separation from a substrate when a lattice pattern is cut into the coating in accordance with ISO 2409 and ASTM D3359.
- Includes all tools and accessories required for cross hatch testing in accordance with ISO 2409 and ASTM D3359
- Ergonomic tool handle with non-slip grip provides comfortable all-day use
- Pivoting cutting head ensures proper positioning and equal pressure across the cutting surface

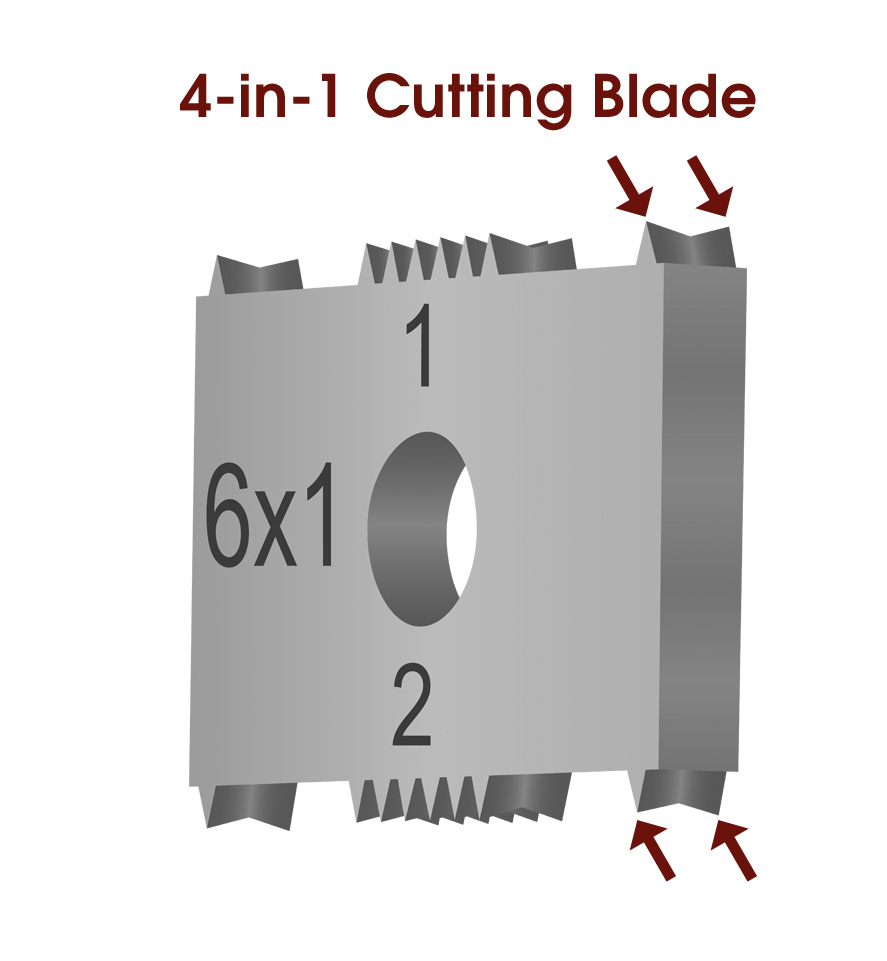

- Easy to replace, high-grade hardened steel blade with 4 cutting edges for longer testing
- Ideal for coatings up to 250 μm (10 mils) depending on blade and Standard
- Wide range of 4-in-1 cutting blades available for different Standards, coating thicknesses, and substrates. Tool is compatible with all DeFelsko cutting blades.
- Illuminated Magnifier available with 3x or 10x magnification depending on Standard
- Brush included to remove any detached flakes from the coating
- Choice of adhesive tape conforms to ISO 2409 or ASTM D3359
- Durable hard shell case keeps contents secure

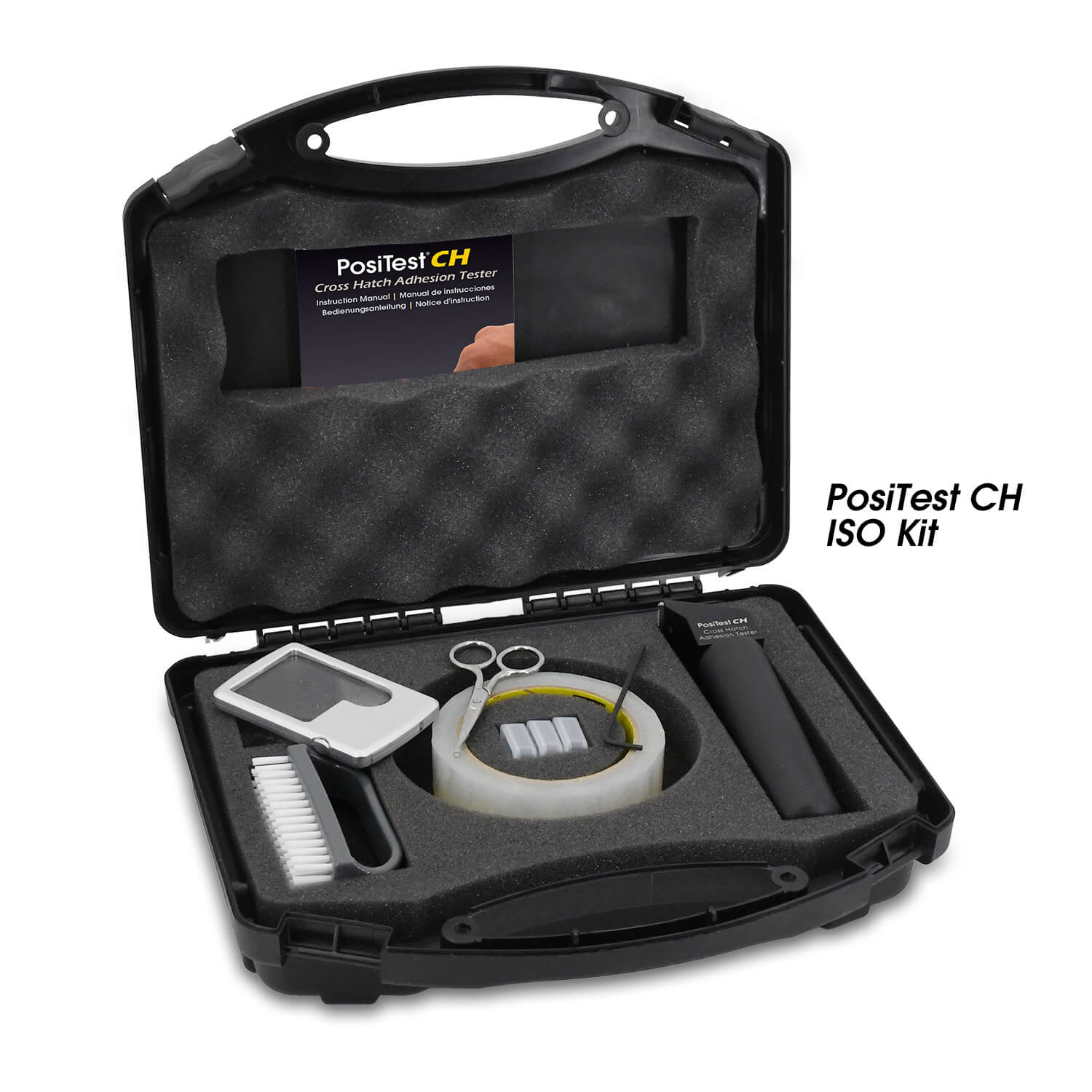

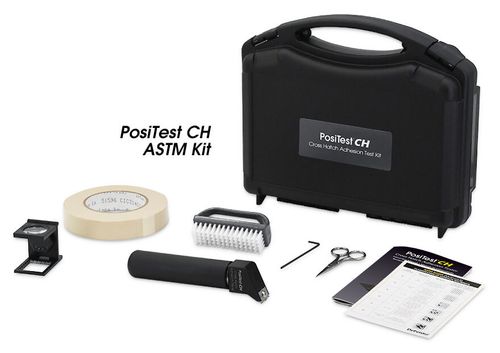

Kit Includes:

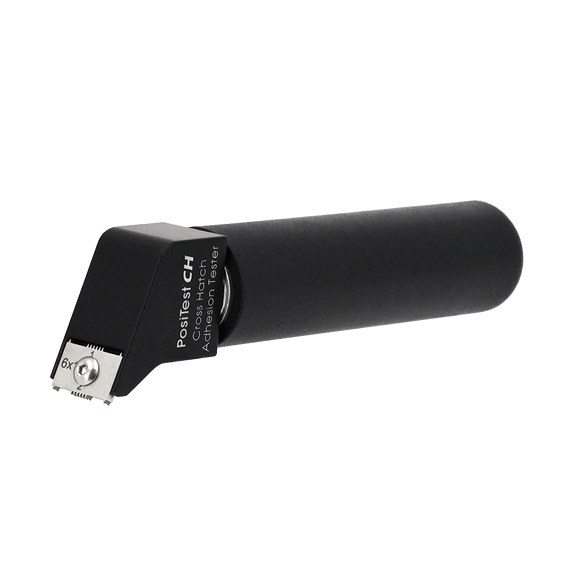

- Cross Hatch Tool
- Blade
- Magnifier (3X ISO or 10X ASTM)
- Brush
- Scissors
- 3/32" Hex Key
- ISO/ASTM Classification Reference Chart
- Instruction Manual
- Hard Shell
| Complies With | Coating Thickness (μm) | Coating Thickness (mils) | Specified Blade (Spacing # of Cuts) | PosiTest CH Cross Hatch Adhesion Tester Kit | Replacement Blades |
|---|---|---|---|---|---|
| ISO 2409 | 0 – 60 | 0 – 2.3 | 1 mm / 6 Teeth* | CHKITISO6X1 | CHBLADE6X1 |
| ISO 2409 | 61 – 120 | 2.4 – 4.7 | 2 mm / 6 Teeth | CHKITISO6X2 | CHBLADE6X2 |
| ISO 2409 | 121 – 250 | 4.7 – 9.8 | 3 mm / 6 Teeth | CHKITISO6X3 | CHBLADE6X3 |
| ASTM D3359 | 0 – 50 | 0 – 2 | 1 mm / 11 Teeth | CHKITASTM11X1 | CHBLADE11X1 |
| ASTM D3359 | 51 – 125 | 2 – 5 | 2 mm / 6 Teeth | CHKITASTM6X2 | CHBLADE6X2 |
* For soft substrates (e.g. wood and plaster), use 2 mm / 6 Teeth for coating thicknesses between 0 – 120 μm (0 – 4.7 mils)
| Item | Description | Price | ||
|---|---|---|---|---|
PosiTest CH Cross Hatch Adhesion Tester Kit | 1 mm / 6 Teeth | ISO 2409 | $325.00 | |||
PosiTest CH Cross Hatch Adhesion Tester Kit | 2 mm / 6 Teeth | ISO 2409 | $325.00 | |||
PosiTest CH Cross Hatch Adhesion Tester Kit | 3 mm / 6 Teeth | ISO 2409 | $325.00 | |||
PosiTest CH Cross Hatch Adhesion Tester Kit | 1 mm / 11 Teeth | ASTM D3359 | $325.00 | |||
PosiTest CH Cross Hatch Adhesion Tester Kit | 2 mm / 6 Teeth | ASTM D3359 | $325.00 | |||
| Accessories | ||||
CHBLADE6X1 | Blade 1 mm / 6 Teeth | $110.00 | ||
CHBLADE6X2 | Blade 2 mm / 6 Teeth | $110.00 | ||
CHBLADE6X3 | Blade 3 mm / 6 Teeth | $110.00 | ||
CHBLADE11X1 | Blade 1 mm / 11 Teeth | $110.00 | ||
