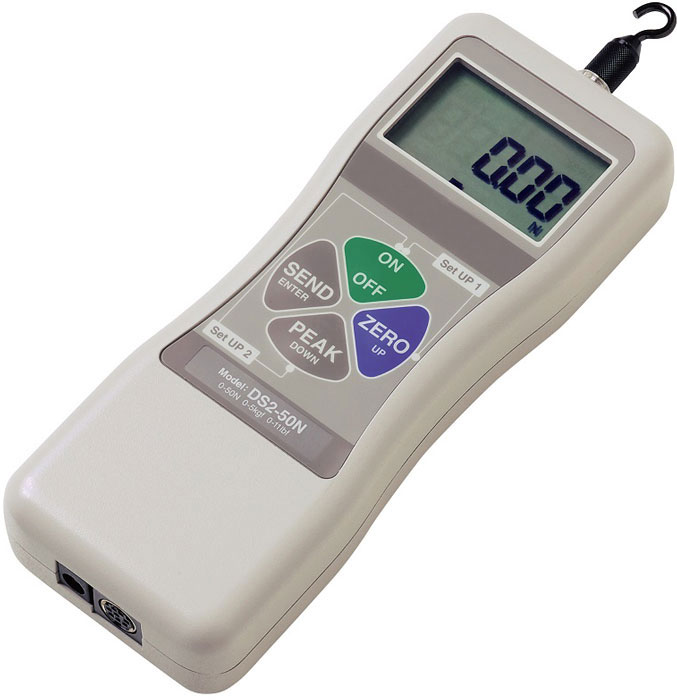

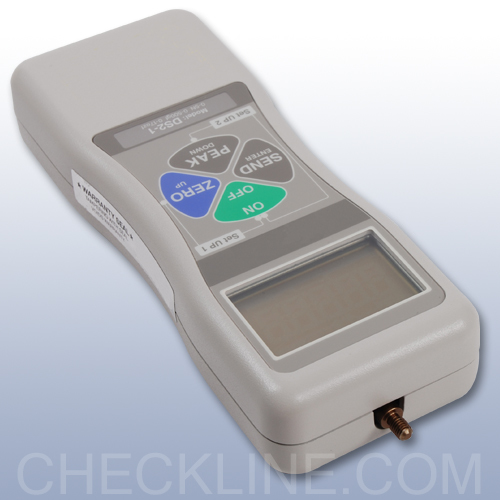

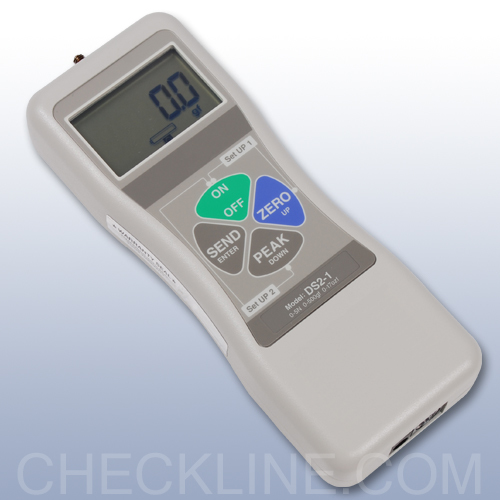

DS2 Digital Force Gauge

7 Ranges up to 220lbs
Measures Push / Pull Force

The new DS2 digital force gauges feature a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments.

When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you.

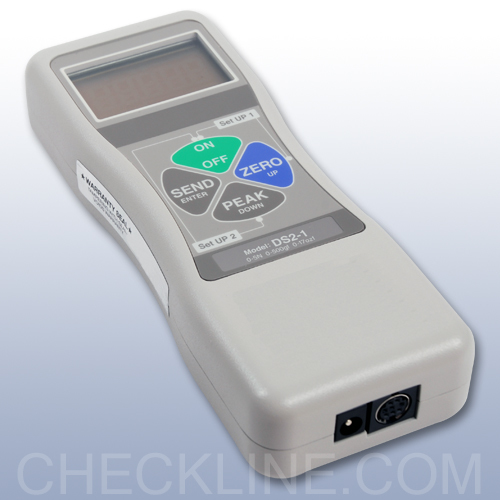

If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and ±1VDC analog) enable you to acquire data for permanent record.

All DS2 gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available.

force gauge handleOptional Handle DOH-1

Features

  • Real time and peak mode (selectable)
  • RS-232C, Digimatic and analog outputs
  • 2 Year Warranty
  • lb, kg, and Newton units are push-button selectable
  • Ergonomic, heavy-duty metal construction
  • Overload alarm, low battery display indicator
  • Runs on internal NI-MH batteries or AC adapter
  • Overload capacity 200% F.S.
  • Supplied with NIST-Traceable Calibration certificate
  • Programmable High/Low setpoints with LCD indicators
  • User selectable sampling rate, 30 or 1000 per/second (Hertz)
  • Reversible Display
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

Force Ranges

ModelCapacityResolution
DS2-0.47.00 oz
200 g
2.000 N
0.01 oz
0.1 g
0.001 N
DS2-118.00 oz
500 g
5.000 N
0.01 oz
0.1 g
0.001 N
DS2-44.400 lb
2.000 KG
20.00 N
0.001 lb
0.001 Kg
0.01 N
DS2-1111.00 lb
5.000 Kg
50.00 N
0.01 lb
0.001 kg
0.01 N
DS2-4444.00 lb
20.00 Kg
200.0 N
0.01 lb
0.01 kg
0.1 N
DS2-110110.0 lb
50.00 Kg
500.0 N
0.1 lb
0.01 kg
0.1 N
DS2-220220.0 lb
100.0 Kg
1000 N
0.1 lb
0.1 kg
1 N

Related Products

Click image for more info
Data Acquisition Software for Force Gauges & Torque Gauges
- Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
Click image for more info
Manual Test Stand
- Hand wheel design provides a high degree of precise control
- Optional digital distance meter
Click image for more info
Motorized Test Stand - REPLACED BY MX-110
- Screw feeder for smooth, positive movement
Click image for more info
Mesurgauge Load & Travel Analysis Software
- Windows 7 Compatible

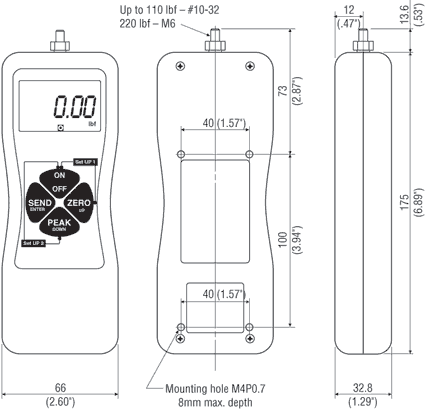

Dimensions

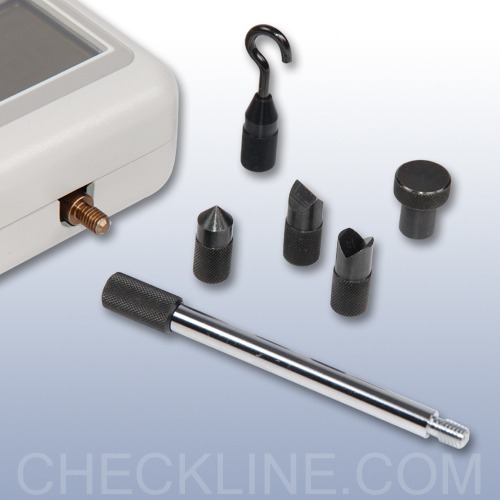

Standard Attachments

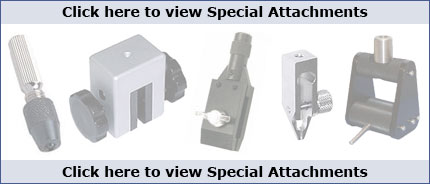

Special Attachments

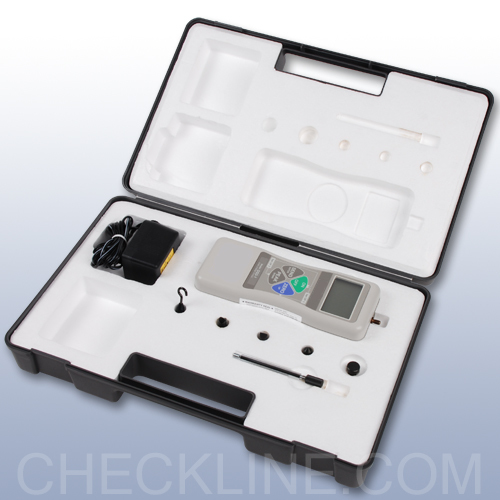

Complete Kit

All DS2 gauges are sold in a complete kit with gauge, hard plastic carrying case, a set of six standard attachments, NIST Traceable Calibration Cert, Instruction Manual and AC adapter/charger.

Specifications

Accuracy:± 0.2% Full scale ± 1 LSD
Display:4 digit, 12 mm high
Overload capacity:200% Full scale,
display flashes beyond 105% full scale
Data Processing Speed1,000 data/second (30 data/second rate selectable)
Display Update10 times per second
OutputsRS-232, Mitutoyo Digimatic and ±1 VDC analog output
Temperature range:32° to 100° F (0 - 40° C)
Low battery indicator:Display flashes when battery is low
Power supply:Rechargeable NiMH battery pack or AC adapter (included)
SetpointsProgrammable high/low setpoints with LCD indicators
Housing dimension:215 x 65 x 51 mm (L x W x H)
Weight, net (gross)approx. 430 g (1300 g)
Warranty2 Years
