STJ

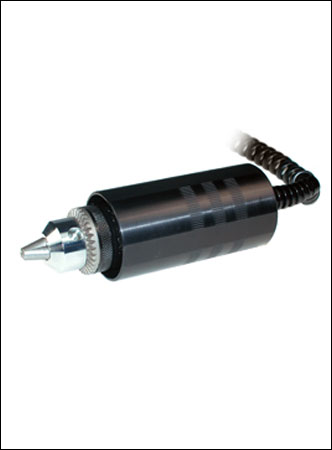

Universal Torque Sensor

The STJ has been replaced by the R50. Please click here to view the new model

Measure bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 1/2" in diameter, depending on capacity. The sensor can be used as a hand held device, or mounted to a torque test stand. Capacities available from 10 ozin to 100 lbin.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE



 Features

bluedot Member of the BGI family of interchangeable sensors
bluedot Rugged aluminum housing
bluedot "Personality module" holds all calibration and configuration data
bluedot NIST-traceable certificate of calibration included
bluedot Measures bi-directional torque
bluedot 3 Year Warranty


 Force Ranges

Model CapacityResolutionChuck capacity
STJ10OZ 10 ozin
7 kgFmm
7 Ncm		0.01 ozin
0.005 kgFmm
0.005 Ncm		0.38 in / 9.5 mm
STJ20OZ 20 ozin
14 kgFmm
14 Ncm		0.02 ozin
0.01 kgFmm
0.01 Ncm		0.38 in / 9.5 mm
STJ50OZ 50 ozin
36 kgFmm
35 Ncm		0.05 ozin
0.05 kgFmm
0.05 Ncm		0.38 in / 9.5 mm
STJ12 12 lbin
140 kgFmm
135 Ncm		0.01 lbin
0.1 kgFmm
0.1 Ncm		0.5 in / 12.7 mm
STJ50 50 lbin
580 kgFmm
570 Ncm		0.05 lbin
0.5kgFmm
0.5 Ncm		0.5 in / 12.7 mm
STJ100 100 lbin
1150 kgFmm
1150 Ncm		0.1 lbin
1 kgFmm
1 Ncm		0.5 in / 12.7 mm

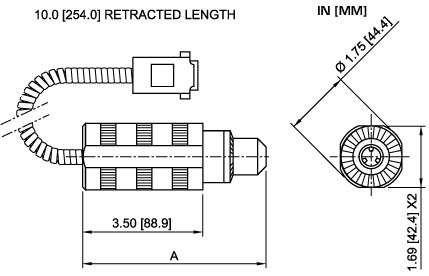

 Dimensions

dimensions


 Related Products


BGI
Remote Sensor Force / Torque Gauge		related

bluedot Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

bluedot Unlimited number of sensors possible due to unique design

bluedot RS-232, Mitutoyo and analog outputs

 Click image for more info


 Specifications

Accuracy ± 0.35% of full scale ±1 digit + BGI
Weight From 1.4 lbs (0.6 kg)
Warranty 3 years


 Downloads

manual  PDF Instruction Manual  Click Here to Download


 Buy Now

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
STJ10oz $845.00 STJ10oz Torque Tester - Requires BGIIn Stock
STJ20oz $845.00 STJ20oz Torque Tester - Requires BGIIn Stock
STJ50oz $845.00 STJ50oz Torque Tester - Requires BGIIn Stock
STJ12 $795.00 STJ12 Torque Tester - Requires BGIIn Stock
STJ50 $795.00 STJ50 Torque Tester - Requires BGIIn Stock
STJ100 $795.00 STJ100 Torque Tester - Requires BGIIn Stock
Accessories
AC1007 $90.00 Mounting kit, STJ, table topIn Stock
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
