PTB
Plastic Test Blocks |
Certified polystyrene blocks are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
Many organizations require verification of gage accuracy at the test site each time a coating thickness gage is put into service and at frequent intervals during use. Ideal for this purpose, DeFelsko certified coating thickness standards have measured values traceable to a National Metrology Institution. |

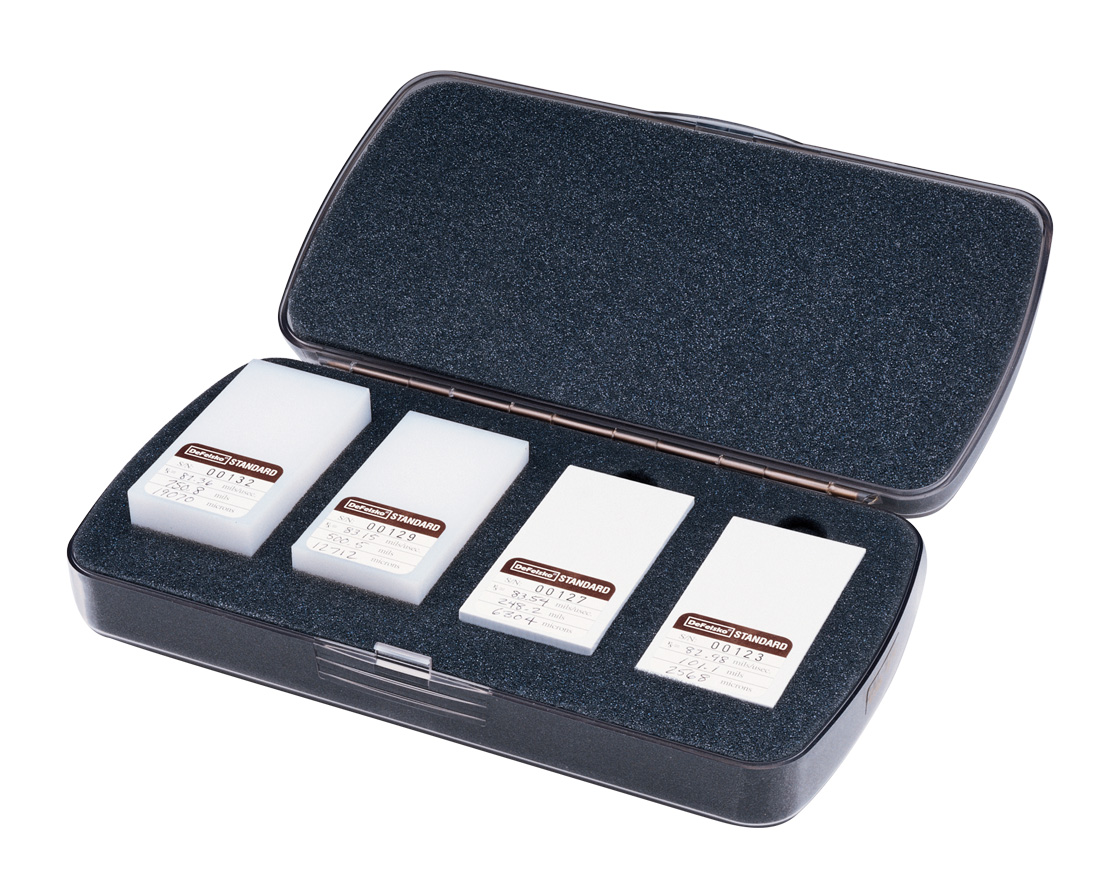

 # Polystyrene thickness standards consist of 4 blocks supplied in a rugged acrylic storage box | | Ideal for use in the calibration lab, in the field or on the factory floor | | Certified and labeled in both Metric and Imperial units |
| | Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage | | Individually serialized for traceability to NIST or PTB - includes a Certificate of Calibration |
|
 |
 |
| Order Code |
Ideal
for |
Approximate Thickness |
Accuracy |
| Block
1 |
Block
2 |
Block
3 |
Block
4 |
| P1 |
PosiTector
6000
FT, FTS, NTS, FNTS |
375 um
15mils |
2 mm
80 mils |
4.5 mm
185 mils |
6.5 mm
250 mils |
±(2.5 um + 0.05%
of thickness) ± {0.1 mil + 0.05%
of thickness) |
| P2 |
PosiTector
6000
FHS, NHS, EOC |
2.5 mm
100mils |
6.5 mm
250 mils |
13 mm
500 mils |
19 mm
750 mils |
| P3 |
PosiTector
100 C |
375 mm
15mils
|
1.5 mm
60 mils
|
2.5 mm
100 mils
|
4.5 mm
185 mils |
| P4 |
PosiTector
100 D |
1.5 mm
60mils |
2.5 mm
100 mils |
4.5 mm
185 mils |
6.5 mm
250 mils |
| P5 |
PosiTector
6000
FKS, NKS |
1.5 mm
60 mils |
2.5 mm
100 mils |
6.5 mm
250 mils
|
12 mm
480 mils |
| P6 |
PosiTector
200 C |
375 um
15 mils |
1.5 mm
60 mils |
2.5 mm
100 mils |
3 mm
125 mils |
|
|
|
