DSD-4
Torque Screwdriver |

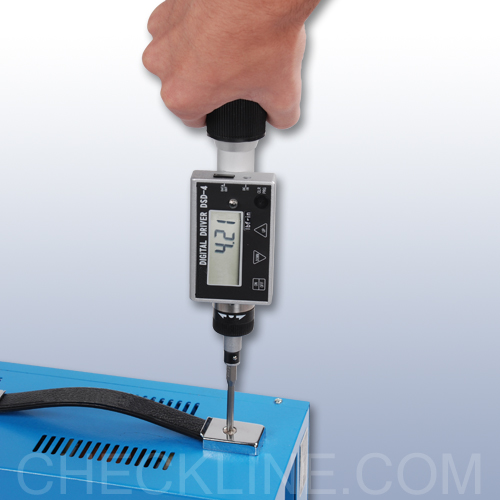

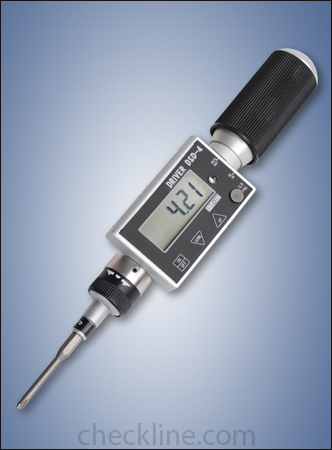

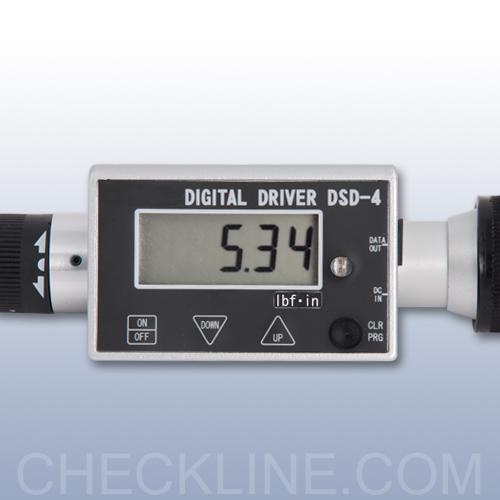

The new DSD-4 torque screwdriver features an integral/adjustable LCD display for convenient torque readings. The unit is designed for screw tightening torque verification and measures in Peak, Real Time, and Peak Down measuring modes (selectable).
The DSD-4 torque screwdriver has an accuracy of ± 0.5% F.S., ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes assembly errors by identifying mis-tightening and/or defective screws. Use the 400 internal memory for peak data recall or RS-232 download for SPC.
The DSD-4 torque screwdriver substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.
 Review of DSD Torque Screw Driver by webBikeWorld.com® |
 Includes NIST Calibration Certificate | | Peak, Real Time and Peak Down measuring mode (selectable) | | Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing | | Programmable screw tightening counter | | Both CW and CCW operation | | RS-232 output for SPC capability | | 2 Year Warranty |
| | Available in: lb-in, oz-in, kg-cm, N-cm and N-m (specify units when ordering) | | 400 data memory for recall or for SPC download | | Can be used with any 1/4" hex bit | | Runs on internal NiCad batteries (for 8 hours) Auto shut-off after 10 min. of non-use | | Integrated stepless clutch allows ratching action | | ISO/IEC 17025 Long-form Certificate & Test Data is optionally available |
|
| Model |
Capacity |
| DSD-4 |
0.30-35.00 lbf-in (Factory Standard) |
| DSD-4oz |
3.0-560.0 ozf-in |
| DSD-4kg |
0.3-40.00 kgf-cm |
| DSD-4cN |
3.0-400.0 N-cm |
| DSD-4N |
0.030-4.000 N-m | | |
| Accuracy ± 0.5% F.S., ±1 LSD |
| |

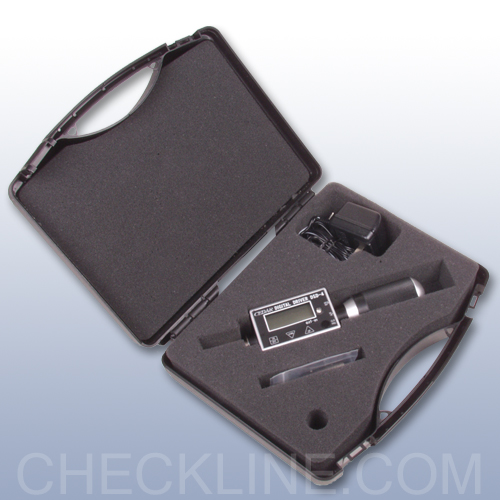

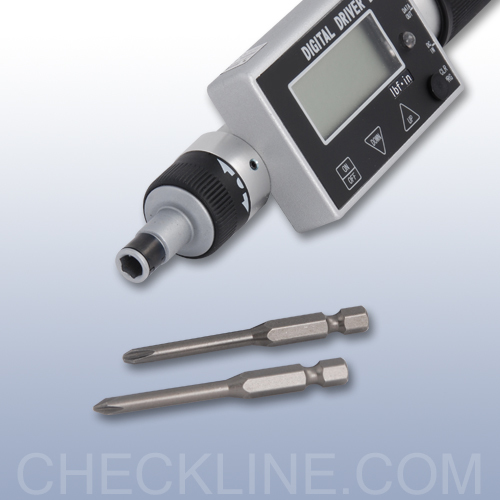

| | | | The DSD-4 is sold as a complete kit that includes the tester/screwdriver, integrated stepless clutch, 2 Phillips tips (#1 & #2 size), large & small, AC adapter/charger and carrying case. |
 |
|
