CDT-1000HD
Non-Contact Tachometer |

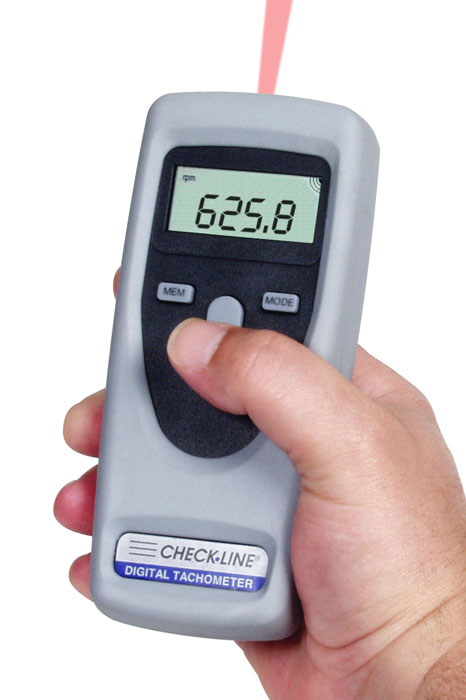

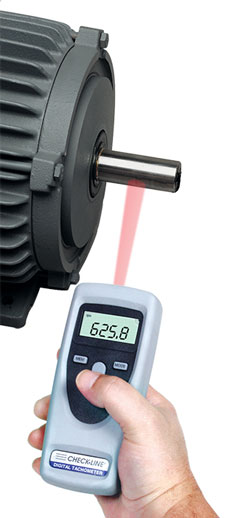

The CHECK-LINE CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element.
The CDT-1000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
A combination Contact & Non-Contact model, the CDT-2000HD, is also available. Click here for data sheet. |
 Measures speeds from as low as 1.00 rpm up to 99,999 rpm | | Accuracy of 0.02% with a resolution of 0.01 RPM | | Includes NIST calibration Certificate |
| | Built-in memory stores maximum, minimum, average and last reading for recall to the display
| | NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection |
|
| Low Battery Indicator alerts the operator if the batteries are low.
On-Target Indicator confirms that the measurements are reliable.
Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.
|

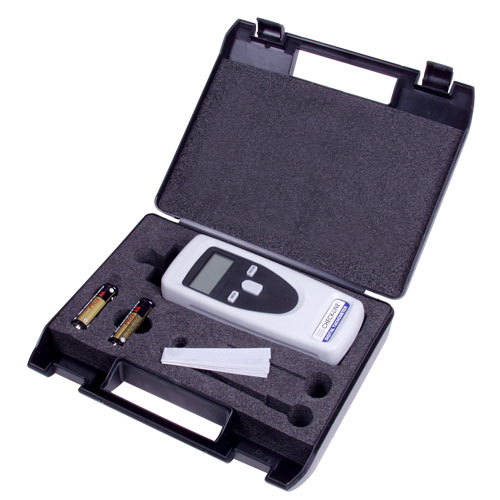

| | | | The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and NIST certificate -- all supplied in a foam-fitted, hard-plastic Carrying Case. |
 |
|
CDT-2000HD
Combination Contact and Non-Contact Digital Tachometer |  |
Measures speeds from as low as 1.00 rpm up to 99,999 rpm | | Click image for more info
|
| Measuring Range |
1.00 - 99,999 rpm |
| Resolution |
.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999 |
| Accuracy |
± 0.02% of reading or 1 digit |
| Display |
5 - Digit LCD, 10mm high |
| Decimal Point |
Automatic |
| Memory System |
Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
| Measurement System |
Visible LED light beam |
| Sensing Distance |
Up to 24 inches (60 cm) |
| Display Update Time |
0.5 seconds or one measuring |
| Auto Power Off |
After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
| Battery Life |
40 hours continuous use |
| Battery |
2 AA (1.5 V) or rechargeable |
| Weight |
6 ounces (170 grams) |
| Housing Material |
ABS Plastic housing with removable protective rubber shell |
| Operating Temperature |
32 to 122º F (0 to 50º C) |
| Storage Temperature |
-4 to 150º F (-20 to 70º C) |
| Accessories included |
10 Strips of 1/2 x 4 inch reflective tape |
| Warranty |
5 years |
| Calibration Certificate |
Included |
|
|
