TI-25M
Ultrasonic Wall Thickness Gauge |
 Measuring Range in Steel
0.025 - 6.00 inches
0.60 - 150.0 mm

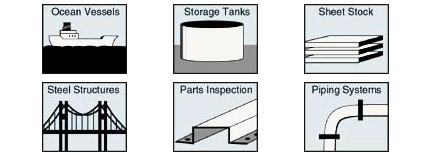

The new CHECK-LINE TI-25M Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The TI-25M can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The TI-25M probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions. |
 Resolution of 0.001 inch (0.01 mm) | | Large, back-lit LCD display retains last reading | | Simple operator controls virtually eliminate training | | Special-purpose probes are offered for a variety of applications | | Switch-selected units for inches or mm |
| | For underwater surveying, probe cable lengths up to 50 feet are optionally | | CE Certified | | Includes NIST Calibration Certificate | | Made in the USA |
|
| | | NIST-Traceable Steel Test Block
3 Sizes Available |  |  Precision Machined and Finished
Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | | Click image for more info
|
___________________________________________ |
| | | Uncertified Steel Test Block
For Ultrasonic Gauges |  | For convenient confirmation of thickness gauge calibration | | | Click image for more info
|
___________________________________________ |
| | | TICC-M
Protective Holder for Ultrasonic Gauges |  | Constructed from heavy duty Cordura Nylon Built-in belt loop | | | Click image for more info
|
___________________________________________ |
| | | CF12
Coupling Fluid |  | Used to create an ultrasonic coupling between the probe and material to be measured | | | Click image for more info
|
___________________________________________ |
| | | TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  | 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors. | | | Click image for more info
|
___________________________________________ |
| | | V-Block
Transducer Holder |  | The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | | Click image for more info
|
|
| | | | The TI-25M is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
|
Range in Steel
|
0.025-6.00" (0.60-150.0 mm)
|
|
Resolution
|
.001" (0.01 mm)
|
|
Display
|
4½ - Digit, 0.5" Back-lit LCD
|
|
Velocity Range
|
6,500-33,000 ft./sec (2000-10,000 m/sec.)
|
|
Probe
|
7.5 MHz, 0.25" Diameter (6.35 mm)
|
|
Cable
|
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
|
|
Temp. Limits
|
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
|
|
Battery Type
|
Two AA batteries
|
|
Battery Life
|
200 hours
|
|
Weight
|
7 ounces (196 g)
|
|
Size
|
2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
|
|
Accessories Included
|
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
|
|
Warranty
|
Gauge: 5 Years
Probes: 90 Days
|
|
Model |
Description |
|
TI-25M-H |
High Temperature for surfaces up to 650° F or 343° C. Transducer is 0.5" 5.0 MHz, range .050" to 19.99" |
|
TI-25M-107 |
Cast Iron / Plastics |
|
TI-25M-HW |
Heavy Wall (0.040-19.999") |
|
|
|
|
