P45-50N 45 Degree Peel Test Fixture

45 Degree Peel Test Fixture P45-50N
Click images to enlarge.

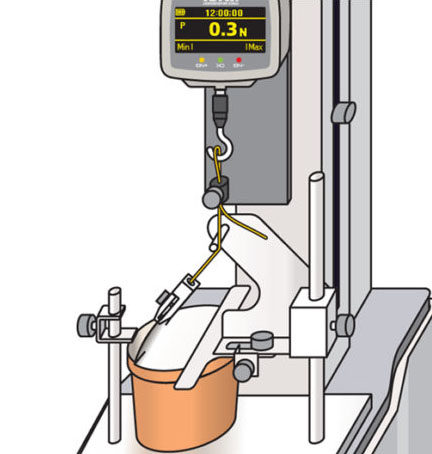

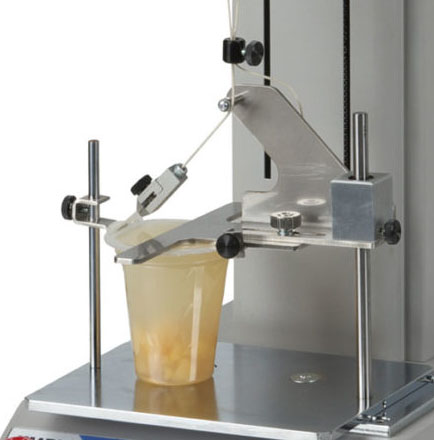

mx2-110 P45-50N 45 Degree Peel Test FixtureThe 45-degree Peel Tester is a specialized fixture designed to work with a motorized test stand and digital force gauge to form a complete test system. The peel fixture holds and peels back container seals and tapes from food and medical packaging, etc.

Motorized test stands provide the smooth, consistent test speed essential for peel testing. Digital force gauges feature large easy-to-read displays with an intuitive menu interface. All digital force gauges include a RS232 and USB port for optional data output. Optional software stores peak peel force values, or can create a profile curve. ZTA digital force gauges with USB output continuously output at 2,000 data per second.

With the 45 degree peel tester, test peel force for Velcro, tapes, laminates, and a wide variety of other materials. Contact our sales engineers for more information or for guidance with a custom application.

A 45 degree peel test system is comprised of 4 components (sold separately):
Motorized Test Stand - Moves the force gauge at a constant test speed
Digital Force Gauge - Displays force applied
Small Chucks - SC-3 or SC-8 Small Chucks – Recommended for most samples

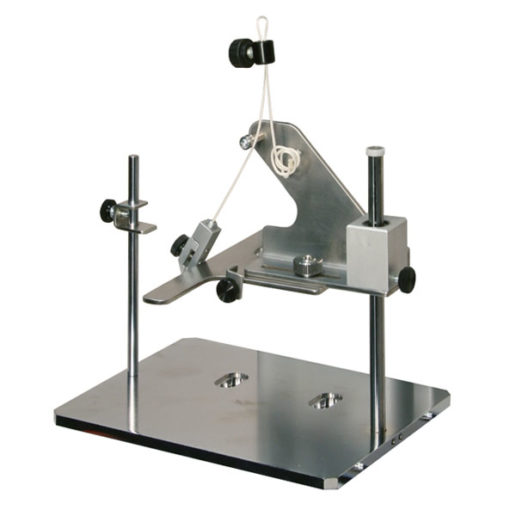

Peel Fixture - P45-50N 45° Peel Table – Maintains 45 degree peel position

Features

  • Peeling angle is 45 degree, and this angle is nearly practical condition of opening cover.
  • Supports various container sizes

Related Products

Click image for more info
Motorized Vertical Test Stand
- Force Controlled operation with ZTA force gauges
- Jog, Single Cycle, Continuous Cycle, Force Control
DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output

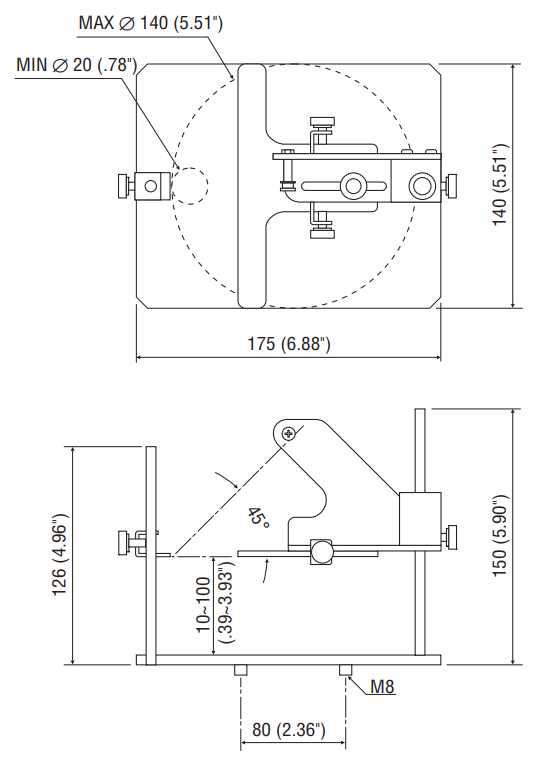

Dimensions
