Checkline

Data Logging Wall Thickness Gauge

TI-25DL

Measuring Range in Steel
0.025 - 6.00 inches
0.60 - 150.0 mm

The new CHECK-LINE TI-25DL accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The TI-25DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

The gauge can be used in a Single Thickness Reading mode or in two alternative modes, the Scan mode and the and the Differential mode. The Scan modes permits the user to "drag" the probe over a large measuring area where the minimum thickness encountered during the scan will be displayed. The Differential mode displays the difference ("+" or "-") from a set "nominal" value

Features
Resolution of 0.001" (0.01 mm)
Windows compatible data transfer program supplied at no additional cost.
Selectable units of inch or mm
CE Certified
Large, backlit LCD display retains last reading
Includes NIST-Traceable Calibration Certificate
RS-232C Serial output for downloading stored data to a printer or computer
Made in the USA
Memory for 1000 data points in up to 10 batches
IP 65 Rated
Special-purpose probes are offered for a variety of applications

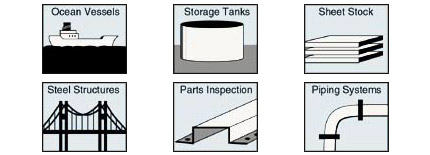

Typical Applications
typical

Optional Accessories
Certified Steel Test Blocks
Precision Machined and Finished
Includes Wooden Storage Box
Includes NIST-Traceable Report and Test Data
Click image for more info
Steel Test Block without certification
For convenient confirmation of thickness gauge calibration
Click image for more info
Protective Holder for Ultrasonic Gauges
Constructed from heavy duty Cordura Nylon
Click image for more info
Coupling Fluid
Used to create an ultrasonic coupling between the probe and material to be measured
12oz Bottle
Click image for more info
50 Foot Underwater Probe / Cable Assembly
Click image for more info
Transducer Holder
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
Click image for more info
Portable Printer for TI-25DL
Click image for more info
Software for Thickness Gauges
Free data acquisition software
Click image for more info
Measuring Limits
Minimum Radius for Convex Surfaces 0.350" (8.89 mm)
Minimum Radius for Concave Surfaces 3" (76.2 mm)
Minimum Headroom 1" (25.0 mm)
Minimum Sample Diameter 0.150" (3.8 mm)
Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na

Specifications
Range in Steel 0.025-6.00" (0.60-150.0 mm)
Resolution .001" (0.01 mm)
Velocity Range 6,500-33,000 ft./sec (2000-10,000 m/sec.)
Display 4 - Digit, 0.5" Backlit LCD
Probe 7.5 MHz, 0.25" Diameter (6.35 mm)
Probe Wearface PEEK (Polyethlethylketone)
Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Serial Output RS-232C (8, N, 1, user-set baud rate)
Temp. Limits Ambient: -20 to 120 F (-30 to 50 C)
Material: --ll0 to 200 F (-20 to 100 C
Special high temperature probes are optionally available.
Battery Type Two AA batteries
Battery Life 200 hours
Weight 7 ounces (196 g)
Size 2.5 x 4.5 x 1.25"
(64 x 114 x 32mm)
Accessories Included Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty Gauge: 5 Years
Probes: 90 Days

Complete Kit

The TI-25DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.complete kit
Special Purpose Models
Model Description
TI-25DL-H High Temperature for surfaces up to 650 F or 343 C
TI-25DL-107 Cast Iron / Plastics
TI-25DL-HW Heavy Wall (0.040-19.999")

Downloads
news  NIST-Traceable Certificate Sample  Click here to download
manual  Probe Zero Instructions  Click here to download
news  PDF Data Sheet  Click to download
manual  PDF Instruction Manual  Click Here To Download

Buy Now
 ItemPriceDescription
Check the items you would like to purchase then click "Buy Now"
TI-25DL$1,695.00TI-25DL, Ultrasonic Wall Thickness Gauge with Data Logging Complete KitIn stock
TI-25DL-H$1,795.00TI-25DL-H, Ultrasonic Wall Thickness Gauge with high-temp probe and Data Logging, Complete Kit Complete Kit (CF-4H High Temp Coupling Fluid HIGHLY RECIn stock
TI-25DL-107$1,695.00TI-25DL-107, Ultrasonic Wall Thickness Gauge with Data Logging for Cast Iron and Plastics Complete KitIn stock
TI-25DL-HW$1,695.00TI-25DL-107, Ultrasonic Wall Thickness Gauge with Data Logging for Heavy Walls Complete KitIn stock
TI-25DL-WOP$1,400.00TI-25DL-WOP, Ultrasonic Wall Thickness Gauge with Data Logging SUPPLIED WITHOUT PROBE. Probe must be ordered separatelyIn stock
Accessories
TICC-M$55.00Protective Holder for TI-25DLIn stock
CF12$30.00Coupling Fluid - 12ozIn stock
CF-4H$65.00High Temp Coupling Fluid 4oz (0 - 600 °F / -18 to 316 ?C)In stock
CF-4H-950F$150.00High Temp Coupling Fluid 4oz (600-950 °F/316-510 °C)In stock
V-Block$175.00V-Block Transducer HolderIn stock
USB-RS232-ADAP$25.00USB to Serial AdapterIn stock
T-102-3300$320.00Spare / Replacement Probe for TI-25DLIn stock
T-102-2000$285.00Spare / Replacement Probe for TI-25DL-102In stock
T-102-1000$285.001/4" - 2.25MHz Probe for plasticsIn stock
T-104-1000$295.00Spare / Replacement Probe for TI-25DL-107In stock
T-044-2000$370.00Spare / Replacement Probe for TI-25DL-HIn stock
T-104-2000$295.00Spare / Replacement Probe for TI-25DL-HWIn stock
T-212-2001$445.001/4" - 5 MHz Hi Temp - 900 °F / 500 °C Dual Microdot connectors, top-inIn stock
BATT-RC4AA-WC$35.004-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger KitIn stock
