FGS-1000H Manual Test Stand

Click images to enlarge.

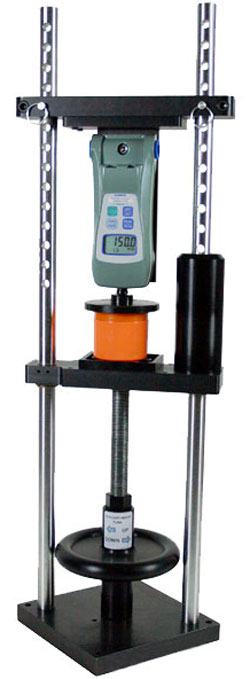

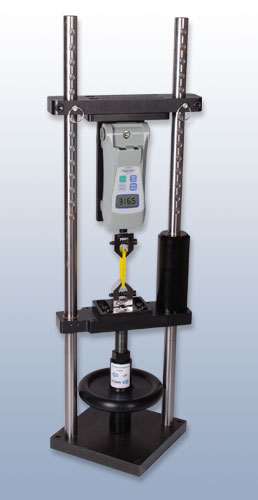

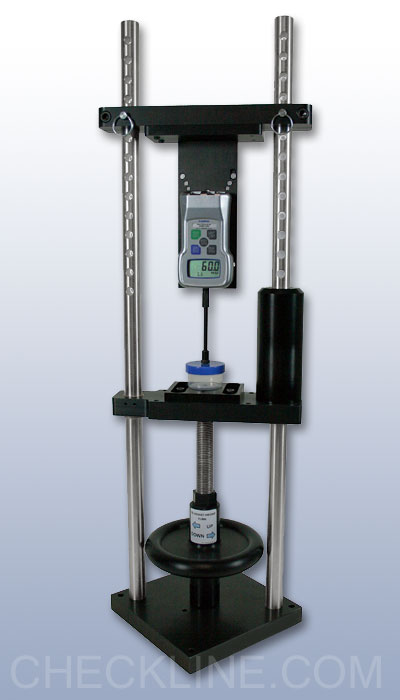

The FGS-1000H is designed for convenient testing in both TENSION and COMPRESSION, the FGS-1000H is easy to set-up and use.

With its ability to mount the FGV-1000HX (1000 lbs, 2500N, 500KG) capacity digital force gauge, and all FGE/FGV –X series force gauges, this system is a great fit for most force testing applications.

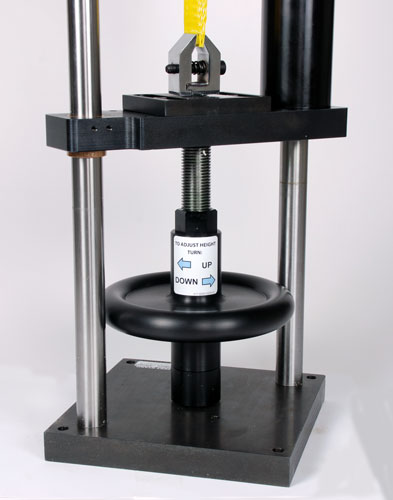

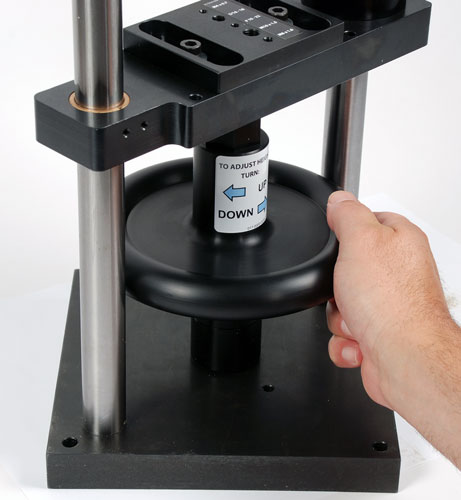

A smooth operating turn-wheel provides a precise 0.1" travel per revolution. The FGS-1000H heavy duty construction provides repeatable and reliable testing for many years. The FGS-1000H features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter.

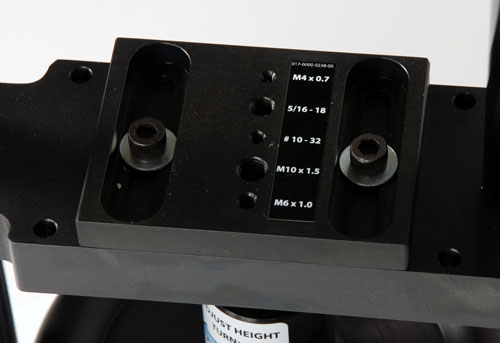

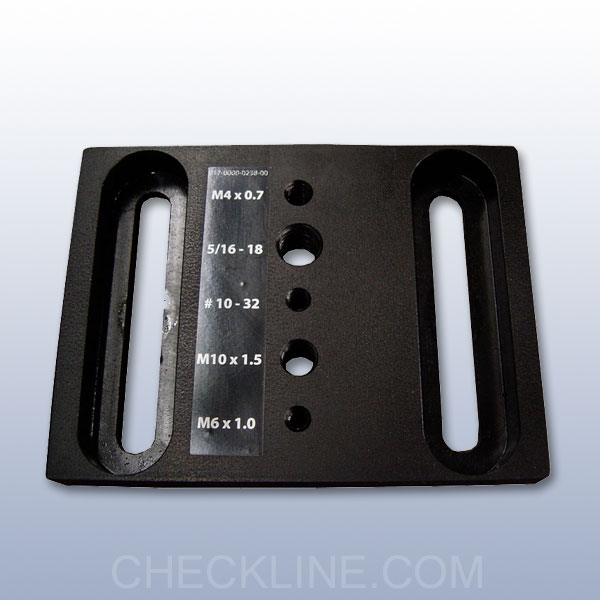

With counter sunk (force gauge) mounting holes, a self aligning, pre-tapped sliding base plate for securely attaching test parts, the FGS-1000H is a welcome alternative for utilizing existing and new force gauges, grips, attachments and accessories.

Features

  • Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments

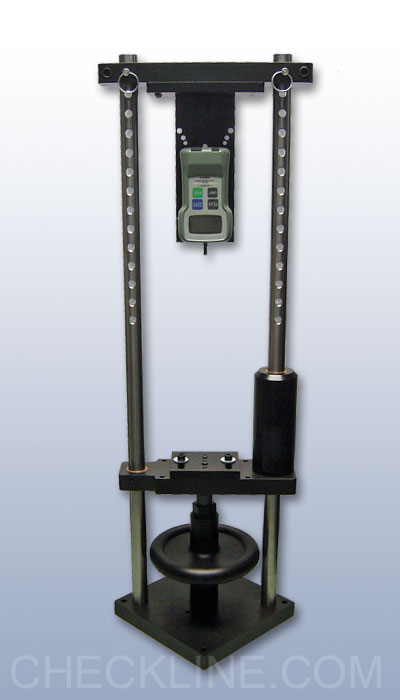

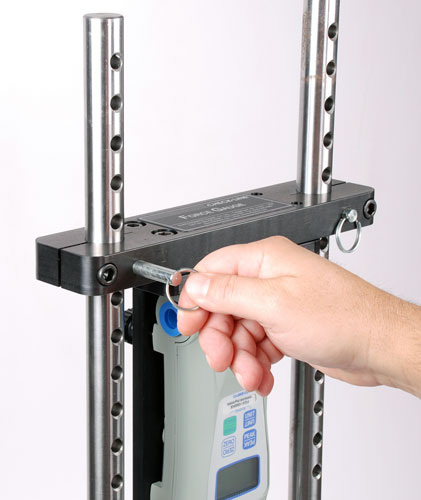

  • Adjustable clearance setting enables testing on a wide range of samples
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results
  • Modular, compact design reduces footprint, weight and cost
  • Sturdy all steel construction allows exceptional durability and extended life of the product
  • Compatibility with many vendors’ force gauges facilitates flexibility when replacing older test stands
  • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing

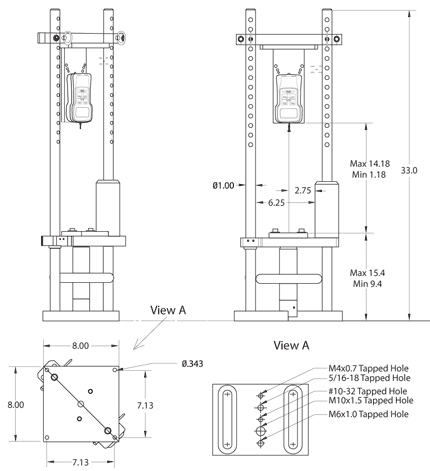

Dimensions

Specifications

Capacity1000 lbs, 2500N, 500KG
Stroke6" ( 15.2 cm)
Travel0.1" ( 2.5 mm)/ wheel turn approx.
Vertical ClearanceUp to 13" (33 cm)
Warranty1 Year

Downloads

Buy Now

Item Description Price
Manual Test Stand, 1000lb Capacity
$3,500.00
In stock
1 Week Lead Time (Estimated)
