G1002

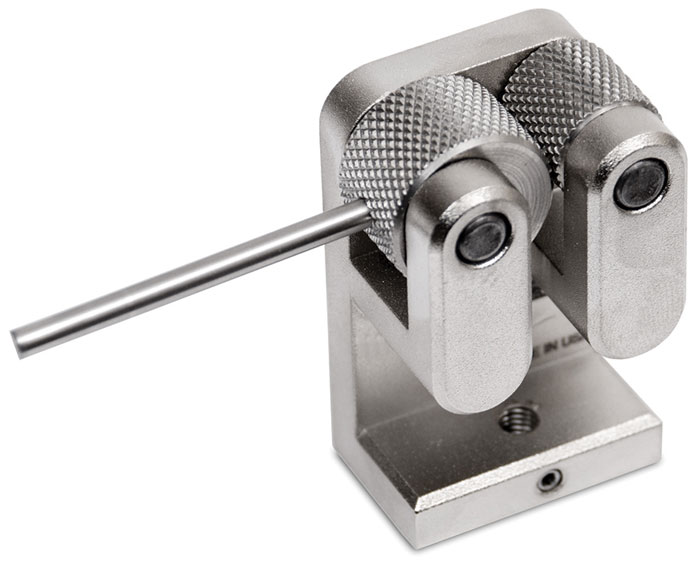

Dual Roller Cam Grip

G1002
Capacity - 200 lb
Maximum Sample Diameter - 0.25" / 6.3 mm

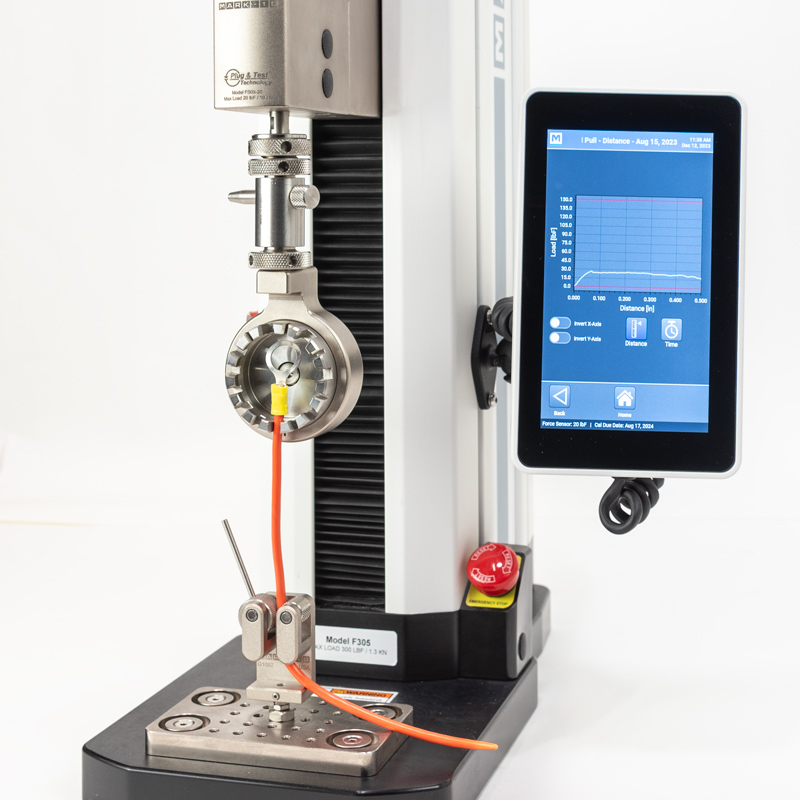

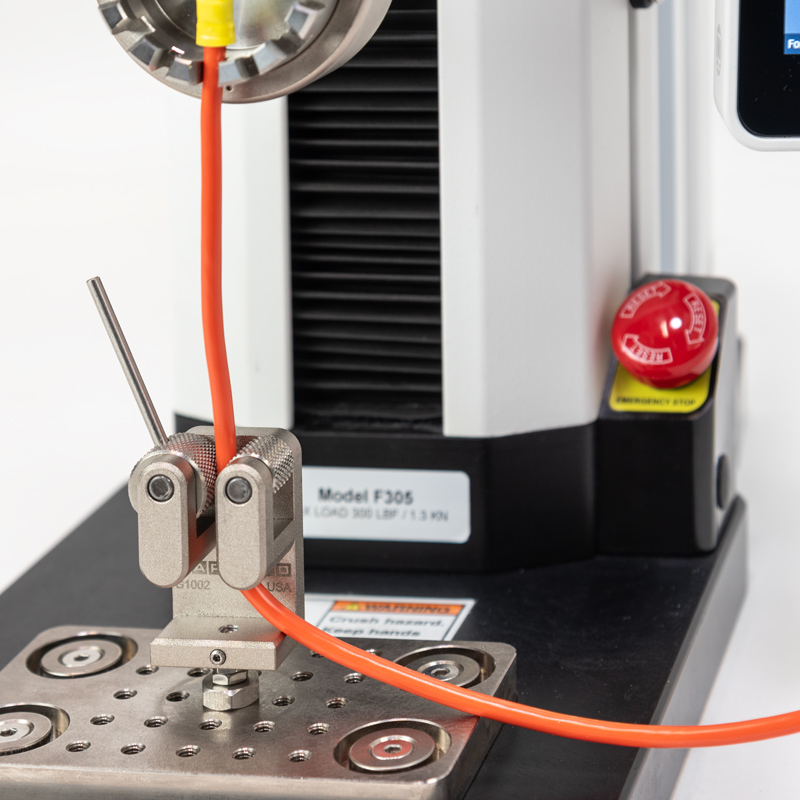

This cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Use this grip with a G1001 wire terminal grip, force gauge, and test stand to create a complete terminal and crimp testing system.


line

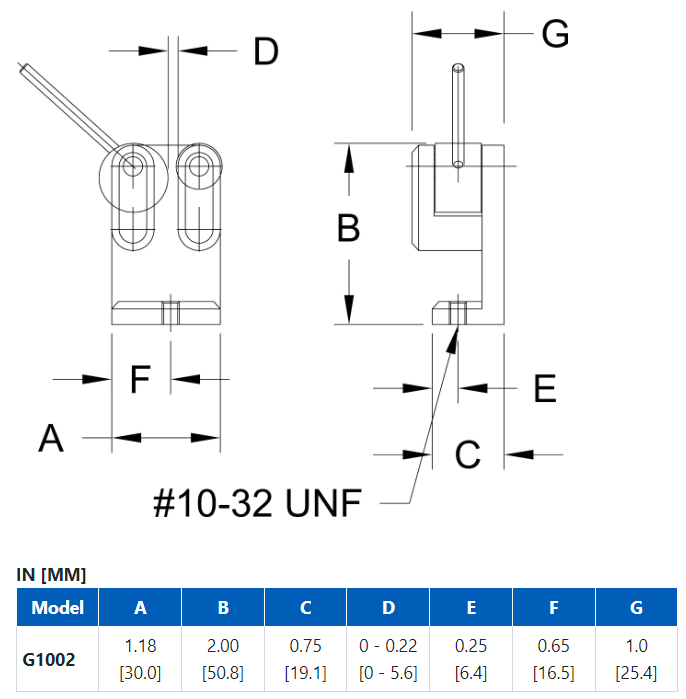

reddot Dimensions
line dimensions

line
reddot Specifications
line
Capacity 200 lb
Sample size 0.25" x 0.50"
Thread #10-32 UNF
Dimensions 1.25"L x 1.75"W x 2.25"H
Weight 0.19 lb

line
reddot Buy Now
line

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
G1002 $180.00 G1002 - Dual Roller Cam GripIn Stock
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
