HTG2
Digital Torque Gauge with programmable setpoints |
HTG2 digital torque gauge offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.
Store up to 1,000 values in memory, which can be displayed or transmitted using serial output. Use the real time mode to display torque transients, or the peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.
HTG2 digital torque gauges are sold in kits which include the gauge, sensor, six foot cable, and AC adapter/charger. Built-in NI-MH rechargeable batteries. |
 User-selected units of Pounds, Kilograms or Newtons | | RS-232C, Digimatic and Analog outputs | | Runs on internal NiCad batteries or AC adapter | | 1000 Data memory for computer download | | Display "real-time" or "peak" force | | Both clockwise and counterclockwise operation | | Tare function |
| | Overload capacity 200% of F.S. | | Ergonomic design with non-slip rubber grip, heavy duty metal construction | | Overload alarm and output signal | | Includes NIST-Traceable Calibration Certificate | | 2 Year Warranty | | ISO/IEC 17025 Long-form Certificate & Test Data is optionally available |
|
| Model |
Capacity | Resolution |
| HTG2-4 |
70.00 ozf-in
5.000 kg-cm
50.00 N-cm | 0.01 oz-in
0.001 Kg-cm
0.01 N-cm |
| HTG2-15 |
15.00 lbf-in
20.00 Kg-cm
200.0 N-cm | 0.01 lb-in
0.01 Kg-cm
0.1 N-cm |
| HTG2-40 |
40.00 lbf-in
50.00 Kg-cm
500.0 N-cm | 0.01 lb-in
0.01 Kg-cm
0.1 N-cm |
| HTG2-85 |
85.00 lbf-in
100.0 Kg-cm
1000 N-cm | 0.1 lb-in
0.1 Kg-cm
1 N-cm | | |
|
Chuck Sizes |
|
Model |
Standard |
Optional (*L) |
|
HTG2-4 |
4mm / 0.160" |
NA |
|
HTG2-15 |
6.5mm / 0.260" |
13mm / 0.512" |
|
HTG2-40 |
6.5mm / 0.260" |
13mm / 0.512" |
|
HTG2-85 |
6.5mm / 0.260" |
13mm / 0.512" |
|
*For 13mm Chuck add "-L" to
part # ie: HTG2-15L |
|
Min/Max Sample
Diameters |
|
Chuck Size |
Min Sample |
Max Sample |
|
4mm / 0.160" |
0.3mm / 0.012" |
4mm / 0.160" |
|
6.5mm / 0.260" |
0.5mm / 0.020" |
6.5mm / 0.260" |
|
13mm / 0.512" |
0.7mm / 0.028" |
13mm / 0.512" |
|
| | | | The HTG2 is supplied as a complete kit that includes the Torque gauge with 1 sensor and pin chuck (standard Model TA-00), connecting cable 2m long, instructions and manufacturer's calibration report |
 |
|
SW-1
Data Acquisition Software for Force Gauges & Torque Gauges |  |
Full SPC and graphing capabilities Automates your data collection Provides a running log of all measurements along with a chart of the data as well as statistical information | | Click image for more info | | ___________________________________________ |
|
MGT
Digital Torque Gauge |  |
Display "real-time" or "peak" force | | Click image for more info | | ___________________________________________ |
|
DI-5N-RL
Digital Torque Screw Driver |  |
Peak, Real Time and Peak Down measuring mode (selectable) | | Click image for more info | | ___________________________________________ |
|
DSD-4
Torque Screwdriver |  |
Peak, Real Time and Peak Down measuring mode (selectable) Both CW and CCW operation 400 data memory for recall or for SPC download | | Click image for more info | | ___________________________________________ |
|
NIST CAL
|  |
| | Click image for more info
|
| Accuracy: |
± 0.5 % Full scale ± 1 digit |
| Sampling Rate |
30 times/s |
| Display: |
4 digit, 14 mm high |
| Overload capacity: |
150 % Full scale (flashing LED beyond 108% full scale) open collector output signal |
| Zero adjustment: |
10% Full scale |
| A/D converter: |
16 bit |
| Memory: |
non-volatile, recall up to 960 loads, recall both peaks, open and close torque |
| Setpoints: |
Min, Max (programmable), with output signal |
| Output signal: |
RS232C (8,1,N,19200), analog ± 2V DC, Open collector 4x (+NG, Ok, -NG, OVL), max. 30V DC, 10mA, Mitutoyo Digimatic |
| Temperature range: |
5 - 45°C |
| Air humidity: |
85% RH, max. |
| Power supply: |
Rechargeable NiCd battery pack (approx. 8 hours continuous use) and/or 230 V AC adapter |

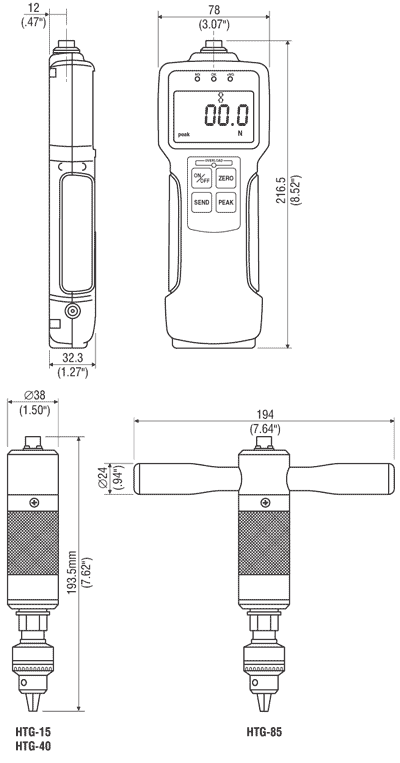

| Housing dimensions: (approx.) |
215 x 65 x 51 mm (L x W x H)
Sensor: 150x39mm (lxdiam.) |
| Weight: (approx.) |
Display unit: 440g / Sensor: 530 g
Complete set: 2000 g |
| Warranty |
2 Years |
|
|
