Checkline

Portable Yarn Tension & Rate Meter

MLT

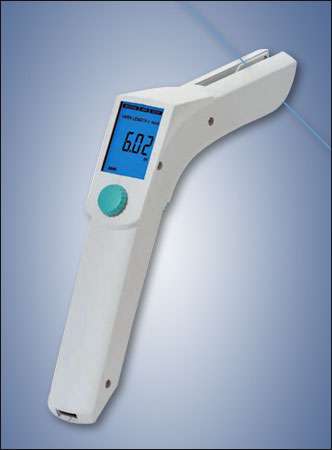

The Model MLT WESCO meter is a stand-alone electronic apparatus for accurately measuring and displaying three (3) quality-critical parameters involved in knitting, namely, yarn consumption, yarn tension and yarn speed. All contribute to producing repeatable, uniform quality fabric and products from circular knitting machines with rotating needle cylinders and flat knitting machines, including all body, hosiery and sock machines.

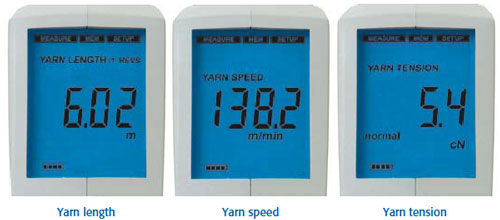

The WESCO MLT displays the Normal, Average and Peak values for yarn tension. All values are shown on an easy to read back-lit LCD display.

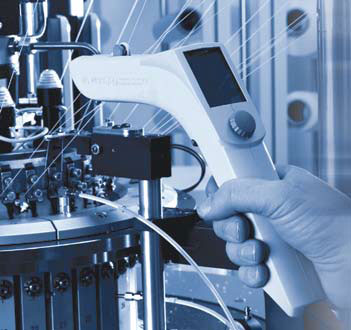

A unique, trigger-operated, yarn access system provides easy and sure yarn access and contact with a yarn tension-sensing pin and a yarn speed wheel, while a machine frame-mounted sensor counts revolutions every time a specific, rotating or moving magnetic part passes it, to provide machine RPM and yarn consumption information

This easy-to-use instrument accumulates the data required to produce repeatable, uniform material and products from one machine to the next, even when using different cylinder diameters.

Features
Accurately measures Machine Speed, Yarn Length, Yarn Tension and Yarn Speed, in selectable metric or English units
User can adjust the preset cylinder rotation count from 1 to 100 as desired
Also displays yarn Normal, Average and Peak Tension values realized during the measuring periodd
MLT WESCO gauge supplied with Battery Charger, Revolution Sensor, Data Transfer Cable, Sensor Holder, Magnet, Calibration Kit supplied in Carrying Case
Battery-powered, lightweight and well-balanced for high portability and easy handling
1-Year Warranty

Photo Gallery - click any photo to enlarge

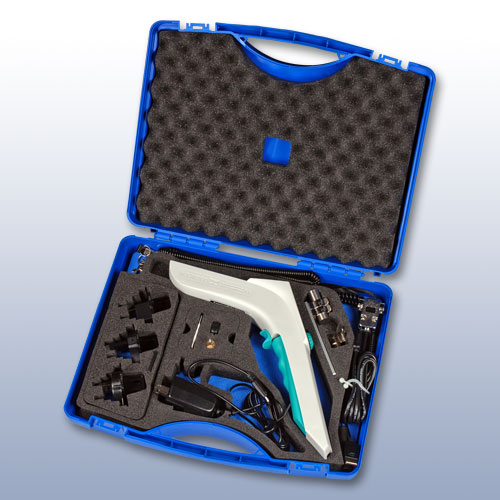

Complete Kit

Supplied as a complete kit with MLT WESCO meter, Battery Charger (with US, EU, UK, & Australia Plug Adapters), Revolution Sensor (with cable and plug), Data Transfer cable with plug, Holder for Revolution Sensor, Magnet with holder, Calibration Kit (20g weight + yarn sample) and Instruction Manual all supplied in a foam-fitted Carrying Casecomplete kit
Specifications
Power Supply Two 1.2 V rechargeable NiMH batteries
Battery Charger Primary, 100 to 240 V AC, 47 - 63 Hz; secondary 5 V, 2 A DC
LCD Digital Display 1 to 9,999 metres or inches
Max yarn speed 1,000 m/min or 1100 yd/min
Revolution measuring range 1 to 100 revolutions
Battery Life 50 hours in normal service
Battery stand-by time 300 hours
Yarn tension 0 - 50 cN (normal, average or peak value)
Accuracy 1 cm or 1 inch

Downloads
manual  PDF Brochure  Click here to download
manual  Instruction Manual  Click here to download
manual  Spare Parts Listing  Click here to download

Buy Now
 ItemPriceDescription
Check the items you would like to purchase then click "Buy Now"
MLT$1,395.00MLT Portable Yarn MeterIn stock
Accessories
042-100-007-01$97.00Revolution Sensor2-3 Week Lead Time (Estimated)
41-5413$42.00Holder for Revolution SensorIn stock
41-100-001$33.00Magnet with HolderIn stock
042-200-001-01$45.00Data Transfer CableIn stock
042-100-006-01$99.00Universal AC-Charger with plug adapters (US, UK, Euro and AU)In stock
042-100-018-01$395.00Software to Store & Analyze Data2-3 Week Lead Time (Estimated)
In stockIn stock
1 Week Lead Time (Estimated)1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)2-3 Week Lead Time (Estimated)
