CAP-TSTM
Motorized Cap Torque Testing System |
6 Ranges Available
 The CAP-TSTM Motorized Cap Torque Measurement System is designed to perform open and closure torque measurements on caps, lids, etc...
Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests. Versatile modular design allows the stand to be configured with a variety of gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.
Max Cap Diameter: 0.65 - 1.80 in (16.5 - 45.7 mm)
Max Container Diameter:0 - 4.8" (0 - 122mm)
*Optional Fixtures can accommodate larger containers, inquire
|
 Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests | | No speed variation with load | | Torque plate with tapped holes for grip and fixture mounting |
| | Includes NIST-Traceable Calibration Certificate | | 100 In-Lb Capacity | | Optional Digital Angle Indicator Displays cw or ccw angle in 0.1° resolution for approximately 278 rotations, resettable with "zero" button |
|
| Model |
Capacity | Resolution |
| CAP-TSTM-10z |
10 ozin
7 kgFmm
7 Ncm | 0.01 ozin
0.005 kgFmm
0.005 Ncm |
| CAP-TSTM-20z |
20 ozin
14 kgFmm
14 Ncm | 0.02 ozin
0.01 kgFmm
0.01 Ncm |
| CAP-TSTM-50z |
50 ozin
36 kgFmm
35 Ncm | 0.05 ozin
0.05 kgFmm
0.05 Ncm |
| CAP-TSTM-12i |
12 lbin
140 kgFmm
135 Ncm | 0.01 lbin
0.1 kgFmm
0.1 Ncm |
| CAP-TSTM-50i |
50 lbin
580 kgFmm
570 Ncm | 0.05 lbin
0.5kgFmm
0.5 Ncm |
| CAP-TSTM-100i |
100 lbin
1150 kgFmm
1150 Ncm | 0.1 lbin
1 kgFmm
1 Ncm | | |
| Speed Range |
0.3-8.6 RPM (4-52°/s) |
| Speed Accuracy |
±5% (Optional Digital Speed Control for higher accuracy) |
| Throat |
4.10" (104 mm) |
| Maximum Cap Diameter |
3.5" / 89mm |
| Manual Adjustment |
12º/knob rev |
| Maximum Silder Travel |
15.5" (394 mm) |
| Slider Travel Rate |
1.047" (26.6 mm) / level rev |
|
TSTM
Motorized Torque Test Stand |  |
Maximum load: 100 lbin (11.3 Nm) | | Click image for more info | | ___________________________________________ |
|
MESURgauge
Mesurgauge Load & Travel Analysis Software |  |
Sends data from a force or torque gauge and travel display to a PC for further analysis | | Click image for more info
|
The CAP-TSTM is sold as a complete test system that includes the following items;
TSTM - Motorized Torque Test Stand
BGI - Force / Torque Display Unit
STJ - Torque Sensor

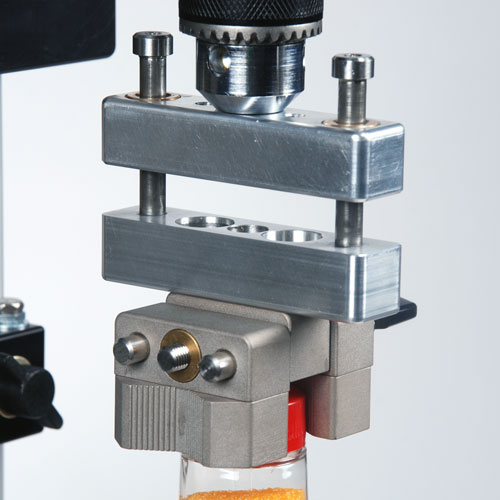

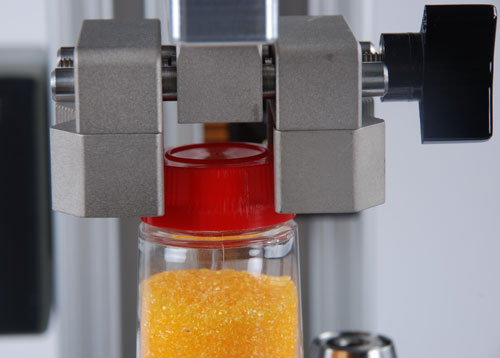

G1053 - Cap Grip
G1053-ADC - Axial Displacement Compensator

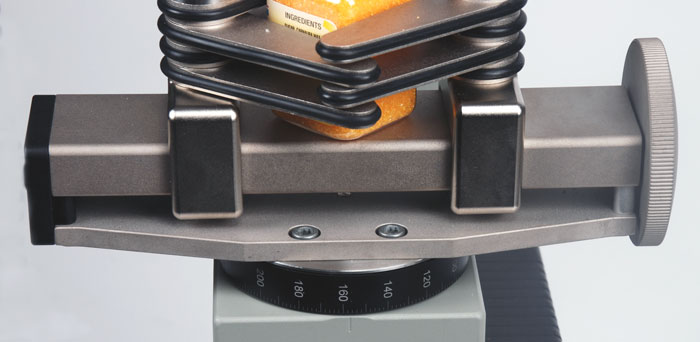

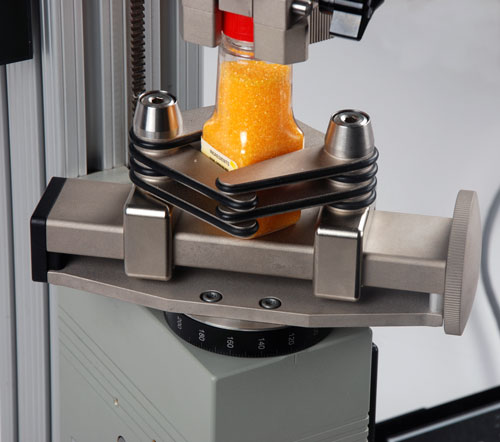

G1023 - Base Grip
11-1042 - Overload Protection Module
Optional Accessories
TST001 - Digital Angle Indicator
09-1090 - Setpoint Cable
|
|
|
