TRC Digital Torque Tester

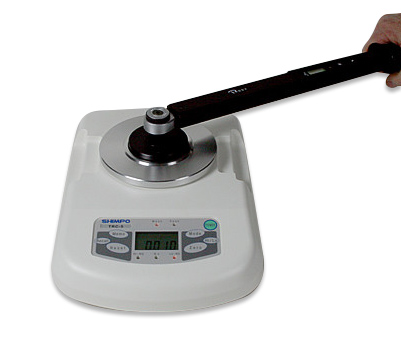

shimpo trc cap torque tester
Click images to enlarge.
The SHIMPO TRC torque checker is a user friendly instrument for calibrating or measuring torque values. A single button process does it all. Zero, Test, Store, and repeat. In addition to Average, Maximum, Minimum, and Peak values, the TRC features Red/Green/Red LED's (HI-GO-LO) and audible alarm. It's wide 3,000 data points storage capacity makes large batch testing possible, insuring overall product quality.

The TRC torque Checker is USB capable for easy PC/Software interface. Combined with the free DigiTorque_TRC software, graphical display and statistical analysis are performed and collected automatically.

The TRC is a portable device powered with internal rechargeable batteries or through a universal AC adapter/charger. The TRC's small foot print saves valuable lab space. It's low profile, (3.82") rugged design, and NIST traceable calibration certificate promotes proper calibration procedures, insuring overall product quality.

Features

  • Precise ± 0.5% F.S. ± 1 digit accuracy ensures exact results
  • Supplied with an adapter with 3/8" drive on one end and 1/4" Hex Bit on the other side
  • Variety of applications met with ranges from 17.7 in·lb (2 N·m) all the way to 88.5 in·lb (10 N·m)
  • Memory function allows convenient storage of up to 3000 readings for later retrieval
  • Large, easy to read LCD displays torque values in four selectable engineering units
  • Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
  • PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft® Excel
  • Truly portable with compact, light-weight design and internal, rechargeable batteries
  • Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use
  • Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) & counterclockwise (CCW) directions
  • Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances
  • Includes Factory Certificate, CE Approval and 2 Year Warranty!

Ranges

ModelCapacity
TRC-217.70 in·lb / 20.39 kg·cm / 200.0 N·cm / 2.000 N-m
TRC-544.25 in·lb / 50.99 kg·cm / 500.0 N·cm / 5.000 N-m
TRC-1088.5 in·lb / 102.0 kg·cm / 1000 N·cm / 10.00 N-m

Specifications

Accuracy±0.5% / F.S.
Drive Socket3/8" (0.375") Square Drive
Socket Adapter3/8" Square to 1/4" Hex
DisplayMain display: 4-digit LCD display, Character height 0.5” (12 mm); Sub display: 3-digit, 0.29” (7 mm)
Comparator DisplayLED indicates “NG”, “OK”, with adjustable alarm
Display Update TimeSelect from 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)
Measuring ModeMEAN: displays torque value in real time; PEAK: displays peak torque value
Overload120% of full scale
Sampling100 Hz
MemoryTotal 3,000 data (10 sets with 300 data point per set)
Data OutputUSB1.1 (data download by special software)
PowerNiMH rechargeable battery, and AC adapter 100-240vac, 50/60 Hz
Operating Environment32 -104˚F (0 - 40˚C) 35 - 85%RH (non condensing)
Dimensions12.60” x 8.66” x 3.82” (320 x 220 x 97 mm)
Product WeightApprox. 13.25 lb (6.0 kg)
Package WeightApprox. 16.2 lb (7.35 kg)
SoftwareDigiTorque TRC Free Download from www.shimpoinst.com
Included AccessoriesTorque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
CertificationsCE
Warranty1 year

Downloads

Buy Now

Item Description Price
Digital Torque Tester, Range 0-17.70 lb·in (0.020 - 2.000 Nm, 2.0 - 200.0 Ncm, 0-20.39 kgcm)
$795.00
Digital Torque Tester, Range of 0-44.25 in·lb (50.99 kg·cm, 500.0 N·cm, 5.000 N-m) - Please contact us for pricing and availability.
$
Digital Torque Tester, Range 0-88.5 lb·in (0.10 - 10.00 Nm, 10 - 1000 Ncm, 0-102.0 kgcm)
$
