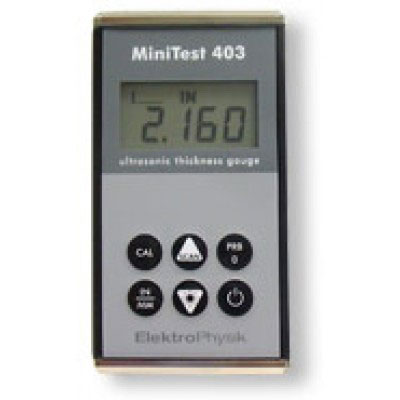

MiniTest 403 Ultrasonic Wall Thickness Gauge

Ultrasonic Wall Thickness Gauge
Click images to enlarge.
The MiniTest 403 is a straight forward ultrasonic thickness testing gauge housed in a all metal housing sealed with gaskets to make it weather proof and the sealed membrane keypad is impervious to moisture and oils.

Features

  • Resolution of 0.001 inch (0.01 mm), Switch-selected units for inches or mm
  • Large, back-lit LCD display retains last reading
  • Special-purpose probes are offered for a variety of applications
  • Made in the USA, CE Certified
  • Includes NIST Calibration Certificate
  • 5-Year Warranty

Specifications

Measuring range:0.025 to 19.999 inches (0.63 to 500 millimeters)
Velocity Range0.0492 to .3937 in./us. (1259 to 10,000 meters/second)
Resolution:0.001 inches ( 0.01 millimeters )
Operating Temperature-20 to 120 F (-30 to 50 C )
Power Source:2 x 1.5V alkaline or 1,2V NiCad AA Cells (display flashes when battery is low)
Size:2.5 W x 4.5 H x 1.24 D inches
(63.5 W x 114.3 H x 31.5 D mm)
Display:½ inch numeric with backlight
Special Features:Scan Mode: 16 readings per second, Compatible with minimum value capture and retention.
Transducers:1 to 10 MHz frequency range

Related Products

MiniTest 420 Ultrasonic Wall Thickness Gauge
Click image for more info
Ultrasonic Wall Thickness Gauge
MiniTest 430 Ultrasonic Wall Thickness Gauge
Click image for more info
Ultrasonic Wall Thickness Gauge
MiniTest 440 Ultrasonic Wall Thickness Gauge
Click image for more info
Ultrasonic Wall Thickness Gauge
Custom Transducers are available up request. Factory calibration traceable to national standards.

Downloads

Buy Now

Item Description Price
MiniTest 403 Ultrasonic Gauge, complete kit with T-102-2000 Transducer - Please contact us for pricing and availability.
$
Accessories
1/4" diameter, 5.0 MHz, dual element transducer, Side In, Potted
$320.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
