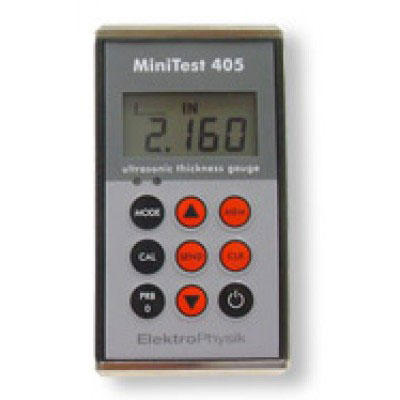

MiniTest 405 Ultrasonic Wall Thickness Gauge

Ultrasonic Wall Thickness Gauge
Click images to enlarge.
The MiniTest 405 is a straight forward ultrasonic thickness testing gauge with a built in data logger, housed in a all metal housing sealed with gaskets to make it weather proof and the sealed membrane keypad is impervious to moisture and oils.

With the MiniTest 405 you also get the Difference Mode feature which is activated by entering a target value so then when readings are taken the unit will display + or – the difference from the target value. Alternatively you can utilize the Alarm Mode by entering a minimum acceptable value and as readings are taken if the measurement is below the acceptable value a red LED light will alert you that the value is below your acceptance value and a audible alarm will also sound. If the value is above your minimum acceptable value a green LED light will light.

Features

  • Resolution of 0.001" (0.01 mm)
  • Selectable units of inch or mm
  • Large, backlit LCD display retains last reading
  • RS-232C Serial output for downloading stored data to a printer or computer
  • Memory for 1000 data points in up to 10 batches
  • Special-purpose probes are offered for a variety of applications
  • Windows compatible data transfer program supplied at no additional cost.
  • CE Certified
  • Includes NIST-Traceable Calibration Certificate
  • Made in the USA
  • IP 65 Rated

Related Products

Ultrasonic Wall Thickness Gauge
Click image for more info
Ultrasonic Wall Thickness Gauge
Ultrasonic Wall Thickness Gauge

Specifications

Measuring range:0.025 to 19.999 inches (0.63 to 500 millimeters)
Velocity Range:0.0492 to .3937 in./us. (1259 to 10,000 meters/second)
Resolution:0.001 inches ( 0.01 millimeters )
Operating Temp:-20 to 120 F (-30 to 50 C )
Power Source:2 x 1.5V alkaline or 1,2V NiCad AA Cells (display flashes when battery is low)
Size:2.5 W x 4.5 H x 1.24 D inches
(63.5 W x 114.3 H x 31.5 D mm)
Display:½ inch numeric with backlight
Memory:1000 readings
Data Output:RS232 output; serial printer, PC and data collection devices
Special Features:Scan Mode: 16 readings per second with minimum, Compatible with value capture and retention
Transducers:1 to 10 MHz frequency range
Custom Transducers are available up request. Factory calibration traceable to national standards.

Downloads

Buy Now

Item Description Price
MiniTest 405 Ultrasonic Gauge, complete kit with T-102-2000 Transducer - Please contact us for pricing and availability.
$
Accessories
1/4" diameter, 5.0 MHz, dual element transducer, Side In, Potted
$320.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
