FGE-500HXY High Capacity Digital Force Gauge Kit 500 lb /250 Kg No data ouput

fge-500hxy Digital Force Gauge
Click images to enlarge.

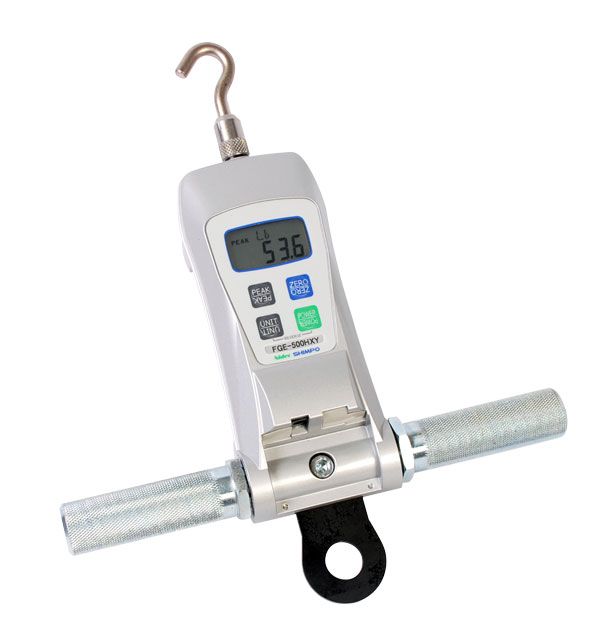

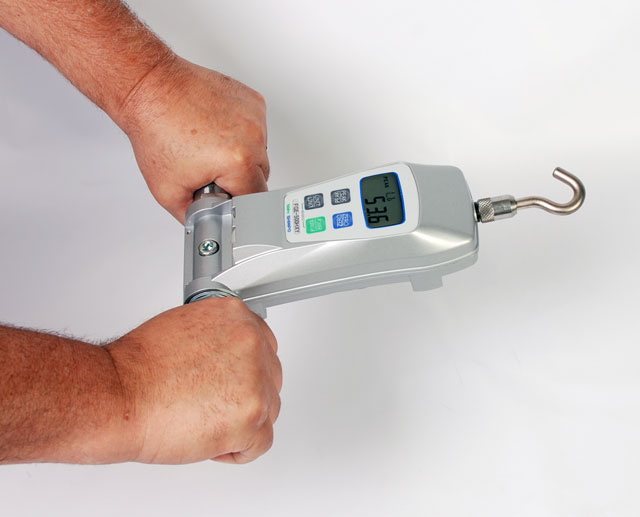

The FGE-500HXY Capacity Digital Force Gauge measures both push and pull forces up to 500 lbs / 250 kg. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.

Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-X to excel in both compression and tension applications in any direction.

Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

Features

  • Supplied with Factory Calibration Cert
    NIST Traceable Calibration or ISO-17025 Certificate options available
  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
  • Measure and record compression and tension tests. Permits true “push-pull” testing

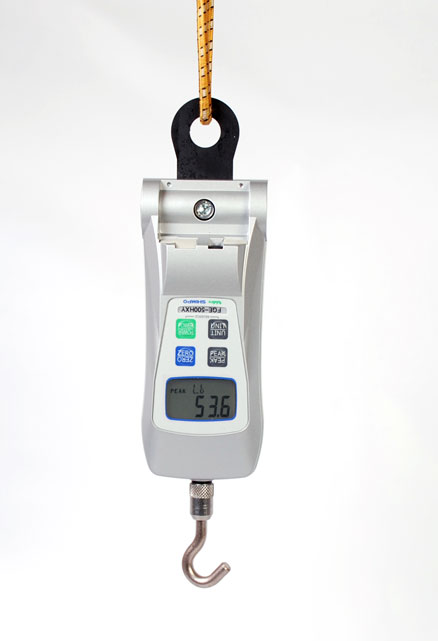

  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • Variable display response rate aids viewing of readings
  • Real Time or Peak hold mode easily selectable with a single button push
  • Flexible user preference with one button selection of engineering units
  • Field calibration through keypad eliminates down time
  • Dual power capable with rechargeable battery or AC line voltage
  • CE Mark & RoHS Approval
  • 1-Year Warranty

Ranges

ModelCapacityResolution
FGE-HXY500 lb
250 Kg
2500 N
0.1 lb
0.1 Kg
1 N

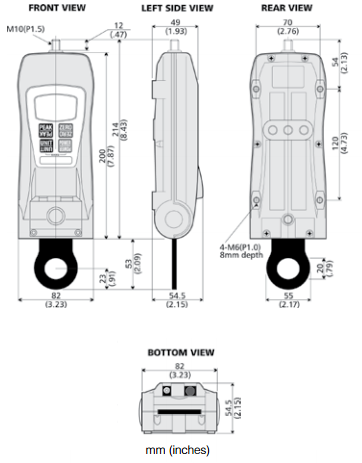

Dimensions

Related Products

Shimpo FGV-HXY Digital Force Gauge
Click image for more info
High Capacity Digital Force Gauges with Data Output
ESH Force Gauge imada
Click image for more info

Specifications

Accuracy±0.2% full scale
Resolution0.1 lb, 0.1 Kg, 1 N
Display4-Digit LCD, 0.5'' high. Reversible by the push of a button. Minus sign for tension
Display Update0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate1000 times per second
Overload Capacity150% of full scale
PowerRechargeable Ni-MH battery or universal AC adapter/charger (100-240 VAC, 50/60 Hz)
Auto Power Shut-OffYes (not active if adapter/charge is in use)
Battery Life12 hours (when fully charged)
Recharge TimeApproximately 18 hours when fully discharged
Temperature Limit32 - 104°F (0 - 40°C)
Dimensions8.43” L x 3.23” W x 2.25” H (214 x 82 x 57 mm)
Weight2 lb (900 g)
CertificationCE, RoHS
Warranty1 Year

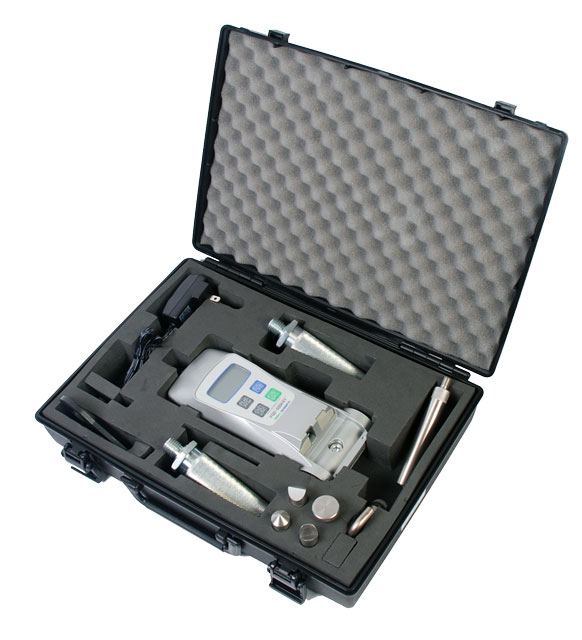

Complete Kit

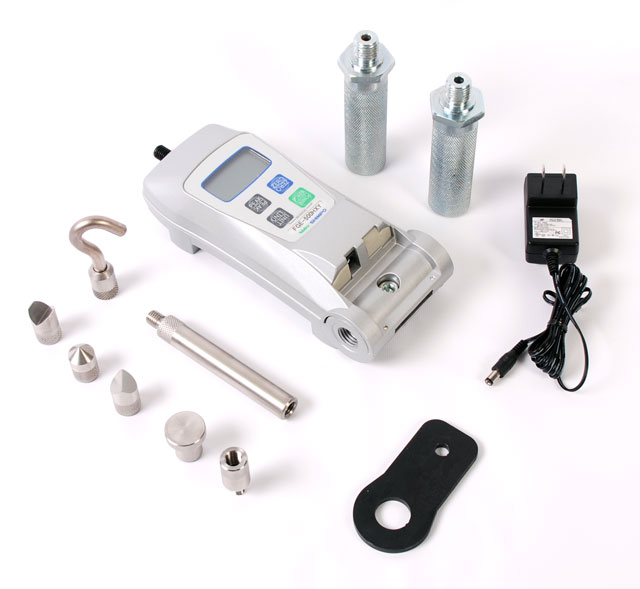

The FGE-HXY is supplied as a complete kit including AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, factory calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case.

Special Attachments

Downloads

Buy Now

Item Description Price
500 lb / 250 kg / 2500 N Capacity Digital Force Gauge, Complete Kit
$841.50
Accessories
NIST-FG-HX
NIST Traceable Calibration Certificate for FG 200 / 500 / 1000 lb capacity force gauges
$300.00
ISO-17025
ISO-17025 Calibration Certificate for FGE-500HXY
$250.00
Spare / Replacement Power Adapter for FGE-500HXY
$35.00
FG-M10HK
Steel Hook, M10 Thread, 500 lb (225 kg) Max. Capacity
$45.00
FG-M10FL
Steel Flat Head, M10 Thread
$25.00
BATT-FGEX
Spare / Replacement Internal Rechargeable NiMH Battery - FVE-BAT - BFGG0200511
$50.00
