DI-5N-TW20
Digital Torque Wrench

As of October 2009 the DI-5N-TW20 is no longer available. We recommend the DIS-TW20 as a replacement, click for more info

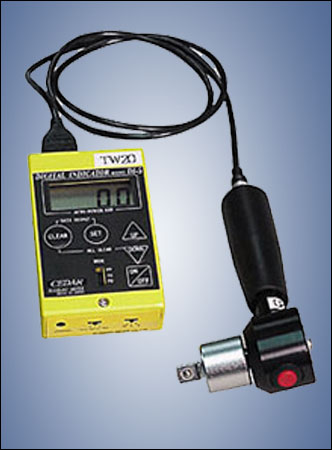

Light Weight Digital Torque Tester / Wrench with stepless one way clutch, 3/8" Drive.

The DI-5N-TW20 Digital Torque Tester is ergonomically designed, extremely lightweight and good for use as a production tool. It tightens or loosens bolts up to 180 lbf-in., yet can be used in difficult to reach places. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port.

DI-5N-TW20 substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, wrench with cable, stepless oneway clutch, AC adapter/charger and carrying case.



 Features

bluedot Includes NIST calibration Certificate
bluedot lbf-in, Kgf-cm and N-cm (selectable)
bluedot Peak, Real Time and Peak Down measuring mode (selectable)
bluedot Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
bluedot 400 peak data memory for recall or for SPC download
bluedot Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
bluedot Zero reset button on the driver for easy operation
bluedot Both clockwise and counterclockwise operation
bluedot RS-232 output for SPC capability (peak data only)
bluedot Runs on internal NiCad batteries (8 hour use)
bluedot Ergonomic, light weight, rugged metal construction
bluedot ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
bluedot 2 Year Warranty


 Photo Gallery - click any photo to enlarge


 Force Ranges

Model CapacitySq. Drive
DI-5N-TW20 1.5-180.0 lb-in
1.5-200.0 kg-cm
15-2000 N-cm		3/8"

Units of measure are user selectable



 Dimensions

dimensions


 Related Products


SW-1
Data Acquisition Software for Force Gauges & Torque Gauges		related

bluedot Full SPC and graphing capabilities

bluedot Automates your data collection

bluedot Provides a running log of all measurements along with a chart of the data as well as statistical information

 Click image for more info


 Buy Now

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
DI-5N-TW20 $0.00 DI-5N-TW20 - Digital Torque Wrench - No Longer AvailableSpecial Order Item, Not In Stock
Accessories
220V $0.00 220V Power Supply, No Cost Option supplied inplace of standard 110VIn Stock
ISO-17025 $160.00 ISO/IEC 17025 Certificate & Test DataIn Stock
SW-1S $199.00 Data Acquisition Software for TorqueIn Stock
CB-206 $75.00 Data Transfer CableIn Stock
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
