TORQ-T
Hand Tool Torque Tester |

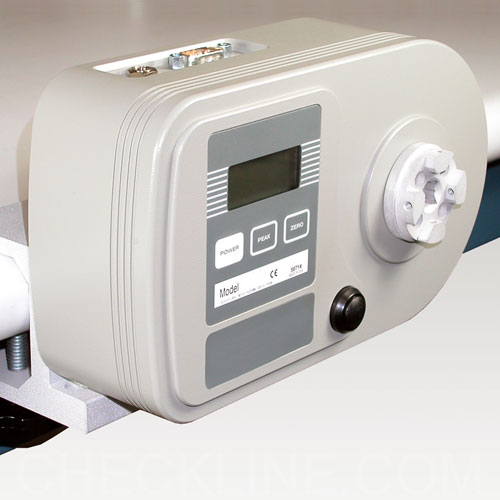

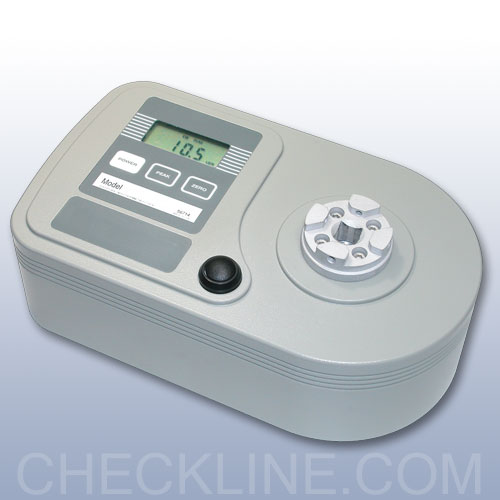

The new TORQ-T Torque Tool Testers present a simple yet accurate solution for testing torque screwdrivers, wrenches, and non-motorized torque tools. Applications exist in manufacturing facilities in virtually every industry. The TORQ-T features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments. The TORQ-T captures peak torque in both clockwise and counterclockwise directions.
Note: The TORQ-QC cannot be used with motorized tools (electric, air tools, impact wrenches, etc...) |
 Selectable units of measurement | | Peak memory for clockwise and counterclockwise readings | | Solid aluminum housing | | Battery or AC operation (AC Adapter included) |
| | Mounting holes for bench mounting | | CE Certified | | Includes NIST Calibration Certificate |
|
| Model |
Capacity | Resolution |
| TORQ-T-12 |
12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm |
| TORQ-T-50 |
50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm |
| TORQ-T-100 |
100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm | | |
| Accuracy |
± 0.5% of full scale, ±1 least significant digit |
| Max Sample Diameter |
7.5" (189.4 mm) |
| Sampling Rate |
65 readings per second |
| Display |
4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation |
| Power |
Non-rechargeable 9V battery or AC operation with included adapter |
| Battery Life |
30 hours of continuous use, LO BAT indicator |
| Overload Protection |
150% or higher |
| Weight |
4.8 lbs (2.2 kg) |
| Warranty |
3 years |
| Calibration Certificate |
Included |
|
|
