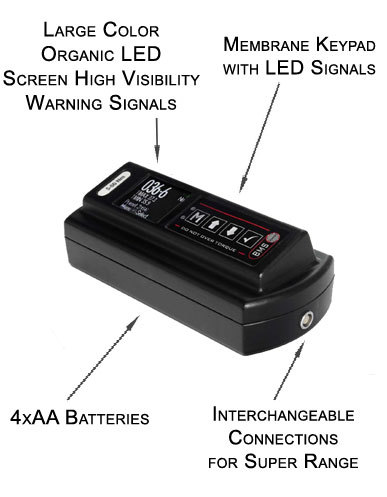

- Large Color Organic LED Screen. High Visibility, Warning Signals
- Accuracy better than 1%
- Easy to use
- Battery Life of over 180 hours
- Traceable Calibration Certificate Included
- 2 Year Warranty
| Feature Comparison Chart | EZ | PRO | SUPER |
| Language, Comms, Peak, Set, Recall, Upload, Clear | - |  |
|
| Date, Track, Presets, Units | |
|
|
| Display: Large Organic LED | |
|
|
| Units: N-m, N-cm, Kgf-m, Kgf-cm, Oz-in, Lb-in, Lb-ft | |
|
|
| Alarms: Audible & Visual Signals | |
|
|
| Automatic Zero Point Setting | |
|
|
| Automatic Power Down | |
|
|
| Over-torque: Warning system on display | |
|
|
| Batteries: Lifespan of 180+ hours | |
|
|
| Storage Capacity: 2000+ | - | |
|
| Languages: English Chinese, French, German, Italian, Japanese, Polish Portuguese, Russian, Spanish, others on request |
|
|
|
| Programmable presets: 99, via PC or directly on Wrench | - | - | |
| Electronic Calibration: by date or numbers of measurements | - | |
|
| Accuracy: better than 1% of actual reading LHS & RHS from 10% to 100% of specified range | |
|
|
| Displays measurement: Starts from 2% of max | |
|
|

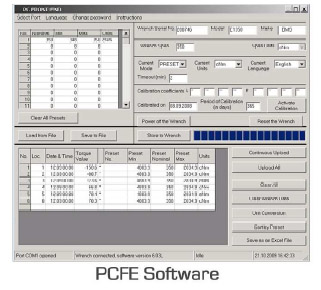

| Windows Excel and SPC compatible | - | - | |
| Comms: USB bi-directional communications | - | |
|
| PLC Communications: Using ASCII or Binary transfer | - | - | |
| Model | Range | Drive | Handle Length |
|---|---|---|---|
| DTSM-50 |
7.08 - 70.8 ozf-in
0.44 - 4.42 lbf-in
0.03 - 0.36 lbf-ft
0.5 - 5.09 kgf-cm
0 - 0.05 kgf-m
5 - 50 N-cm
0.05 - 0.55 N-m
|
1/4" | 170 mm |
| DTSM-150 |
21.2 - 212 ozf-in
1.32 - 13.2 lbf-in
0.11 - 1.1 lbf-ft
1.52 - 15.2 kgf-cm
0.01 - 0.15 kgf-m
15 - 150 N-cm
0.16 - 1.66 N-m
|
1/4" | 170 mm |
| DTSM-200 |
28.3 - 283 ozf-in
1.77 - 17.7 lbf-in
0.14 - 1.47 lbf-ft
2.03 - 20.3 kgf-cm
0.02 - 0.2 kgf-m
20 - 200 N-cm
0.22 - 2.22 N-m
|
1/4" | 170 mm |
| DTSM-350 |
49.5 - 495 ozf-in
3.09 - 30.9 lbf-in
0.25 - 2.58 lbf-ft
3.56 - 35.6 kgf-cm
0.03 - 0.35 kgf-m
35 - 350 N-cm
0.38 - 3.88 N-m
|
1/4" | 170 mm |
|
|
| Accuracy | Better than 1% accuracy LH & RH Threshold to Max |
| Display | 4 digit LCD |
| Operation | CW, CCW |

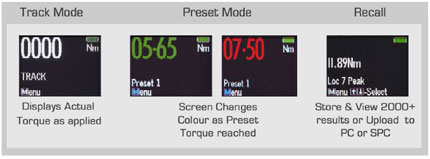

| Modes of Operation | EZ: Trac, Preset, Units PR: Trac, Preset, Units, Peak, Upload, Set, Backlite SP: Trac, Preset, Units, Peak, Upload, Set, Backlite, Recall, Clear, Date, Language, Com |
| Data Transfer | PLC communication using ASCII or Binary Transfer RS232 & USB bi-directional communications |
| Data Memory | 2094 values |
| Presets | 99 |
| Power Supply | 4xAA Standard or rechargeable batteries |
| Auto Power Save | Automatic power down |
| Working Time | 180 hours |
| Drive Size | 1/4" |
| Weight | 1.5 lbs |
