SK 122 FM
High-Capacity, Water-Proof
Online Tension Sensor |
3 Ranges
200 KG (440 LBS/2000N)
300 KG (660 LBS/3000N)
500 KG (1100 LBS/5000N)
The new CHECK-LINE Model SK 122 FM Tension Sensor measures the running line tensions of wires, cables and similar process materials.
Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection. |
 17mm non-rotating bearing journal | | designed as a single-roller system -uses an existing reversing point for tension measurement | | system of protection IP67 - waterproof | | Resolution of 0.1% and better | | Rugged stainless steel housing is environmentally sealed
|
| | Threaded housing with lock-nuts permits easy mounting and simple alignment | | Overload protection up to 800% | | Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available | | Custom sensor designs can be developed to meet specific applications requirements. Inquire. |
|
|
TS621
Strain Gauge Amplifier |  |
Designed for use with a wide range of strain-gauge-based force, load and tension sensors
0-10VDC analog output
| | Click image for more info | | ___________________________________________ |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | Click image for more info | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | | Click image for more info
|

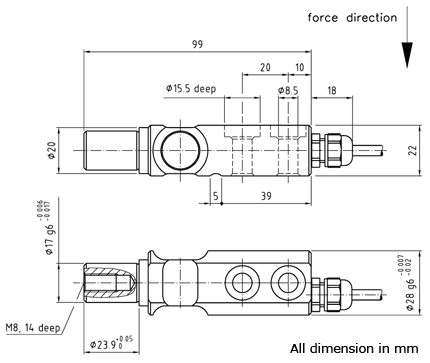

| Measuring Ranges |
200 KG (440 LBS/2000N)
300 KG (660 LBS/3000N)
500 KG (1100 LBS/5000N) |
| Measuring Principle |
Strain Gauge |
| Accuracy |
±0.5% Full Scale or better |
| Sensor Excitation |
10 VDC (12 VDC, max.) |
| Sensor Output |
1.5 mV/V |
| Input Resistance |
350 Ohms |
| Output Resistance |
350 Ohms |
| Overload Protection |
400 - 800% |
| Deflection |
0.07mm (max.) |
| Housing Material |
Stainless Steel |
| Environmental Protection |
IP67 (Water-Proof) |
| Cable Type |
4.5 mm diameter shielded cable with bare leads |
| Cable Length |
10 ft. (3 meter), longer lengths available. Inquire |
| Operating Temperature |
15 to 122° F (-10 to 50° C) |
| Sensor Excitation |
19 - 28 VDC
(24 VDC recommended @ 36 mA) |
| Sensor Output |
0 - 10 VDC (standard)
4 - 20 mA (optional) |
| Fequency Responce |
5 msec (200 Hz) |
| Zero Adjustment |
±45% |
| Weight |
450g |
|
|
