A2105
Gas Engine Tachometer |

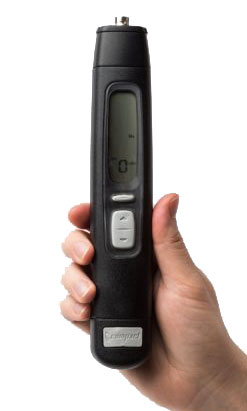

The A2105 Digital Hand-Held Tachometer measures RPM of 2 & 4 Stroke Gas / Petrol Engines with a Non-Contact Antenna Sensor or Clip-On Remote Cable Sensor.
The A2105 is ideal for testing most types of
single and multi-cylinder petrol & gas engines
with electric and electronic ignition systems,

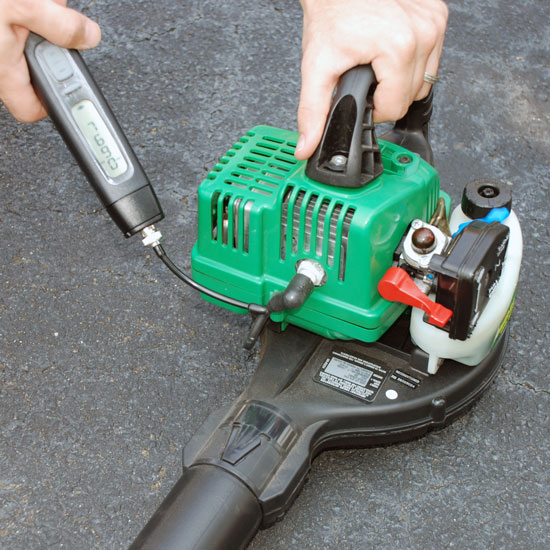

designed for hand-held testing and hands
free bench testing of engines, chain saws,
disc cutters, horticultural and Forestry
machinery, pumps, compressors and similar
engine driven equipment. |

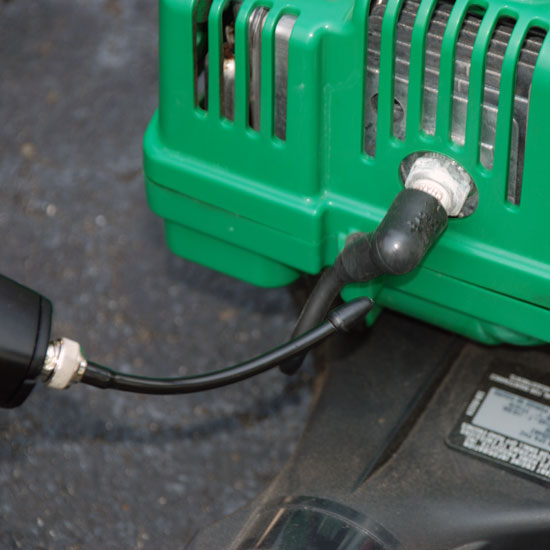

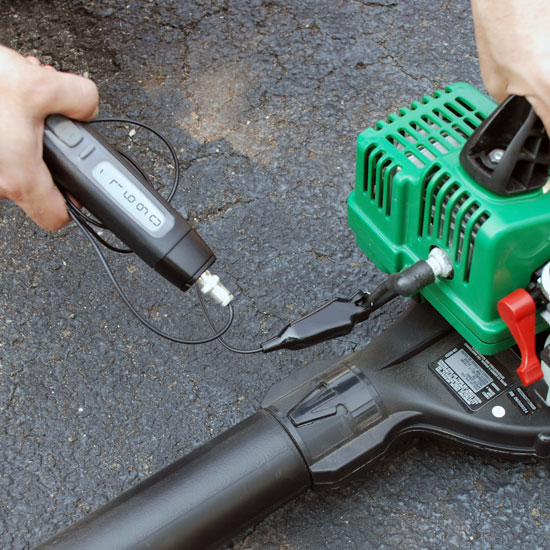

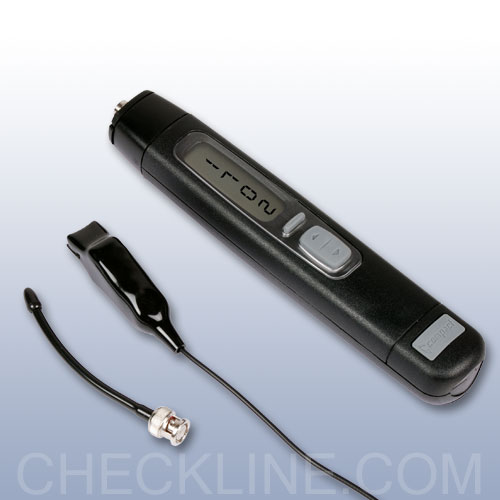

 Supplied with a Non-Contact Antenna Sensor & Clip-On Cable Sensor | | Measures RPM on 2 & 4 Stroke Gas / Petrol Engines | | Works with Single & Multicylinder Gas Engines |
| | Includes Certificate of calibration | | Reversible display | | Real-Time or Peak RPM Display |
|

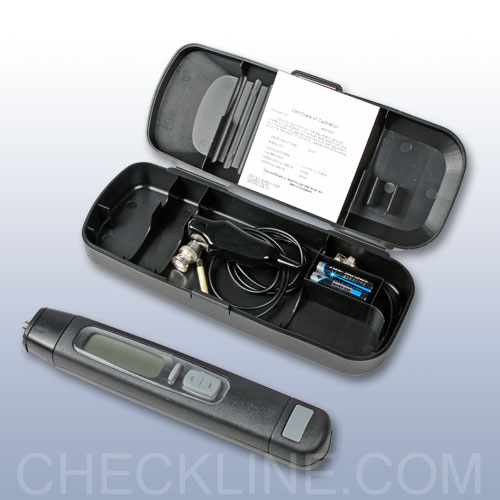

| | | | The A2105 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate, Non-Contact Antenna Sensor & Clip-On Cable Sensor |
 |
| Speed range |
60 to 18,000rpm |
| Resolution |
10 rpm |
| Accuracy |
0.05% +/- 1 digit |
| Update |
0.8 sec (normal mode)
0.1 sec (capture mode) |
| Controls |
On, Invert, Capture, Ratio |
| Auto Off |
Auto shutdown if inactive for 5 minutes |
| Signal Indicator |
Yes in display |
| On target ind. |
Yes |
| Remote Sensing Distance |
Up to 3" / 75mm |
| Battery Life |
6 hours of continuous use |
| Power |
4 x AAA batteries-supplied |
| Carry Case |
Supplied |
|
|
