AD-100 Durometer
Click images to enlarge.

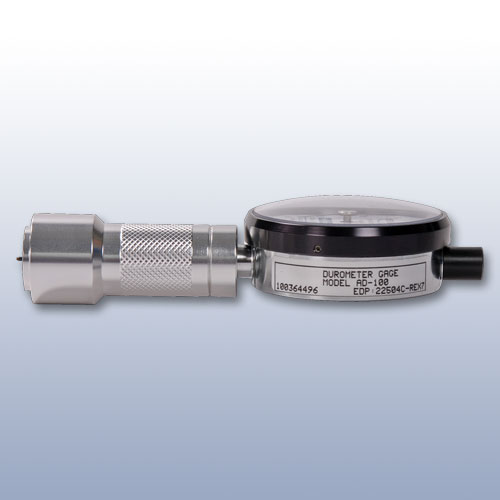

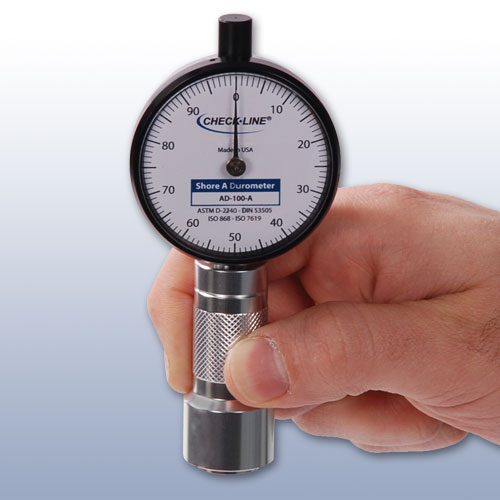

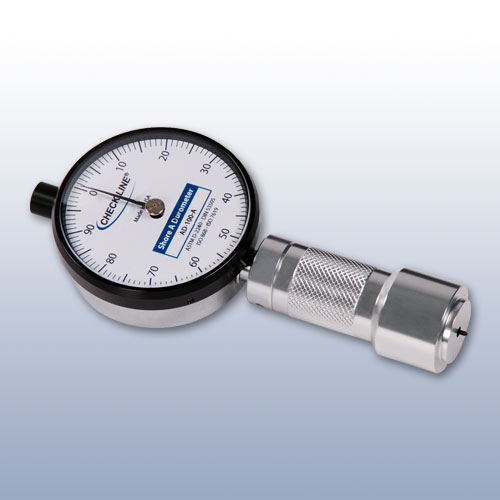

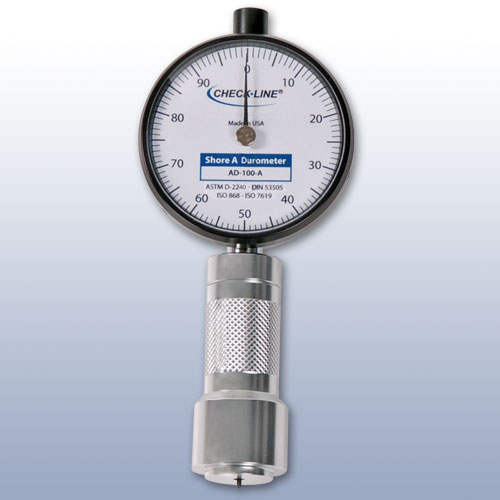

AD-100 Precision Durometer

Available Scales: A, B, C, D, DO, O, OO & Asker C
Conforms to: ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.

The new Check-Line AD-100 analog durometer is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the AD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

Seven models are available each calibrated for a different Shore scale including; Shore A, Shore B, Shore C, Shore D, Shore DO, Shore O, Shore OO and Asker C.

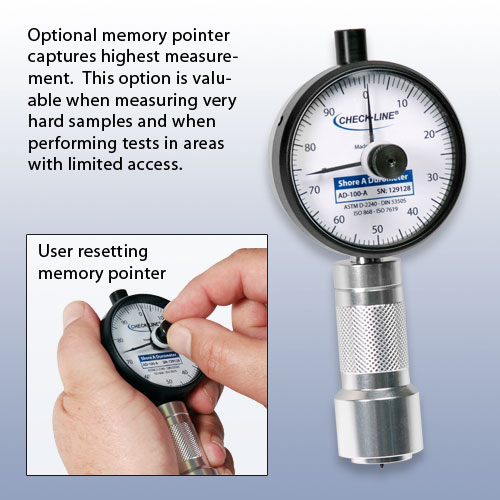

AD-100 Durometer with optional memory pointerThe AD-100 displays hardness readings on an easy-to-read analog scale calibrated in 0 to 100 Shore units. An optional MEMORY POINTER holds reading until manually reset, allowing operator to concentrate on measurement task. Also valuable if used in a position where dial is obstructed.
Note: Optional Memory Pointer is unable to be used with Type OO durometers.

All AD-100 models are supplied in a foam-fitted protective carrying case along with NIST traceable calibration certificate.

Made in USA

Easy To Operate

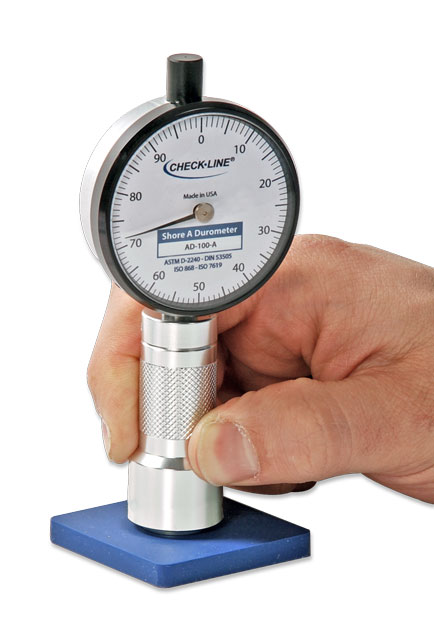

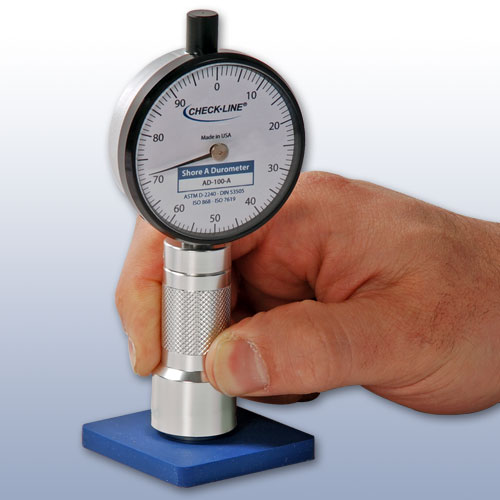

AD-100 operation demonstration

Features

  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 and ISO 7619. Asker C model conforms to JIS K-7312.
  • 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
  • 1-Year Warranty
  • Can be used in any measurement orientation as gravity does not affect readings

Related Products

DD-100 Digital Durometer
Click image for more info
Digital Precision Durometer
- High and low buttons for setting tolerance limits
- Holds Peak reading until reset
- 0.1 Unit Resolution
- Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Dimensions

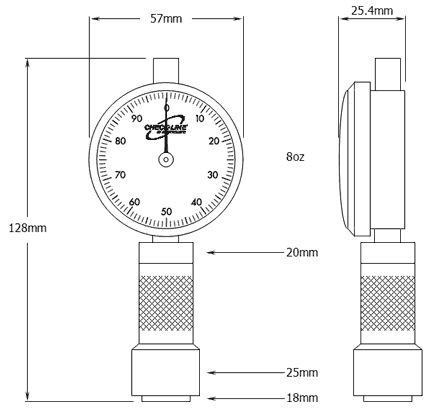

AD-100 Durometer Dimensions

Complete Kit

The AD-100 is supplied as a complete kit including the durometer, instruction manual and calibration certificate in a foam-fitted metal carrying case. AD-100 Duroemter is supplied in a fitted carrying case

Specifications

Measuring Range0 - 100 units
Accuracy*±1 durometer unit (A,B,C,D,O,DO & Asker C)
±2 durometer units (OO)
Dial Size50 mm Diameter
Dimensions128 x 57 x30 mm
Weight200 grams (7 ounces)
Warranty1 year
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
Conforms toASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.
Conformance to International Standards
ModelASTM D2240DIN 53505ISO 868 ISO 7619 JIS K-7312
AD-100-AXXX X X
AD-100-BX
AD-100-CX
AD-100-DXXX X X
AD-100-DOX
AD-100-OX
AD-100-OOX
AD-100-ASK-C   X

Downloads

Data Sheet Click here to downloadDimension Drawing Click here to download PDF
Instruction Manual Click here to download

Buy Now

  Item Price Description
Check the items you would like to purchase then click "Buy Now"
AD-100-A$395.00Type A Durometer with Analog Display
AD-100-B$440.00Type B Durometer with Analog Display
AD-100-C$440.00Type C Durometer with Analog Display
AD-100-D$395.00Type D Durometer with Analog Display
AD-100-DO$440.00Type DO Durometer with Analog Display
AD-100-O$440.00Type O Durometer with Analog Display
AD-100-OO$440.00Type OO Durometer with Analog Display
AD-100-ASK-C$440.00Asker C Durometer with Analog Display
Accessories
Memory$100.00Add Memory Pointer to Durometer (Not OO or OOO)
TB1-A$45.00Type A Test Block, Approx 72A (Uncertified)
TB1-D$45.00Type D Test Block, Approx 82D (Uncertified)
RX-CLW-OO$95.00Constant Load Weight for OO and OOO Durometers
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
