DISCONTINUED, Replaced by DTXS

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD

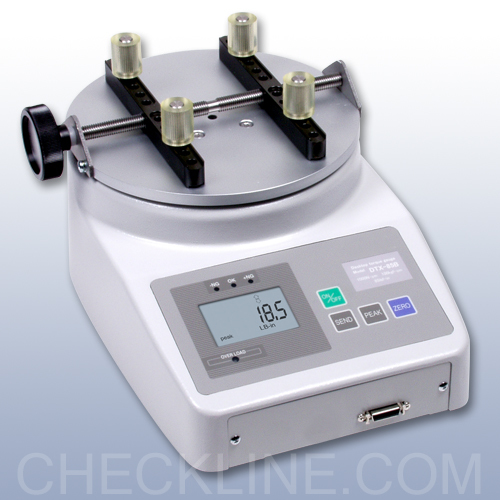

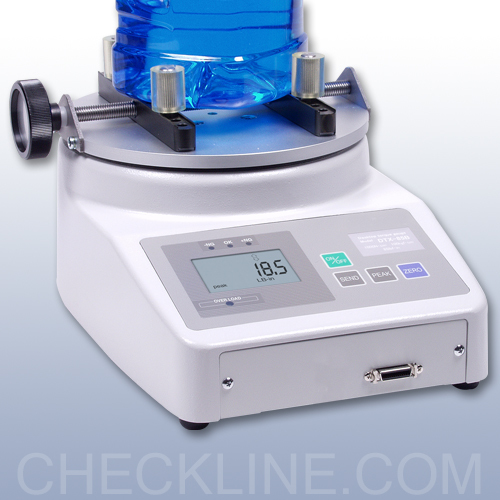

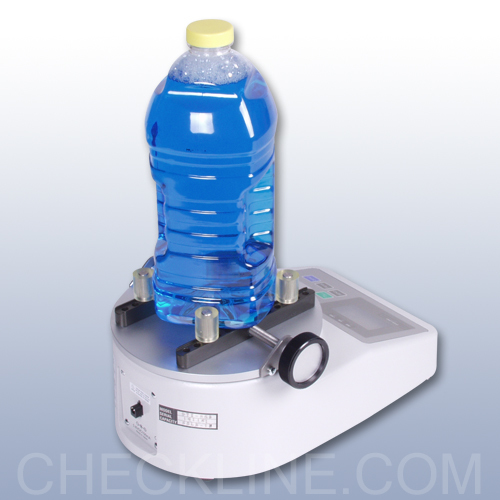

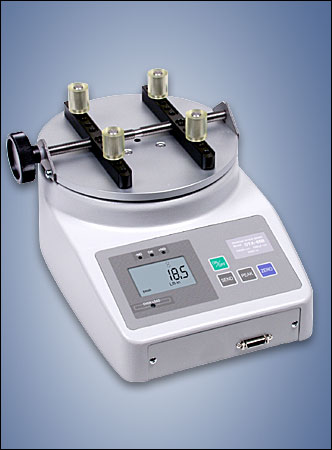

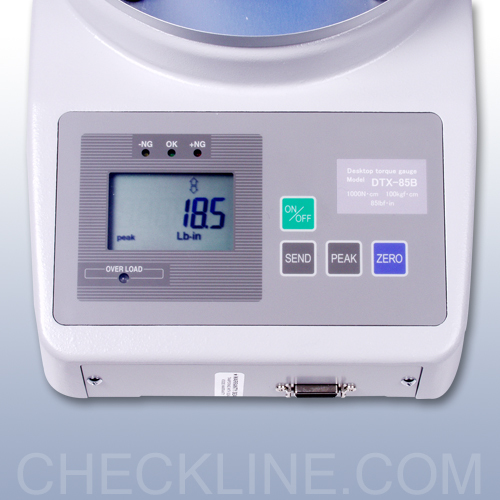

The new easy-to-use Check-Line DTX2 cap torque tester accurately measures twist on and twist off force. The tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the serial output. Use the real time mode to display torque transients, or peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 1" high standard pegs (optional long pegs available).

Features

  • 2 Year Warranty
  • Suitable for containers from 1/2" - 7" (13 - 178mm) in diameter
  • lbf-in, kgf-cm, and N-cm units are selectable
  • Real time and peak mode (selectable)
  • 1000 Data memory for computer download
  • Includes NIST-Traceable calibration certificate
  • Overload capacity 200% of F.S.
  • Both clockwise and counterclockwise operation
  • Can be operated with internal rechargeable battery or AC adapter
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

Force Ranges

ModelCapacity
lbf-in
Capacity
kgf-cm
Capacity
N-cm
DTX2-15B15.00 (0.01 lbf-in)20.00 (0.01 kgf-cm)200.0 (0.1 N-cm)
DTX2-40B40.00 (0.01 lbf-in)50.00 (0.01 kgf-cm)500.0 (0.1 N-cm)
DTX2-85B85.00 lbf-in
(0.1 lbf-in)
100.0 kgf-cm
(0.1 kgf-cm)
1000 N-cm
(1 N-cm)
Accuracy: ±0.5% F.S. ±1 LSD (Resolution)

Typical Torque Values (LB-IN)

Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 8 4 6 3 12 7 8 4
18 9 5 7 4 13 8 9 5
20 10 5 8 4 15 9 10 5
22 11 6 9 5 17 10 11 6
24 12 6 10 5 18 11 12 6
28 14 7 12 6 21 12 14 7
33 18 9 15 7 24 14 17 8
38 20 10 17 7 29 17 19 9
43 22 11 18 9 33 20 22 11
48 24 14 20 10 26 22 24 12
58 28 14 24 12 44 26 29 14
70 35 18 28 14 52 32 35 17
89 45 22 36 18 65 40 45 22
100 50 25 40 20 75 38 50 25

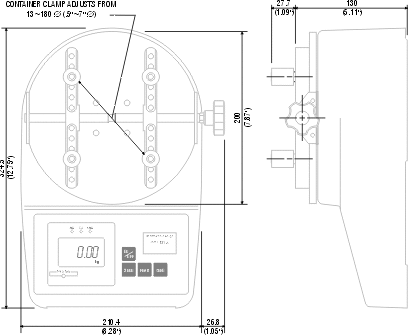

Dimensions

Related Products

DTXS Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- Test cap loosening (CCW) and tightening (CW) torque
- 1000 data point memory capacity
TNP Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- ±0.5% F.S. Accuracy
- USB interface including FREE Digitorq Software
Imada sbk cap torque tester calibration wheel
Click image for more info
Calibration Fixture for DTX2 Cap Torque Tester

Specifications

Max Sample Diameter1/2" - 7" (13 - 178mm)
Gross Shipping Weight14 lbs
Shipping Dimensions17 x 13 x 10" (approx.)
Pegs1" (standard)
4" (optional)

Downloads

Buy Now

Item Description Price
Cap Torque Tester Replaced by DTXS - Please contact us for pricing and availability.
$
Cap Torque Tester Replaced by DTXS - Please contact us for pricing and availability.
$
Cap Torque Tester Replaced by DTXS - Please contact us for pricing and availability.
$
Accessories
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$220.00
SW-1X
Data Acquisition Software for Force / Torque Gauges
$242.00
DTX2-1PEG
1" pegs (Set of 4)
$100.00
DTX2-4PEG
4" pegs (Set of 4)
$220.00
CB-204
RS232 Serial Output Cable
$93.50
U-1124ST
Printer for DTX2, Requires CB-204 Cable and DB-1XP Baud Rate Converter
$420.00
DB-1XP
Baud Rate Convertor Button
$145.00
Calibration Fixture for DTX2 (requires load weight sold separately)
$0.00
ADS-100/120A
Replacement AC Adapter / Power Supply, 115V
$85.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
