CTM
Cable Tension Meter |
2 Models
CTM-2000 - 2000 lb / 10 kN / 1000 kg
CTM-10000 - 10000 lb / 45 kN / 4500 kg
Max Cable Diameter - 1" (25.4mm)

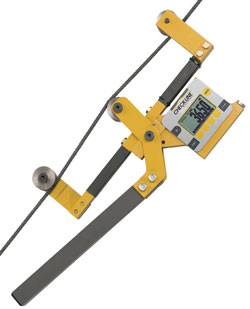

The Check-Line Type CTM Digital Cable Tension Meter quickly measures tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in seconds. The digital loadcell is highly accurate and requires no lookup or correction tables.
The Fastest Cable Tension Meter

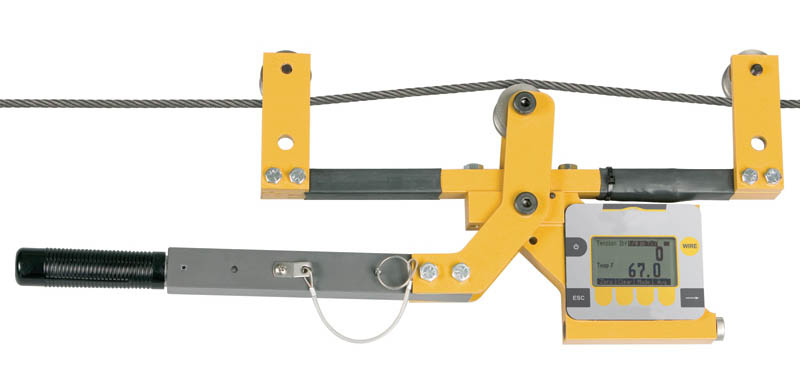

The CTM can be placed on a cable, measure its tension, and removed in under five seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 15 different cable sizes and types stored in the CTM's memory. The Check-Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.
Broad Application
The CTM can be employed in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, pretensioned cable barriers, bridges, elevators, winch rope, prestressed concrete, fall arrest systems, aircraft cables and utilities.
 |
 Includes NIST Calibration Certificate | | 2 Year Warranty | | Time saving check-tensioning mode | | Portable and rugged – designed for outdoor use |
| | Built-in averaging saves time and eliminates errors | | Stores calibrations for up to 15 unique wire sizes and types up to 1 inch max. (25 mm) | | Built-in temperature sensor with patented automatic tension adjustment |
|
|
SY
Cable / Wire Rope Tension Meter |  |
Rugged Cable / Wire Rope Tension Meter | | Click image for more info
|
Suggested wire calibrations:
Calibrate each cable diameter installed with the most appropriate sheaves. If two cable types are used of the same diameter (e.g. ½” 7x7 and ½” 6x19), calibrate each type independently if accuracy is critical.
Recalibration:
At user discretion. Commonly 24 months but should be more frequently with heavy use. Factory recalibration conducted typically in 2-4 days.
Custom Calibration Available
The CTM can be calibrated with a customer supplied sample if none of the factory calibrated materials are suitable. In this case a 10 ft. sample must be supplied (non-returnable).

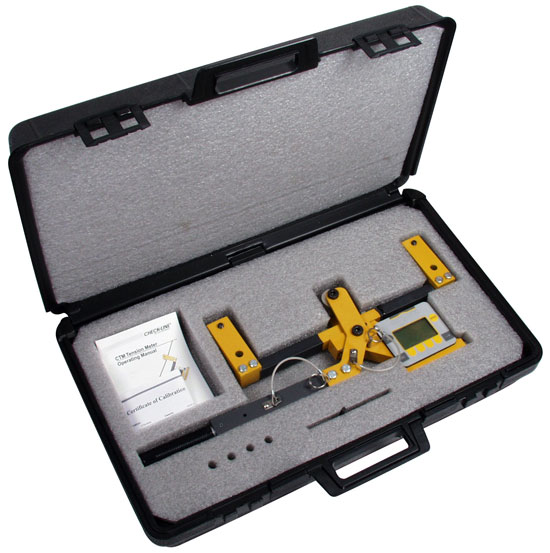

Heavy duty plastic construction with custom foam inserts to secure the CTM tension meter and accessories. HIGHLY RECOMMENDED.
|
| Capacity |
CTM-2000 - 2000 lb / 10 kN / 1000 kg
CTM-10000 - 10000 lb / 45 kN / 4500 kg |
| Wire sizes |
3/16 inch through 1 inch (4.75 - 25mm) |
| Accuracy |
±3% instrument capacity
|
| Resolution |
configurable low / med / high |
| Number of calibrations |
Up to 15 can be stored independently |
| Operating Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Loading error |
Cable elongation of only 0.08 inch (2mm) |
| Display |
Dot-graphic LCD display
supports full text and 1 inch high digits |
| Sheave range |
Sheave accommodates rated cable size and 1/2” smaller. Sheaves are not compatible with larger wire sizes – order additional sheaves for wire sizes. |
| Units Of Measure |
pound-force, kilogram force, Newtons |
| Environment protection |
Suitable for continued outdoor use |
| Dimensions |
10 x 23 x 3 inch (25 x 59 x 8 cm) |
| Weight |
Approx 11 lb (5 kg) |
| Warranty |
2 Years |
What Size Sheaves should be Purchased?
Three sheave sizes are available. For most applications one sheave set for the entire
assortment of wire they tension will be sufficient. If you need to check tension
in both 3/16" and 3/4" rope, then they should order two sheave sets. The operator
must use the appropriate sheave set for the wire size and calibration stored. Changing
sheaves sets takes about two minutes with the included wrench.
Calibrations Samples on hand:
Wire
Diameter |
Wire
Construction |
|
Inch |
1x6 |
1x7 |
1x19 |
3x7 |
6x7 |
6x19 |
6x26 |
6x36 |
6x37 |
7x19 |
8x19 |
19x7 |
|
3/16 |
|
X |
X |
|
|
X |
|
|
|
X |
|
|
|
7/32 |
|
|
|
|
|
|
|
|
|
X |
|
|
|
1/4 |
|
X |
X |
|
|
X |
|
|
|
X |
|
X |
|
5/16 |
|
X |
|
|
|
X |
|
|
|
X |
|
X |
|
3/8 |
X |
X |
X |
|
|
X |
|
|
X |
X |
X |
X |
|
7/16 |
|
X |
|
|
|
X |
|
X |
X |
|
X |
|
|
1/2 |
X |
X |
X |
|
|
X |
X |
X |
|
X |
|
X |
|
9/16 |
|
X |
X |
|
|
X |
X |
|
|
|
|
|
|
5/8 |
|
X |
X |
|
|
X |
|
X |
X |
|
X |
X |
|
11/16 |
|
|
X |
|
|
|
|
|
|
|
X |
|
|
3/4 |
|
|
X |
X* |
|
X |
|
|
|
|
|
|
|
7/8 |
|
|
X |
|
|
X |
|
|
|
|
|
|
|
1 |
|
|
X |
|
|
X |
|
|
|
|
|
|
|
1 1/4 |
|
|
|
|
|
X |
|
|
|
|
|
|
|
MM |
1x6 |
1x7 |
1x19 |
3x7 |
6x7 |
6x19 |
6x26 |
6x36 |
6x37 |
7x19 |
8x19 |
19x7 |
|
6 |
|
X |
|
|
X |
|
|
|
|
|
|
|
|
8 |
|
|
|
|
|
X |
|
|
|
|
|
|
9 |
|
X |
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
X |
|
|
|
|
X |
|
11 |
|
|
|
|
|
|
|
|
|
|
X |
|
|
12 |
|
|
|
|
|
X |
|
|
|
|
X |
|
13 |
|
|
|
|
|
|
|
|
|
|
X |
|
|
14 |
|
|
X |
|
|
|
|
|
|
|
X |
|
|
16 |
|
|
X |
|
|
X |
|
|
|
|
X |
|
|
20 |
|
|
|
|
|
|
|
|
|
|
X |
|
| * = Pre-stretched
|
ACSR Cable - #2, #4, 1/O, 2/O, 4/O, 336 Oriole, 397, 556, 563 Penguin, 743 Chickadee, 997 Petunia, 795 Drake
Calibration load may be changed if desired. Higher calibration loads are limited
by max. capacity of the sling. If the desired wire size/type does not appear, customer
may supply 10 ft. sample of wire to determine if a custom calibration sling can be created (non-returnable).
Consult factory for details.
Ordering Example
CTM-10000 - $1,895.
CTM-SH-S - $200.
First Calibration - No Charge
Second Calibration - $75.
Each Additional Calibration - $75.
(15 separate calibrations maximum)
CTM-10000 Cable Tension Meter, includes calibration on one factory sample.
SPECIFY diameter and wire construction. |
|
|
