TS2H Online Tension Sensor

Made in Germany

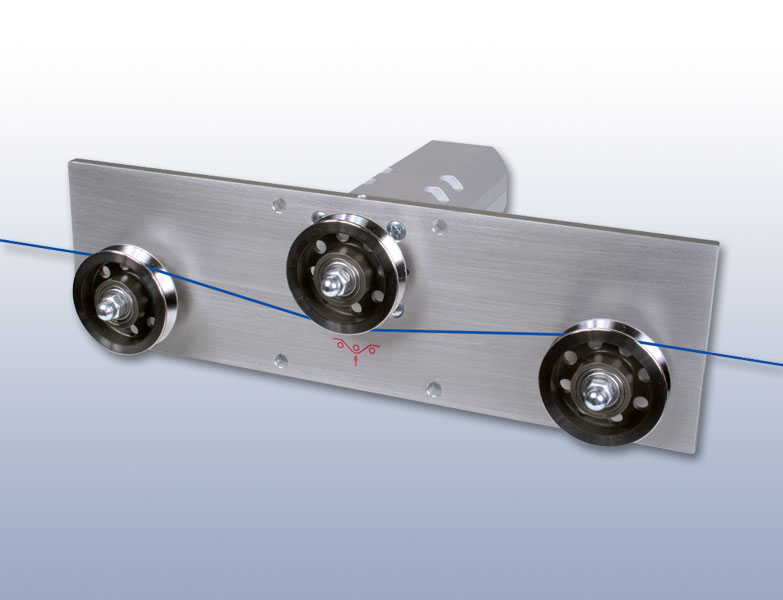

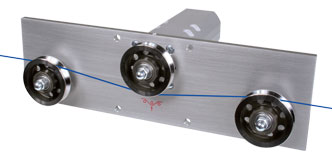

TS2H Online Tension Sensor
Click images to enlarge.
TS2 mounting drawingHeavy-Duty Tension Sensor wires, cables, tirecord and similar process materials.
7 tension ranges from 0 - 1000 g to 0 – 100 kg

Newly-designed tension sensor accurately measures the running tension of wires, cables, tirecord, plastic tubing and similar process materials up to 8 mm diameter (0.300"). Fitted with 29.5 mm diameter V-Grooved rollers fabricated from hardened steel are suitable for material speeds up to 4000 meters.min. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Can be using for process diagnostics, for continuously monitoring and recording of online tensions. The TS2 Tension Sensor can also be used as part of a closed-loop control system with 3rd-Party controller.

Mounting possibilities: Sensor can be mounted on a flat plate using the supplied thru holes in the housing body or fixed using the holes in the front plate, inserted thru a round hole in machine frame or plate.

Features

  • Strain Gauge-based sensor provides accuracy of 1.5% Full Scale or better. Sensor can be mounted in any orientation depending upon the material path.
  • Built-in Signal Conditioner provides 0-1 V DC Analog Output with Integrated Zero & Gain Pots on rear-side of sensor allowing for convenient calibration by the end-user for highest accuracy
  • Optional output types include 0-10V DC, 4-20mA, RS-232, USB or WiFi
  • 29.5 mm diameter Ball-Bearing mounted V-grooved guide rollers are fabricated from Hardened Steel. Optional roller types can be specified including U-Grooved, larger diameters and more
  • Cast Aluminum Housing is rugged and proves for easy installation using thru holes in housing body or front plate
  • Can be used together with SC-PM Digital Tension Indicator or with user-supplied electronics (requires 15-24 V DC regulated power).
  • 3-Roller design insures that the center sensor rollers has the same wrap angle at all times which allows the sensor to be mounted in any position on the line
  • Outer roller spacing changes from 100 mm for ranges up to 5 Kg, to 150 mm for ranges up to 10Kg and 200 mm for ranges up to 50Kg.
  • Custom-designs are possible along with special features such as air fitting to create positive internal pressure in the housing for protection against airborne chemicals or contaminants

Tension Ranges

ModelRange*Measuring
Head Width
**Calibration
Material
TS2H-1K0 - 1000 g150 mmPA: 0.30 mm
TS2H-2K0 - 2000 g150 mmPA: 0.50 mm
TS2H-5K0 - 5 kg150 mmPA: 0.80 mm
TS2H-10K0 - 10 kg200 mmPA: 1.00 mm
TS2H-20K0 - 20 kg250 mmPA: 1.50 mm
TS2H-50K0 - 50 kg250 mmsteel rope 1.50 mm Ø (7x7x0.20)
TS2H-100K0 - 100 kg250 mmsteel rope 3.00 mm Ø (6x7x0.30)
Other tensions ranges and measuring head widths available on request.

* Outside dimensions of front plate
** Suitable for 95 % of applications
PA = Polyamide Monofi lament

Guide Rollers

Standard Guide Roller
Hardended Steel
For line speed up to max. 4000 m/min
Code R1 Guide Roller
Hard crome-plated steel (radius R5)
For line speed up to max. 4000 m/min
Code B6 Guide Roller
Hardended Steel
Width: 6 mm
For line speed up to max. 2000 m/min
Code B10 Guide Roller
Hardended Steel
Width: 10 mm
For line speed up to max. 2000 m/min
Click images to enlarge.

Output Signal Models

Standard 0 - 1 V DC (analog)
Option Code DC: 0 - 10 V DC
Option Code MA: 4 - 20 mA
Option Code 232: RS-232

Related Products

Click image for more info
Digital Tension Indicator
- Can be scaled to any engineering units desired with user-set decimal point.
- 4-20 mA analog output for recording and control purpose (No analog output provided on PD765-6R5-10)
- Requires 85-265V AC Power, provides regulated power for the tension sensor
SC-PM Tension Sensor Indicator
Click image for more info
Tension Indicator with Color Display
- User set limits (Min and Max alarms) with Visual Indicator in LCD with Open Collector output for external signal
- Adjustable damping to reduce tension fluctuates
- Storage for 4 different material calibrations (standard + 3 customer supplied materials)
SC4-PM Panel mount digital display unit
Click image for more info
Panel mount digital display unit
- Panel mount display unit (1/4 DIN IEC 61554 cutout – 91.5 x 91.5 mm)
- Suitable for connecting a maximum of 4 sensors (different ranges are possible) with analog output 0 – 1 V DC or optional series without integrated amplifier (output mV/V)
SCD-1 Tension Indicator
Click image for more info
Display Unit
Click image for more info
Data Transfer & Analysis Program
- Data can be viewed and analyzed in TensionInspect or transferred to Excel
- Selectable sample rates up to 200 Hz and scalable trend graph "x" and "y" axis

Downloads

Specifications

Accuracy± 1.5% Full Scale and 1 digit or better
Overload Protection100% of tension range (200% total)
Measuring PrincipleStrain guage bridge
Meas. Roller Defelction0.5 mm, max
Output SignalStandard: 0 - 1 V DC (analog)
Option DC: 0 - 10 V DC
Option MA: 4-20 mA
Option 232: RS-232
USB Output (Option "-USB)USB Connection direct to Windows PC (requires TensionInspect Software, SW-TI3)
Supplied with 3 meter USB-A to USB-B Cable. If USB Cable longer than 5 meters is required, a USB Signal Booster is required.
Frequency Response30Hz (custom frequency response up to 100 Hz available as an option)
Temperature DriftLess than ± 0.1% Full Scale / °C
Temperature Range10 - 45 °C
Air Humidity85% RH, max
Power Required+15 ... 24 V DC, 50 mA (regulated)
Housing MaterialAluminum
WeightApprox. 500 g
Delivery IncludesStraight Connector with 2 meter cable length (6 ft) with open ends on far side (order p/n TS2-CABLE-2M). Other cable lengths and 90-Degree Connector available, INQUIRE.
Connection to PD765SIGNAL:Grey (Sig+) to V+, Blue (Sig-) to COM
DC-POWER: White (Exc+) to P2+, Black/Brown (Exc-) to P2-
