TI-25P
Programmable Ultrasonic Wall Thickness Gauge |
 Measuring Range in Steel
0.040 - 6.000 inches
1.00 - 150.0 mm
The CHECK-LINE TI-25P Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion from only one side!

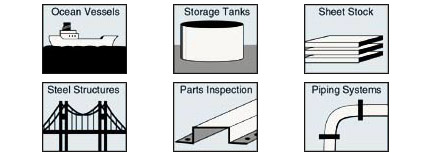

 The TI-25P holds a single ultrasonic velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work.
Standard configuration: In its standard configuration, the TI-25P is factory set to measure steel.
Optional configuration: When required the TI-25P can be programmed to measure any other single material instead of steel. In order to program the gauge for use on any other material then factory steel, a sample of the material to be measured is required or the exact sound velocity of the material must be known.
|
 Resolution of 0.001 inch (0.01 mm) | | The TI-25P probe is waterproof and can be submerged in water | | Special-purpose probes are offered for a variety of applications | | Switch-selected units for inches or mm |
| | The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions | | For underwater surveying, probe cable lengths up to 15 meter are optionally | | Large, backlit LCD display retains last reading | | Comes complete with cable and software to transfer the velocity to the gauge. |
|
|
CF12
Coupling Fluid |  |
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | Click image for more info | | ___________________________________________ |
|
NIST-Traceable Steel Test Block
3 Sizes Available |  |
Precision Machined and Finished Includes NIST-Traceable Report and Test Data | | Click image for more info | | ___________________________________________ |
|
Uncertified Steel Test Block
For Ultrasonic Gauges |  |
For convenient confirmation of thickness gauge calibration | | Click image for more info | | ___________________________________________ |
|
TICC-M
Protective Holder for Ultrasonic Gauges |  |
Constructed from heavy duty Cordura Nylon | | Click image for more info | | ___________________________________________ |
|
TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  |
| | Click image for more info | | ___________________________________________ |
|
V-Block
Transducer Holder |  |
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | Click image for more info | | ___________________________________________ |
|
DataComm
Software |  |
Free data acquisition software | | Click image for more info
|
| | | | The TI-25P is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
For setting the ultrasonic velocity, a connection cable and software are supplied |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
| Range in Steel |
0.040-6.000" (1.00-150.0 mm) with supplied probe. Other probes available. |
| Resolution |
0.01 millimeter (0.001 inch) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Velocity Range |
1250 to 10,000 meters/sec (.0492 to .3937 in/µs) |
| Probe |
1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Probe Wearface |
PEEK (Polyethylethylkytone) |
| Cable |
1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| Temp. Limits |
Ambient: -30 to 50° C (-20 to 120° F)
Material: -20 to 100° C (0 to 200° F)
Special high temperature probes are optionally available |
| Battery Type |
Two AA batteries |
| Battery Life |
200 hours |
| Weight |
280 g (710 ounces) |
| Dimensions |
64 x 114 x 32mm (2.5 x 4.5 x 1.25") |
| Accessories |
Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Software |
Comes complete with cable and software to transfer the velocity to the gauge. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
