TI-25S
Ultrasonic Wall Thickness Gauge |

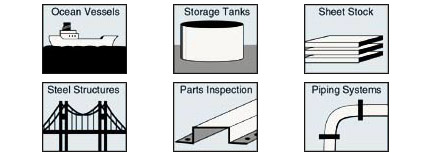

 The TI-25S is ideal for the person that tests a few different materials regularly. The TI-25S contains 8 velocities of the most common materials (refer to complete list of Materials below) and two velocities that the user can set using a simple software program.
The tool's backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries.
The TI-25S comes complete, ready to use, and is protected by our 5 year limited warranty.
Velocity Settings
The TI-25S has 8 preset velocities and 2 custom velocities allowing the user to customize it for specific applications, or to tune the calibration to be optimized for a specific type of material. Each time the "MATL Key" is pressed the velocity will toggle from one to the next in a circular pattern. The list of preset velocities are as follows:
- 1. Aluminum 2024 (0.251 in/µs )
- 2. Stainless Steel 303(0.223 in/µs )
- 3. Steel4340 (0.233 in/µs)
- 4. Cast Iron (0.179 in/µs )
- 5. Plexiglass (0.106 in/µs )
- 6. PVC (0.094 in/µs)
- 7. Polystyrene (0.092 in/µs)
- 8. Polyurethane (0.070 in/µs)
- 9. Custom 1
- 10. Custom 2
Note: If the Custom 1 & 2 are needed, they are set using the PC software (free) & downloaded to gauge using the data cable (optional, p/n N-306-0010) |
 Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions. | | Measurements displayed in inches, inches/microsecond, millimeters, and meters/second. | | Measures from 0.040 to 6.000 inches (1.00 to 150.0 millimeters) switch to select English or metric units. |
| | Four readings per second for single point measurements. | | 8 pre-set velocities and 2 custom velocities | | Ability to change between velocities without the use of computer software |
|

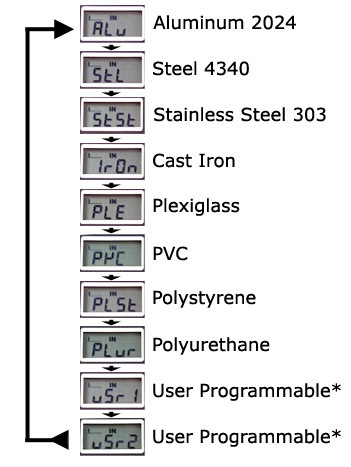

Each time the "Matl" key is pressed, the material type (calibration setting of the acoustic velocity) changes from one type to the other. The abbreviations, description and sequence is shown below.
*Note: If the Custom 1 & 2 are needed, they are set using the PC software (free) & downloaded to gauge using the data cable (optional, p/n N-306-0010) |
| | | The TI-25S is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, PC-based Software, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
DATA CABLE MUST BE ORDERED SEPARATELY TO PROGRAM USER #1 and #2 CUSTOM VELOCITIES |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
|
NIST-Traceable Steel Test Block
3 Sizes Available |  |
Precision Machined and Finished Includes NIST-Traceable Report and Test Data | | Click image for more info | | ___________________________________________ |
|
Uncertified Steel Test Block
For Ultrasonic Gauges |  |
For convenient confirmation of thickness gauge calibration | | Click image for more info | | ___________________________________________ |
|
TICC-M
Protective Holder for Ultrasonic Gauges |  |
Constructed from heavy duty Cordura Nylon | | Click image for more info | | ___________________________________________ |
|
CF12
Coupling Fluid |  |
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | Click image for more info | | ___________________________________________ |
|
V-Block
Transducer Holder |  |
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | Click image for more info | | ___________________________________________ |
|
DataComm
Software |  |
Free data acquisition software | | Click image for more info | | ___________________________________________ |
|
N-306-0010
Transfer Cable |  |
| | Click image for more info
|
| Measuring Range |
0.040 to 6.000 inches
1.00 to 150.0 millimeters
depends on material and probe used |
| Range in Steel |
0.025-6.00" (0.60-150.0 mm) |
| Resolution |
.001" (0.01 mm) |
| Velocity Range |
.0492 to .3937 in/µs
1250 to 10,000 meters/sec |
| Dimensions |
2.5 W x 4.75 H x 1.25 D inches |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Probe |
1/4", 7.5 MHz, actual wearface is 3/8" (10 mm)
Probe P/N: T-102-3300 |
| Cable |
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. |
| Battery Type |
Two 1.5V alkaline or 1.2V NiCad AA cells. |
| Battery Life |
Typically operates for 200 hours on alkaline and 130 hours on NiCad. |
| Weight |
10 ounces (283 g) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
