DHT-2
Digital Textile Moisture Meter |

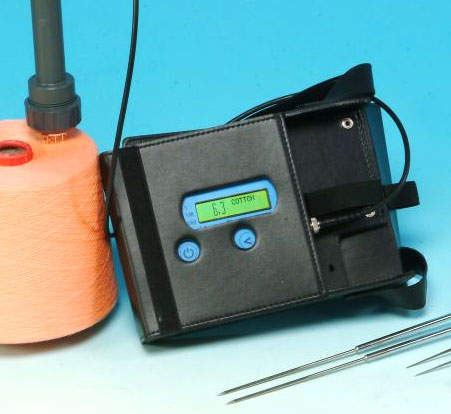

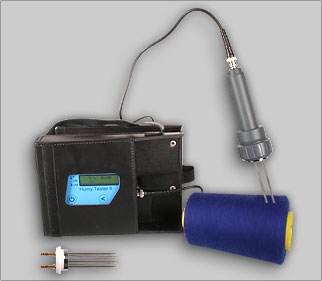

The new DHT-2 Textile Moisture Meter instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material.
17 stored measurement scales for the following materials: wool ,rayon, cotton, linen, nylon, acrylic, polyester, 50% wool-50%cotton, 60% cotton-40% PES, 70%pac-30% wool, 67%pac-33% cotton, 70%PES-30% wool, 70%pes-30%rayon, 67% PES-33% cotton, 50% PES-50% cotton, 50%PES- 50% rayon, 50%pes-50%pac
The DHT-2 Moisture Meter is supplied with probe holder, connection cable in carrying case, probes must be ordered separately
 |
 Instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material. | | Easy to use for many applications | | 17 stored measurement scales |
| | Portable, battery-operated | | 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures | | High accuracy and repeatability |
|
 |
418
8-pin electrode 6 cm long for
spools and bobbins |
 |
414
2-pin electrode 10 cm long for
hanks
|
 |
412
2-pins electrode 30 cm long for
cotton and
wool bales |
 |
416
Roller electrode for fabrics
|
 |
422
Set of 2 different calibration electrodes with fixed moisture values. Needed for varification and re-adjusting of the instrument.
|
 |
428
To measure room temperature °C and RH %. Useful parameters to check the balance condition of the materialunder testing. Length 170 mm, weight 60 g
|
|
|
TEM-1
Textile Moisture Meter |  |
Easy to use for many applications Multiple scale for direct readings for wool, rayon and cotton | | Click image for more info
|
| | | | Moisture Meter supplied with probe holder, connection cable in carrying case, probes must be ordered separately |
 |
| Accuracy |
±1% |
| Accuracy of Reading |
0.1 |
| Dimensions |
6.3" x 3.3" x 1.9"
(160 x 83 x 30mm) |
| Weight |
.7 lbs (300 grams) |
| Power Supply |
9V battery |
| Auto Power Off |
2 minutes |
|
|
