TS621
Strain Gauge Amplifier |

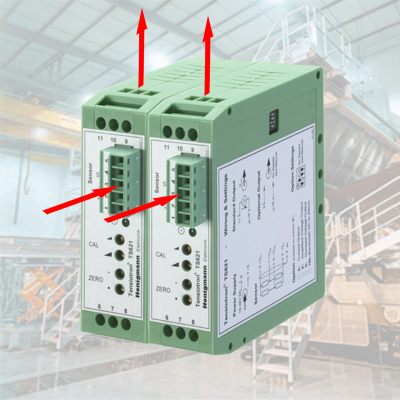

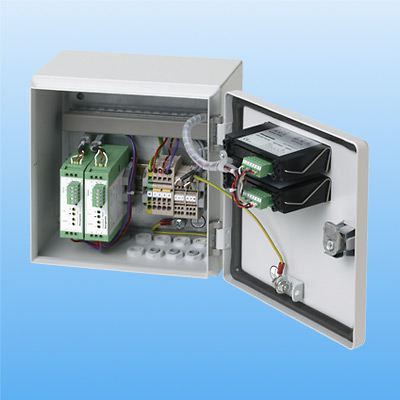

The TS621 Electronic Strain Gauge Amplifier provides outstanding signal conditioning capabilities suitable for use with most strain-gauge-based sensors. It is supplied in a DIN-Rail housing for convenient snap-in installation.
TS621 performance features include galvanic isolation, regulated power supply for the sensor, coarse and fine calibration adjustments, screw terminals for power and analog outputs, with a removable terminal block for the sensor input.
|
 Designed for use with a wide range of strain-gauge-based force, load and tension sensors
| | Galvanic Isolation minimizes the chance for signal interference, including ground faults | | 0-10VDC analog output
| | Provides accuracy of ±0.1% |
| | Operating input power supply of 19-36 VDC, non-regulated | | Includes excellent overload and reverse-polarity protection | | Provides a well-regulated power supply of 10 VDC for sensor |
|
|
RFS
On-Line Tension Sensor |  |
Resolution of 0.1% and better Rugged stainless steel housing is environmentally sealed
Overload protection up to 800% | | Click image for more info | | ___________________________________________ |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | Click image for more info | | ___________________________________________ |
|

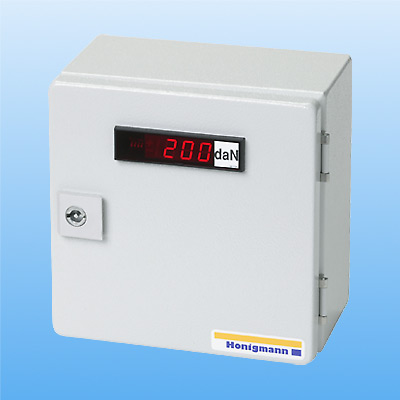

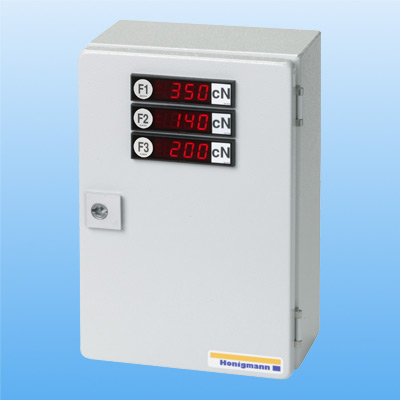

MU621
Tension Indicator/Amplifier Console |  |
for strain gauge sensors 1 to 4 measuring channels | | Click image for more info | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | | Click image for more info
|
TS621HD
High Dynamic Amplifier |
 |
Intended for amplification of high frequency sensor signals
Large gain bandwidth; DC to 20kHz
24V DC power supply
Galvanic Isolation
|
| |
Click image for more info
|
|
| Sensor Types |
Strain Gauge, full bridge |
| Impedance Range |
Minimum 150 Ohms |
| Overall Accuracy |
0.1% (any portion of the range) |
| Power Source Required |
19 to 36 VDC (24 VDC, typical)
Optional: 9 to 18 VDC (12 VDC, typical) |
| Power Supply to Sensor |
10 VDC, regulated (±5 VDC referenced to ground) |
| Calibration Range |
38 to 580% |
| Output from TS621 |
0-10 VDC (standard) |
| Optional Outputs |
Current (option A), 0-20/4-20 mA, user set
Amplified voltage (option X),2X, 3X, 4X, 5X
amplification, user set

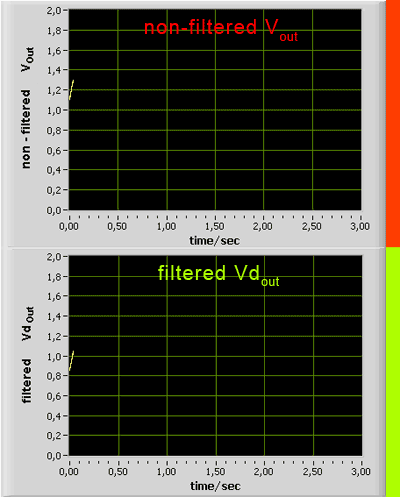

Damped voltage (option D) at 4 seconds |
| Isolation between I/O |
Galvanic Isolation using integrated DC-DC converter between input power & output signals |
| Power Consumption |
100 mA @ 24 VDC |
| Operating Temperature |
32 to 140 °F (0 to 60 °C) |
| Connector Types |
Screw Terminals |
| Dimensions |
3.1" (H) x 1" (W) x 3.7" (D) (80 x 25 x 95mm) |
| Weight |
4 ounces (100 grams) |
| Mounting Style |
DIN-Rail Snap-In Installation (DIN-rail not provided) |
|
|
)
)
)
