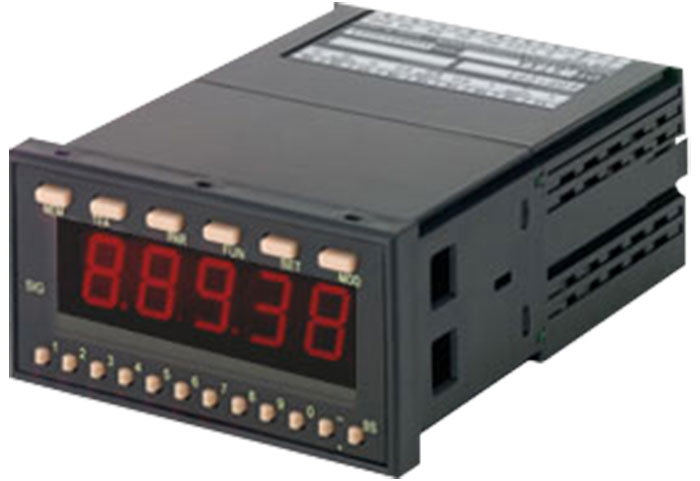

DT-5TXR Panel Mount Tachometer

Made in Japan
Click images to enlarge.
The DT-5TXR panel meter with optional output Modules is an economical unit for speed and process time monitoring when combined with a compatible in-line sensor. Loaded with features found in more expensive units, the DT-5TXR Panel Meter is extremely versatile with selectable inputs. The DT-5TXR is fully scalable and possesses three selectable modes allowing it to measure RPM/linear speed/rate, elapsed time and process time. Each panel meter accepts a variety of signal inputs from any sensor providing an NPN, contact, sine wave, or square wave such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors and NPN OC transistors. Typical applications can range from machining operation timing, rate of change monitoring such as on a conveyor, elapsed time of oven curing etc. with any variety of compatible sensor inputs desired. The DT-5TXR panel meter also accepts various output modules, enabling it to output data for analysis, record keeping or assist in controlling the process through a separate control device. Up to two modules can be accepted simultaneously, offering an enormous number of combinations and options.

Features

  • Large 6 digit LED display plus two smaller 6 digit secondary displays allow easy viewing from greater distances
  • Highly accurate (± 0.008% ± 1 digit) makes ideal for process control and analysis
  • Selectable update time allows operator to speed up/slow down display changes to facilitate process
  • Selectable decimal point enables higher resolution display potential 1/8 DIN size panel cut out permits easy, industry-standard mounting
  • Great versatility with multiple sensor input capability in one unit: NPN open collector, contact and square or sine wave sensor inputs
  • Accepts up to two output modules allowing voltage, current, BCD, NPN & relay output combinations for control or remote process monitoring
  • IP66 front cover protection keeps water out, enables usage in compatible plant wash-down operations
  • Wide power range (85 – 264VAC, 50/60Hz) eliminates need for having to purchase and wire an additional power transformer.
  • Scalable programming gives user the flexibility to set up and monitor virtually any process
  • 24V DC-Powered model available, DT-5TXR-DC
  • DC power source output to power compatible sensors saves money by eliminating need for separate power supply
  • Front cover protection eliminates accidental bumping of keypad to incorrect program
  • Up to two (2) Optional Output Modules can be used simultaneously

Plug-In Modules

Module Description
DOP-BCD BCD output module, 36 Pin Connection
DOP-CPTR Relay output module, terminal block connection
DOP-FVCR Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), 36-pin connection
DOP-FVTR Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), terminal block connection
DOP-RMTR Ratio input module, terminal block connection
DOP-TRCR NPN open collector output module, 36 pin connection
DOP-TRTR NPN open collector output module, terminal block connection

Note: When ordering two (2) plug-in modules, one must be with Terminal Block Connection and the other with 36-Pin Connector.
For example; DOP-FVCR and DOP-TRTR

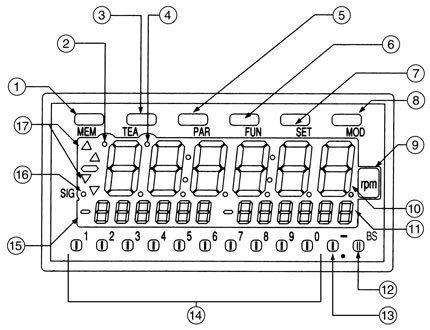

Display

display
Designation Function
1 Memory Button Activates memory function
2 Memory Indicator ON when memory function is activated
3 Teaching Button Quick scaling setup mode
4 Teaching Indicator ON when in quick scaling setup mode
5 Parameter Button For parameter setup
6 Function Button For function setup
7 Set Button Sets parameter’s functions
8 Mode Button Mode selection
9 Unit Decal Area for decal
10 Primary Display Displays units of measurement
11 Secondary Display B Secondary display
12 Backspace Button Backspace for corrections
13 Negative Sign/Decimal Point Button Negative sign setting/decimal point shift
14 Numeric Button For various functions
15 Secondary Display A Secondary display
16 Signal Indicator Blinking when signal is present
17 Comparator Indicator Indicates comparator condition

Specifications

Measuring Range10 - 99,999 rpm (at 1 p/r)
0.2 - 30,000 rpm (at 60 p/r)
Display RangeTachometer/Rate Meter: 0 - 999999 with selectable decimal point
Elapsed Time: 0:00:00 - 9:59:59 or 0.00 - 999.99 sec.
Process Time: 0:00:00 - 0:59:59 or 0.00 - 999.99 sec.
ScalableYes (with outputs, see modules)
AccuracyTachometer/Rate Meter & Elapsed Time: ± 0.008 % ± 1 digit
Process Time: ± 0.008 % ± 1 digit
Display Update Time0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec.
Input No. of P/R1 to 9,999 (programmable)
Input Signal CharacteristicsNPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz - Sine wave input (magnetic pickup): max. frequency 10 kHz
Sensor Power Supply12 VDC (150 mA)
Power Requirement85 - 264 VAC (50/60 Hz) Optional (9 - 35 VDC at 1 W also available)
Ambient Temperature32° - 113° F (0 - 45° C)
Dimensions5.27" x 3.78" x 1.89" (134 x 96 x 48 mm)
Product Weight0.66 lb (300 g)
Package Weight0.95 lb (430 g)
Warranty2 Years
Included AccessoriesMounting adapters & screws, decal sheet
