ODT

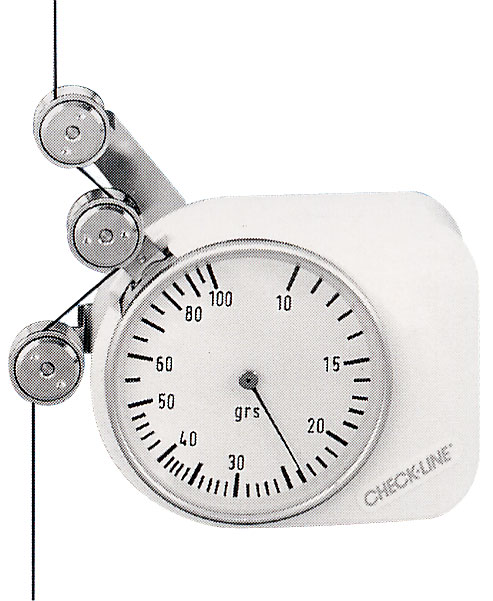

Stationary Tension Meter |
The CHECK-LINE model ODT Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continuous tension measurement.
Threaded mounting holes are provided on the back side and edge of the housing. |
 Easy-to-read analog scale
| | Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 3000 m/min |
| | Magnetic damping minimizes tensions fluctuations
| | Adjustable maximum tension detector can provide a low voltage signal when tensions exceed user-set limit
|
|
| Model |
Range |
| ODT-10 |
2-10 grams |
| ODT-20 |
2-20 grams |
| ODT-30 |
3-30 grams |
| ODT-50 |
5-50 grams |
| ODT-70 |
10-70 grams |
| ODT-100 |
10-100 grams |
| ODT-200 |
20-200 grams |
| ODT-300 |
20-300 grams |
| ODT-400 |
40-400 grams |
| ODT-500 |
50-500 grams |
| ODT-800 |
20-800 grams |
| ODT-1K |
50-1000 grams | | |
| NOTE: Add "-X" for optional peak Tension detector, ie: ODT-100-X |
| |
| Accuracy |
±1% Full Scale (FS) or ±1 Graduation mark |
| Scale Diameter |
58mm |
| Roller Material |
Chromed Steel - Standard
Hard-coated aluminum (K) - Optional |
| Housing Material |
Die-cast aluminum |
| Weight |
0.7 pounds (300 g) |

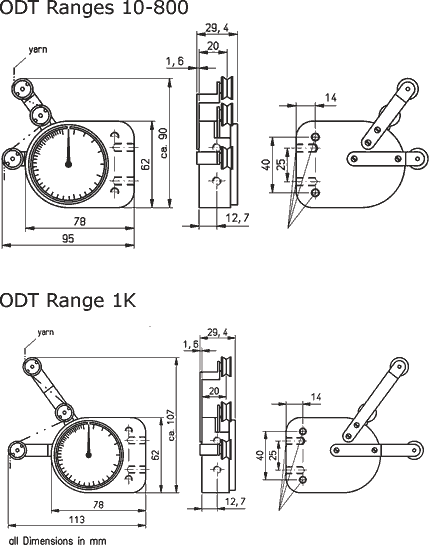

| Dimensions |
3.1" x 2.5" x 1.1" (78 x 62 x 27mm) |
|
|
