KV-11
Hand Wheel Test Stand |
The KV-11 Hand Wheel Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The standard model KV-11S includes a highly accurate digital distance meter. Both models accept any force gauge with a maximum capacity of 11 lbf (5 kgf). |
 For compression tests only |
| | Reduced backlash and fine movement for highly precise measurements |
|
| Capacity |
11 lbf (5 kgf) |
| Stroke |
2.75" (69.85 mm) |
| Travel Rate |
0.4" (1 mm) per revolution of hand wheel |

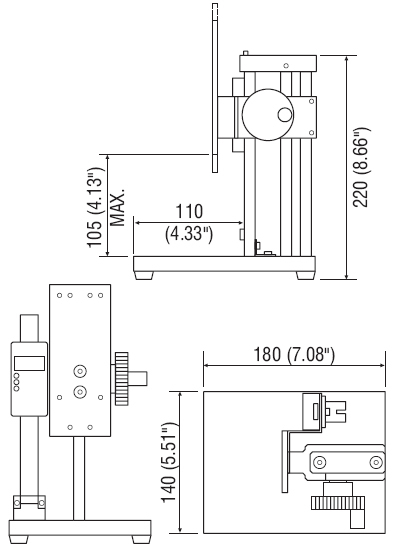

| Dimensions |
Refer to dimensions above |
| Compatible Gauges |
Z2, ZP and DS2 |
| Warranty |
2 years |
| Display |
Push button for inch/mm, zero set and on/off |
| Resolution |
0.0005"/0.01 mm |
| Accuracy |
0.1% of reading or 0.005"/0.1mm, whichever is greater |
|
|
|
