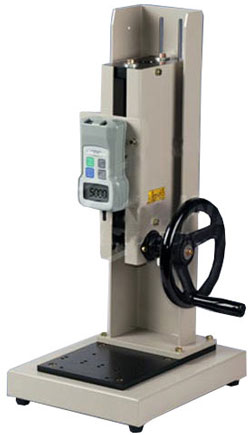

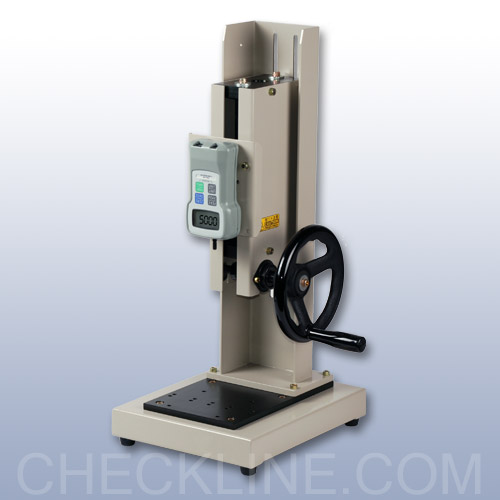

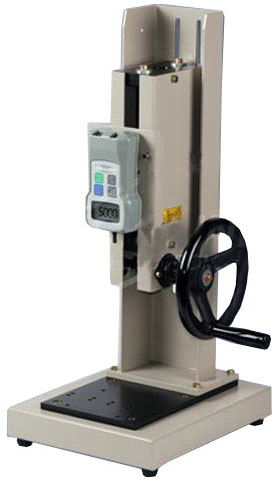

FGS-100H

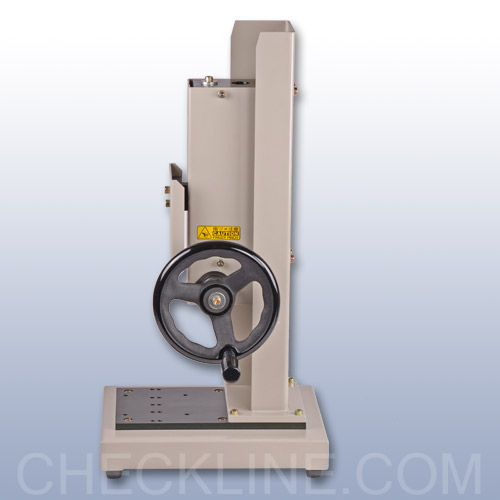

Manual Hand Wheel Operated Test Stand |
The FGS-100H precision hand wheel manual test stand is ideal for obtaining accurate, consistent results for both tension and compression testing up to 110lbs.
*Force Gauge Not Included |

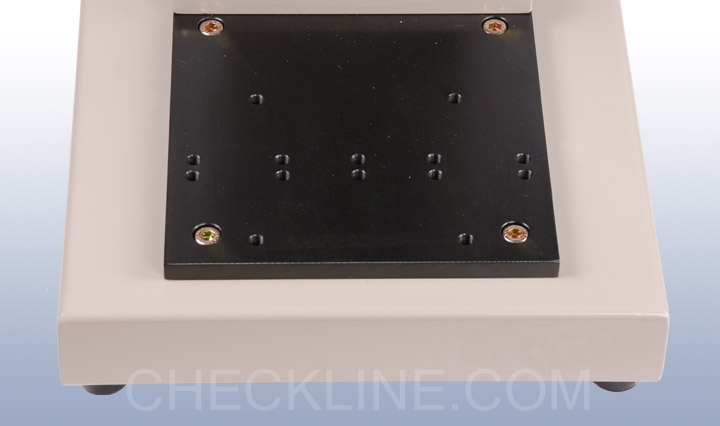

 Versatile bottom mounting plate accepts standard and custom-made attachments | | Precision gear movements |

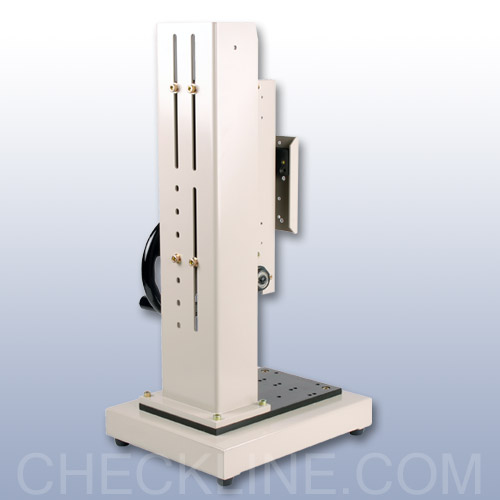

| | Sturdy, all steel construction | | Constant Linear Motion |
|
|
FGE - FGV
Hand-held Digital Force Gauge |  |
Includes Traceable Calibration Certificate Accuracy ± 0.2% User-selected units of Pounds, Kilograms or Newtons | | Click image for more info | | ___________________________________________ |
|
FGV-XY
Digital Force Gauge with USB Output |  |
Accuracy of ±0.2%
providing superb repeatability USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility | | Click image for more info
|
| Capacity |
110 lbs (50 kg) |
| Stroke |
5.9" (150 mm) |
| Travel Rate |
3 mm/wheel turn (approximately) |
| Dimensions |
Refer to dimensions above |
| Weight |
approx. 33 lb (15 kg) |
| Compatible Gauges |
FGE / FGV, FGV-XY |
| Warranty |
1 year |
| *Note |

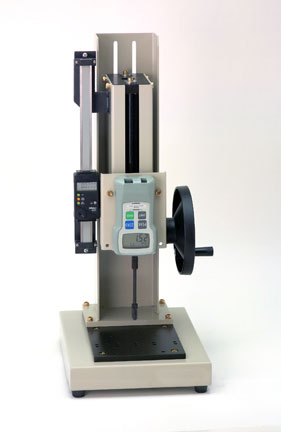

Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second |
|
|
