ES30
Precision Hand Wheel Test Stand |

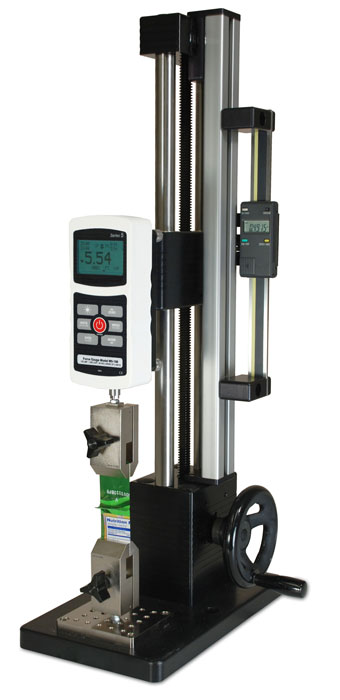

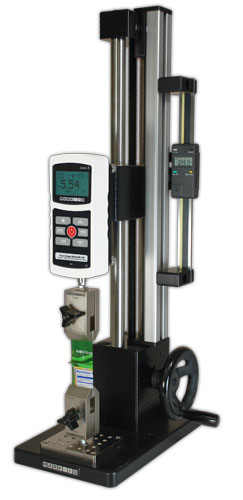

 The ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force. Use the ES30 with a MG series force gauge and grips to create a complete testing solution.
Upgradeable to a motorized test stand by installing a motor drive kit.
*Force Gauge and Grips Not Included |
 200lb Capacity | | Precision hand wheel operation | | Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting |

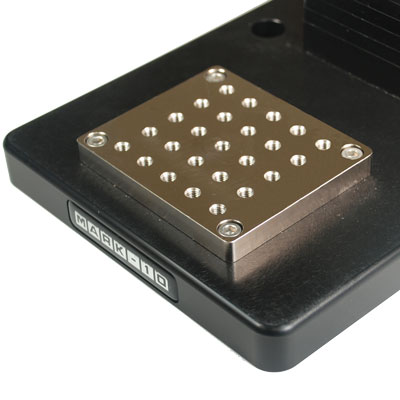

| | 3 Year Warranty | | Removable base plate with 25 #10-32 threaded holes for fixture mounting | | Upgradeable to a motorized test stand by installing a motor drive kit. |
|
|
BG
Digital Force Gauge |  |
RS-232, Mitutoyo and analog outputs Selectable units of measurement | | Click image for more info | | ___________________________________________ |
|
MG
Economical Digital Force Gauge - Push Pull Gauge |  |
User-selected units of Pounds, Kilograms or Newtons 3 Year Warranty | | Click image for more info | | ___________________________________________ |
|
ESM
Motorized Test Stand |  |
Speed range: 0.5-13 in/min (13-330 mm/min). Custom speed ranges available, Inquire No speed variation with load Maximum travel: 13" (330 mm) | | Click image for more info
|
| Capacity |
200 lb, 100 Kg, 1000 N |
| Stroke |
13" (330 mm) |
| Travel rate |
0.05" (1.37 mm)/hand wheel revolution |
| Dimensions |

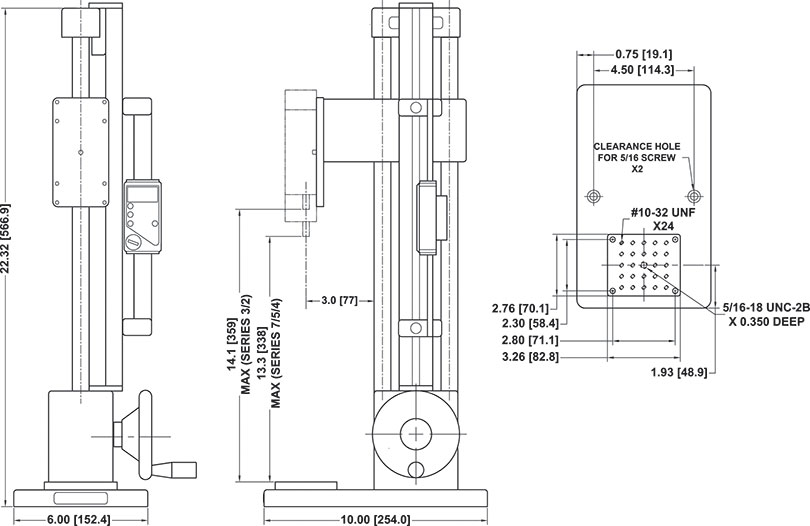

Refer to dimensions above |
| Weight |
17 lbs (8 Kg) |
| Compatible Gauges |
BG and MG |
| Warranty |
3 years |
|
|
