View Larger Image
|
|

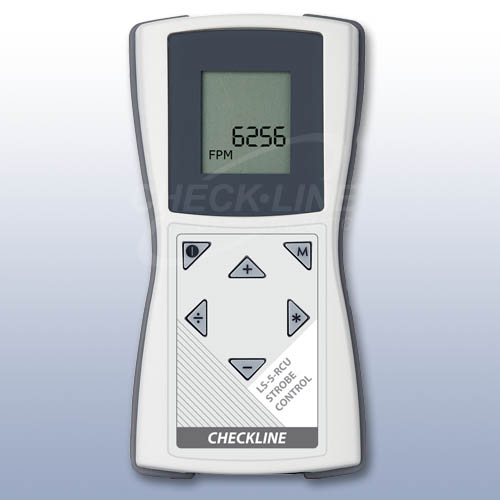

LS-5-RCU
Remote Control Unit |
|
|
LS-5-12000
Compact Linear Stroboscope |  |
 Unmatched brightness, sharpness and uniformity from any strobe in its class
| | Click image for more info | | ___________________________________________ |
|
LS-6000
Linear Stroboscope |  |
Super-bright Xenon Tube and highly-polished hammertone reflector combines to generate industry-leading light intensity and uniformity | | Click image for more info
|

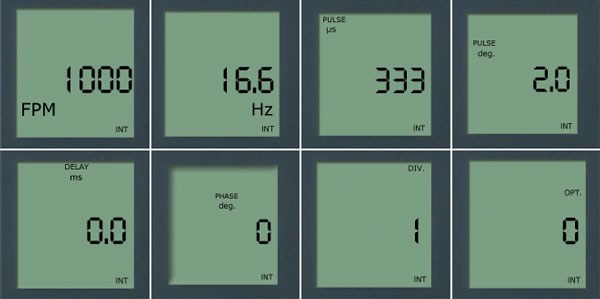

| Frequency |
30.0 - 999.9 FPM ± 0.1
1,000 - 600,000 FPM ±1
0.5 - 999.9 Hz ± 0.1
1,000 - 10,000 HZ ± 1 |
| Pulse Width |
absolute (± 1) and
relative (± 1°) adjustable |
| Phase Shift |
0 - 359° ±1° |
| Delay |
0.0 - 2,000.0 ms ± 0.1 ms |
| Divider |
1 - 255 ± 1 |
| Power Supply |
10 - 32 V DC, with reverse polarity protection |
| Current intake |
<50 mA |
| Trigger Input |
|
| Low Level |
< 1 V |
| Level |
3 - 32 V, NPN + PNP |
| Minimum pulse Length |
50 µs |
| Reverse voltage protection |
Yes |
| Trigger Output |
|
| Principle |
Short circuit and overvoltage proof transistor output to the optocoupler control, non-isolated |
| Pulse Length |
adjustable |
| Housing Material |
ABS / EPDM |
| Dimensions |
162x82x40 mm / 6.4x3.3x1.6 inch |
| Weight |
230 g |
| Ambient Temperature |
0 - 50 °C (32 - 122 °F) |
|
|
