FG-M6WTER100
Wire Terminal Test Fixture

Capacity: 100 lb / 50 Kg / 500 N

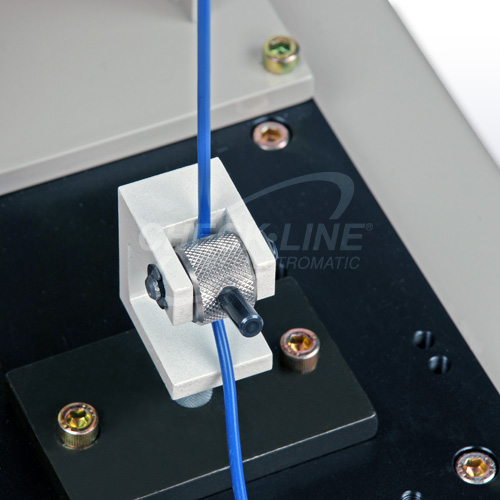

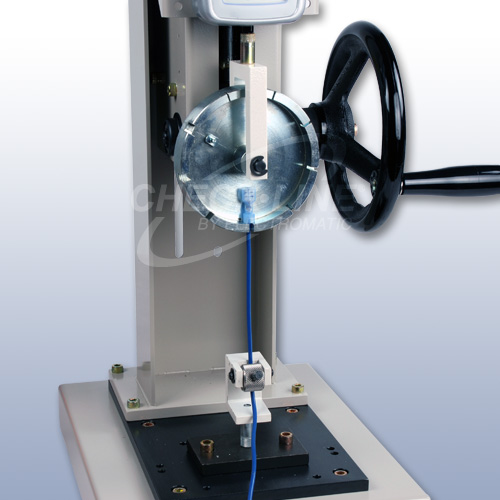

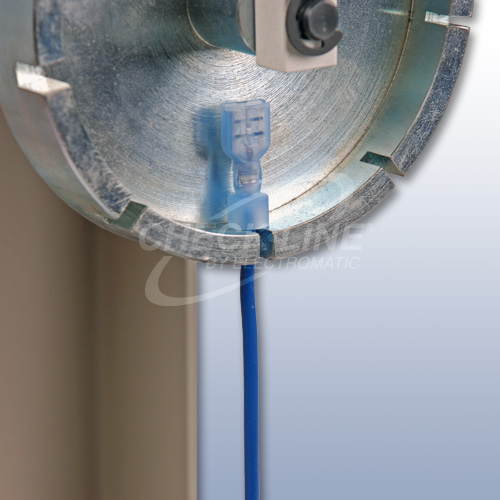

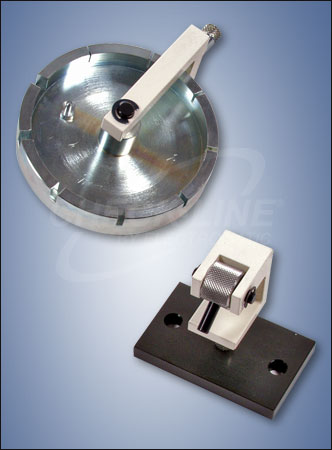

Designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end.

Max wire diameter 0.160" / 4mm (limited by bottom cam grip).



 Photo Gallery - click any photo to enlarge


 Downloads

manual  Dimensional Drawing  Click here to download PDF


 Buy Now

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
FG-M6WTER100 $485.00 Wire Terminal Test FixtureIn Stock
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
