GP-60
General Purpose Grip

As of September 2009 the GP-60 is no longer available. We recommend the G1015 as a replacement, click for more info

Width: 60mm / 2.36"
Max Sample Thickness: 4mm / 0.16"

The GP-60 general purpose grip is designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 220 lb of force. Use them with a force gauge and a test stand to create a complete testing system



line
reddot Features
line

line

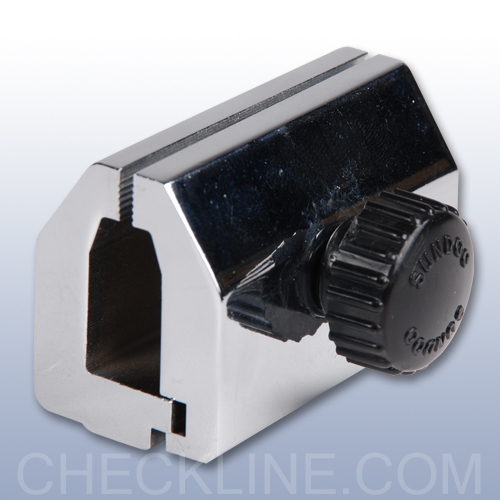

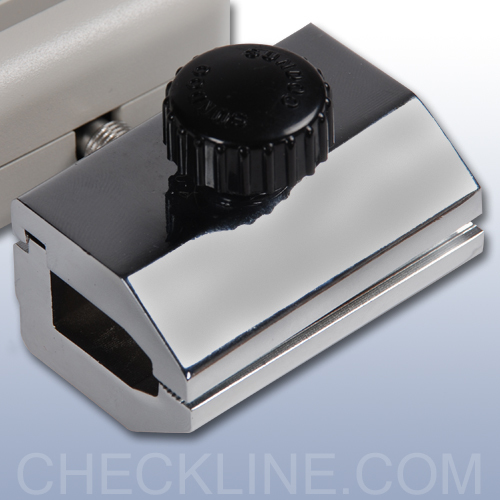

reddot Photo Gallery - click any photo to enlarge
line




line

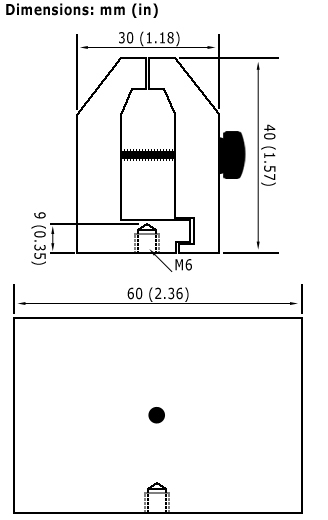

reddot Dimensions
line dimensions

line
reddot Specifications
line
Capacity 220 lbs.
Width 60mm / 2.36"
Maximum Sample Thickness 4mm / 0.16"
Thread Size M6 Female



 ELECTROMATIC Equipment Co., Inc. 600 Oakland Ave Cedarhurst, NY 11516 - USA TEL (800) 645-4330 (516) 295-4300 FAX (516) 295-4399
