GP-20HD
Heavy Duty Grip

Width: 20mm / 0.79"
Max Sample Thickness: 4mm / 0.16"

The GP-20HD heavy duty grip is designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 220 lb of force. Use them with a force gauge and a test stand to create a complete testing system



line
reddot Features
line

line

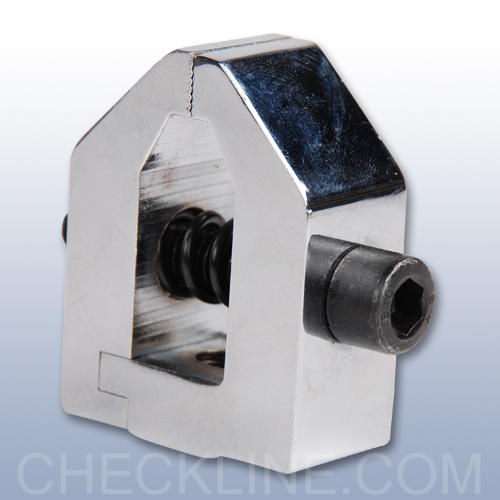

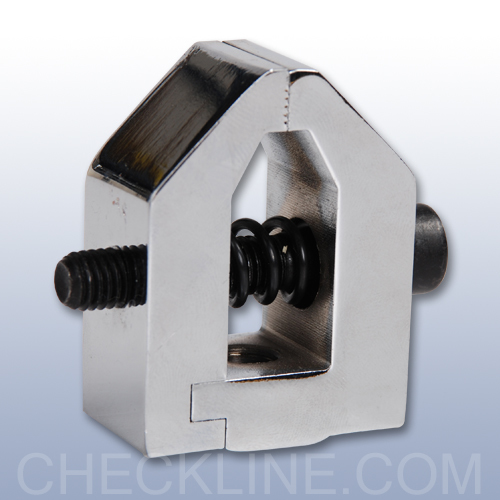

reddot Photo Gallery - click any photo to enlarge
line




line

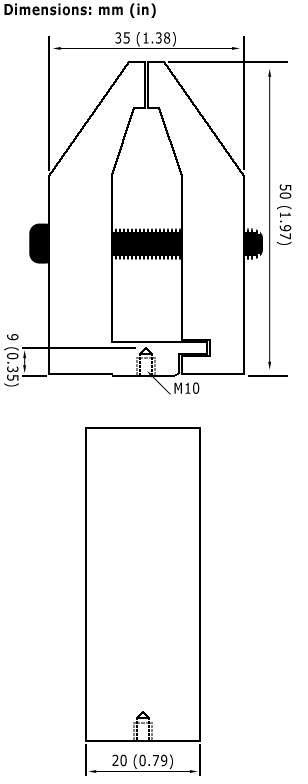

reddot Dimensions
line dimensions

line
reddot Specifications
line
Capacity 220 lbs.
Width 20mm / 0.79"
Maximum Sample Thickness 4mm / 0.16"
Thread Size M10 Female

line
reddot Buy Now
line

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
GP-20HD $125.00 Heavy Duty GripIn Stock
