ETMB - ETMPB
Limited Access Digital Tension Meter |
3 Ranges
0.5 - 100, 1 - 200, 1 - 500 (g or cN)

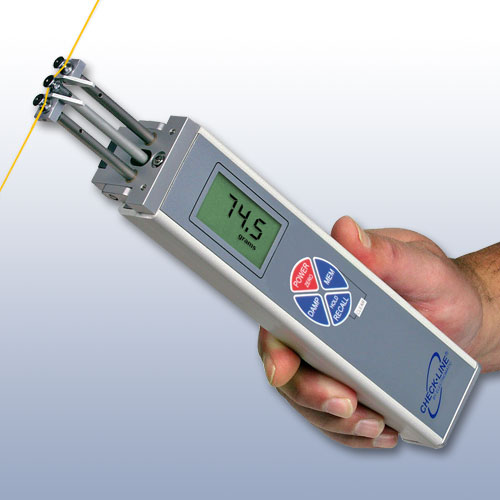

Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.

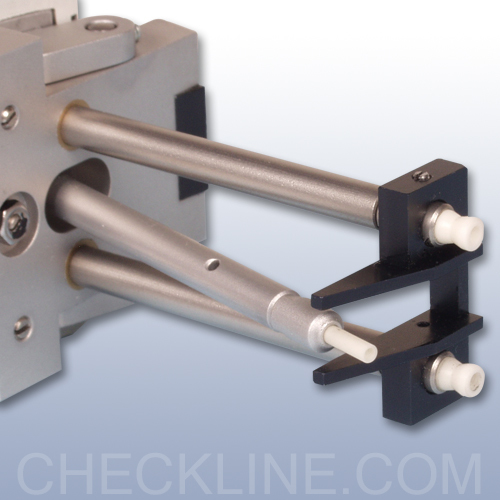

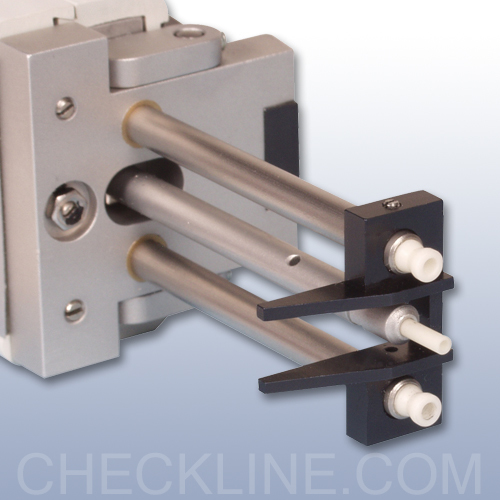

ETMB models feature miniature, high speed rollers for filament speeds up to 2000 m/min. ETMPB models features non-rotating, ceramic pins for speeds to 6000 m/min.
Reversible display for right or left-hand operation
|
 User Selectable Units Grams or Centinewtons | | New filament guide for easy acquisition of material | | Adjustable damping for easier readings when tension fluctuates |
| | Backlit LCD Display | | Stores AVG, MIN, MAX and PEAK tension values which can be recalled in the display |
|
| Model |
Range | Resolution | Rollers or Pins |
| ETMB-100 |
0.5-100.0 | 0.1 | Rollers |
| ETMB-200 |
1-200 | 1 | Rollers |
| ETMB-500 |
1-500 | 1 | Rollers |
| ETMPB-100 |
0.5-100.0 | 0.1 | Ceramic Pins |
| ETMPB-200 |
1-200 | 1 | Ceramic Pins |
| ETMPB-500 |
1-500 | 1 | Ceramic Pins | | |
| Selectable Units: Grams or Centinewtons
Outer Roller Spacing 24mm
Standard Calibration Material 0.20 mm Ø Polyamide Monofilament |
| |
 Standard Guide Roller Nr. R10017
Aluminium hard chromed for line speeds up to max. 2000 m/min Reorder P/N R50017 |

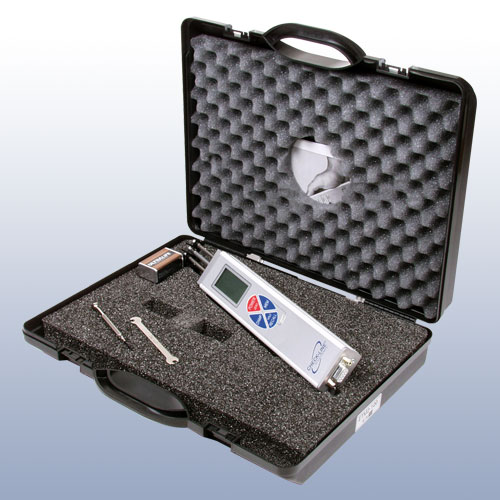

| | | | The ETMB / ETMPB is supplied as a complete kit including tension meter, long life 9V lithium battery and instruction manual in a foam-fitted plastic carrying case |
 |
| Accuracy |
±1 % full scale ±1 digit or better
(typical ±0.5 % full scale) |
| Factory Calibration Material |
0.20 mm Ø Polyamid Monofilament |
| Minimum Access Space Required |
3/4" x 1" (20 x 26mm) |
| Guide Roller / Pin Material |
Rollers, chrome-plated steel, std : 2000 m/min
Ceramic pins, optional : 6000 m/min |
| Measuring Principle |
Strain-gauge bridge |
| Maximum Sensing-Roller Displacement |
0.5mm |
| Scanning Frequency |
100 / sec., except 40/sec. in PEAK mode |
| Display Update |
0.5 sec. (2 times per second) |
| Thermal Drift |
0.25% full scale per degree C |
| Natural Frequency |
250 Hz |
| Over Range |
10% FS, without accuracy guarantee |
| Overload Protection |
200% |
| Temperature Limits |
40-115° F (5-45° C) |
| Automatic Zero |
± 20% of range |
| Rel. Humidity Limit |
95% |
| Battery/Life |
9 volt, long-life lithium (included), non-rechargeable / Approx. 80 hrs. (Note: A standard 9V alkaline battery can be used as a backup, but with greatly reduced life.) |
| Low Battery Voltage Indicator |
LO BAT, or equivalent display |
| Weight |
14 oz. (400 g) |
| Dimensions |
13" x 1-3/4" x 1" (330 x 45 x 25mm) |
| Complete Kit |
Tension Meter, one long-life 9V lithium battery and instructions, all supplied in a foam-fitted carrying case. |
|
|
