RX-SP Slim Probe Durometers

Made in USA
Slim Probe Anaglo Durometer, Style B with 3/16 Diameter foot
Click images to enlarge.

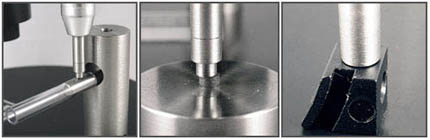

Slim Probe Durometers are designed for measuring hardness in hard to reach or irregular areas. Analog and digital models are available. The slim probe attachment can be modified to fit your specific needs or applications.

Features

  • Includes NIST-Traceable Calibration Certificate
  • Full 360 degree sweep
  • One year warranty
  • Minimum Sample Thickness -Type A = 6 mm (1/4")
    -Type M = 1.25 mm (0.050")
  • Can be customized for your application

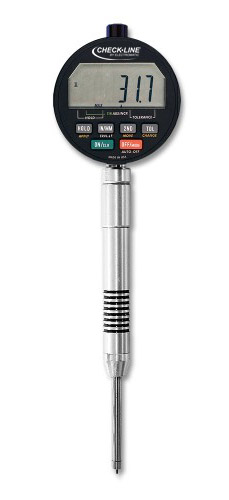

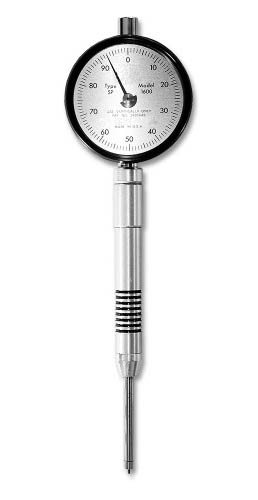

Slim Probe Durometer Style B

3/16" (0.18) / 4.76mm Diameter Foot Durometer

Size:
Can be modified (probe length and diameter) to fit your needs.

Typical Use:
Used for checking hard-to-reach areas. This slim probe model is also available in the Type M durometer with a 1/8" diameter foot - great for checking thin (as thin as .050") hard to reach areas.

Note: The Slim Probe Durometer Style B Type M Conforms to ASSTM D 2240.

Features:

  • Customized probe length and diameter to fit your needs
  • Available in most durometer types
  • Precision construction
  • Custom Carrying case

Style B Dimensions

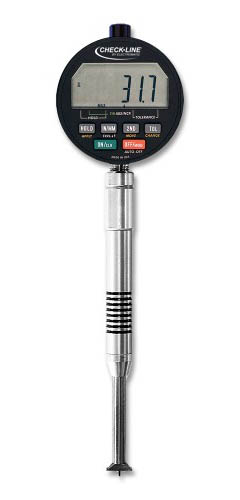

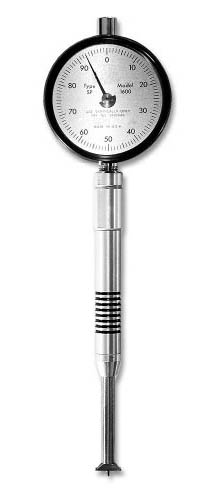

Slim Probe Durometer Style A

Narrow Foot Durometer

Size:
Can be modified (probe length) to fit your needs.

Typical Use:
Used for checking the hardness of narrow or irregular shapes - The foot size is .110 x .50".

Features:

  • Customized probe length to fit your needs
  • Available in most durometer types
  • Precision construction
  • Custom Carrying case

Style A Dimensions

Buy Now

Item Description Price
ANALOG
Slim Probe Analog Durometer, Style A with .110 x .50". foot, Shore A
$1,058.00
Slim Probe Analog Durometer, Style A with .110 x .50". foot, Shore D
$1,058.00
Slim Probe Analog Durometer, Style B with 3/16 Diameter foot, Shore A
$943.00
Slim Probe Analog Durometer, Style B with 3/16 Diameter foot, Shore D
$943.00
DIGITAL
Slim Probe Digital Durometer, Style A with .110 x .50". foot, Shore A
$1,720.00
Slim Probe Digital Durometer, Style A with .110 x .50". foot, Shore D
$1,720.00
Slim Probe Digital Durometer, Style B with 3/16 Diameter foot, Shore A
$1,605.00
Slim Probe Digital Durometer, Style B with 3/16 Diameter foot, Shore D
$1,605.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
Specify length of extension when ordering.

Other Scales available (O, OO, DO, Asker C) contact us for pricing.
