RX-3000 Max Hand Durometer

Made in USA

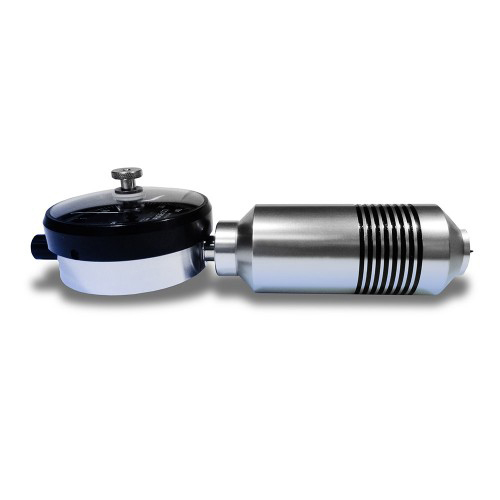

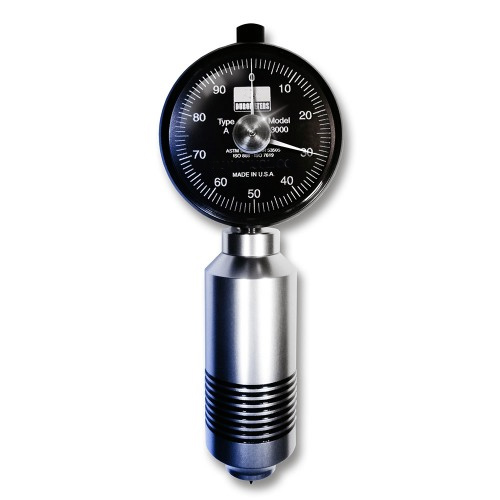

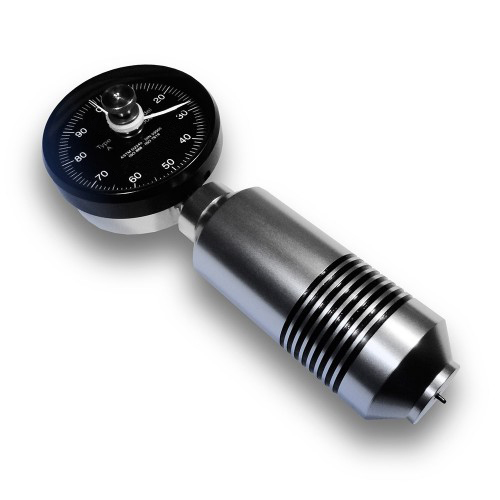

RX-3000 Rex Durometer
Click images to enlarge.
The RX-3000 Max Hand durometer has a max hand and an active hand for observing the creep characteristics of a specimen. What makes the RX-3000 unique is the magnetic-drag maximum reset mechanism. The user simply rotates the reset knob on the front of the gauge to clear the previous reading. The simplicity of the reset mechanism ensures a lifetime of use.

Features

  • Large Diameter Grip
  • Holds Reading Until Reset
  • Reads Maximum and Creep
  • Jeweled Movement
  • One Year Warranty
  • Includes NIST Calibration Certificate
  • 18mm Diameter Presser Foot
  • High Contrast Low Glare Dial
  • Cost Effective, Hand Operated
  • Custom Made Carrying Case
  • ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619.

Related Products

AD-100 Durometer
Click image for more info
Durometer Tester
- 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
RX-2000 ASTM D-2240 Durometer
Click image for more info
Max-Hand Durometer
- Includes NIST-Traceable Calibration Certificate
- Reads Maximum and Creep
- Holds Reading Until Reset
DD-100 Digital Durometer
Click image for more info
Digital Durometer Tester
- 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
- Holds Peak reading until reset
- 0.1 Unit Resolution
tbkc-a durometer test block kit
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Complete Kit

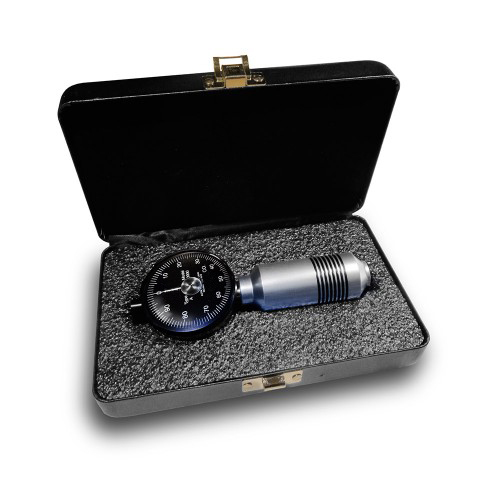

The RX-3000 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.

Specifications

Measuring Range0 - 100 units
Accuracy±1 durometer unit
Dimensions2.25" x 6.125"H
Weight11 oz.

Buy Now

Item Description Price
RX-3000-A Max Hand Durometer Type A
$680.00
RX-3000-D Max Hand Durometer Type D
$680.00
Accessories
Type A Test Block Kit with NIST traceable certificate, 7 Color Coded Blocks - TBK-A
$285.00
Type D Test Block Kit with NIST traceable certificate, 3 Color Coded Blocks - TBK-D
$205.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
