MX-1
Ultrasonic Wall Thickness Gauge |
The MX-1 will hold a single velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work.
The tool's backlit display is easy to read, even in dim light conditions, and the unit operates for up to 200 hours on a single set of AA batteries.
The MX-1 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.

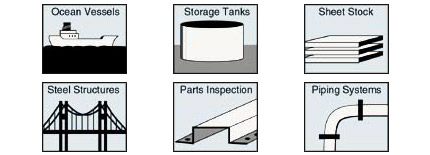

Applications:
|
Corrosion & Pitting
Tube & Pipe
Tanks
|
Boilers
Glass
Variety of Applications
|
|
 Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions. | | Measurements displayed in inches, inches/microsecond, millimeters, and meters/second. |
| | Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units. | | Four readings per second for single point measurements. |
|
| | | | The MX-1 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
|
NIST-Traceable Steel Test Block
3 Sizes Available |  |
Precision Machined and Finished Includes NIST Report and Test Data | | Click image for more info | | ___________________________________________ |
|
Uncertified Steel Test Block
For Ultrasonic Gauges |  |
For convenient confirmation of thickness gauge calibration | | Click image for more info | | ___________________________________________ |
|
TICC-M
Protective Holder for Ultrasonic Gauges |  |
Constructed from heavy duty Cordura Nylon | | Click image for more info | | ___________________________________________ |
|
CF12
Coupling Fluid |  |
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | Click image for more info | | ___________________________________________ |
|
TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  |
50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors. | | Click image for more info | | ___________________________________________ |
|
V-Block
Transducer Holder |  |
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | Click image for more info
|
| Measuring Range |
0.025 to 19.999 inches
0.63 to 199.99 millimeters |
| Resolution |
0.001 inch
0.01 millimeter |
| Velocity Range |
.0492 to .3937 in/µs
1250 to 10,000 meters/sec |
| Dimensions |
2.5 W x 4.75 H x 1.25 D inches |
| Range in Steel |
0.040-6.000" (1.00-150.0 mm) with supplied probe. Other probes available. |
| Resolution |
.001" (0.01 mm) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Probe |
1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable |
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. |
| Battery Type |
Two 1.5V alkaline or 1.2V NiCad AA cells. |
| Battery Life |
Typically operates for 200 hours on alkaline and 130 hours on NiCad. |
| Weight |
10 ounces (283 g) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
