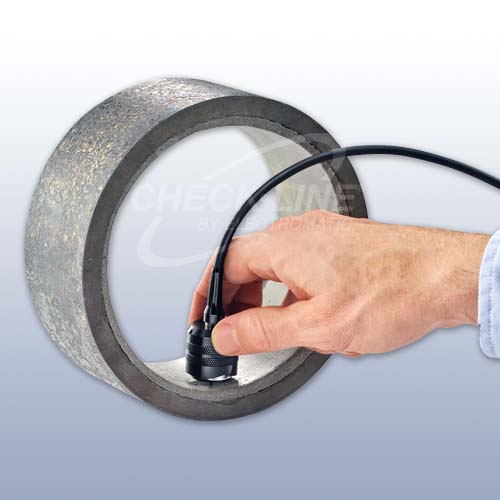

The 6000TCX Series Extra Thick Coating Thickness Gauge is a versatile, rugged tester using magnetic and eddy current principles to measure coating thickness on ferrous or non-ferrous metals, accurately and quickly. If measurement on both Fe and NFe is required a second optional probe can be ordered separately and swapped when needed.

For typical paint and coating applications for a thickness range of 0-500 mils (0-13 mm) applied to Ferrous substrates models include 6000-FKS1, 6000-FKS2 and 6000-FKS3. Models for use on Non-Ferrous substrates include 6000-NKS1, 6000-NKS2 and 6000-NKS3.

All models are offered in three possible configurations; BASIC (1), STANDARD (2) and MEMORY (3) permitting users to select the feature set most suitable for their application. Refer to table below summarizing the different features included with each type "1", "2" or "3".


Features

Easy-To-Use

• Ready to measure—no calibration adjustment required for most applications
• Enhanced one-handed menu navigation
• Flashing display—ideal in a noisy environment
• RESET feature instantly restores factory settings

• Solvent, acid, oil, water and dust resistant - weatherproof
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster with belt clip
• Two year warranty on gage body AND probe

• Certificate of Calibration showing traceability to NIST included (Long Form)
• Built-in temperature compensation ensures measurement accuracy
• Hi-RES mode increases displayed resolution for use on applications that require greater precision
• Conforms to national and international standards including ISO and ASTM

• Fully interchangeable probes are compatible with ALL gage bodies
• Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
• Selectable display languages
• Hi Contrast backlit display for bright or dark environments
• Flip display enables right-side-up viewing
• Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
• Uses alkaline or rechargeable batteries (built-in charger)

• Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• FAST mode - faster measurement speed for quick inspection
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
• USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
• Every stored measurement is date and time stamped
• Software updates via web keep your gage current
• Connects to PosiTector.net
